Arrangement and assignment of cable and plug connectors - doors - GF00.19-P-1000-21MCU

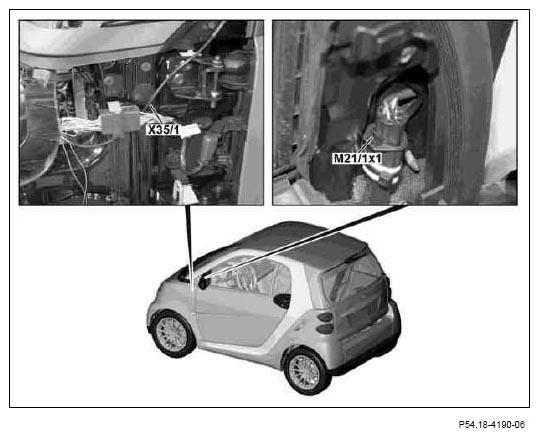

Fig 1: Identifying Left Electrically Adjustable And Heated Exterior Mirror Connector And Left Door Separation Point

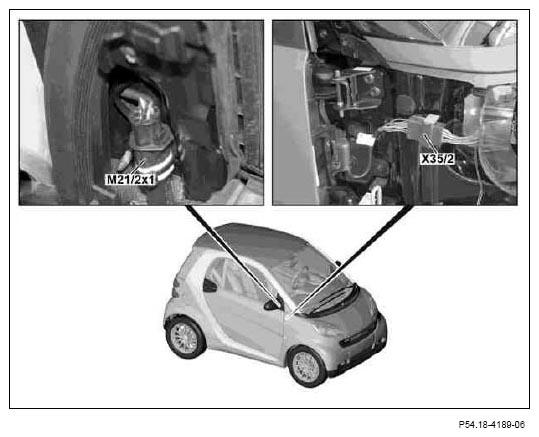

Fig 2: Identifying Right Electrically Adjustable And Heated Exterior Mirror Connector And Right Door Separation Point
| Code | Designation | Cable colors | Cable colors | Notes |
|---|---|---|---|---|
| M21/1x1 | Left electrically adjustable and heated exterior mirror connector | 1 |
||
| 2 |
||||
| 3 |
||||
| 4 |
||||
| 5 |
||||
| M21/2x1 | Right electrically adjustable and heated exterior mirror connector | 1 |
||
| 2 |
||||
| 3 |
||||
| 4 |
||||
| 5 |
||||
| X35/1 | Left door separation point | |||
| BN |
A1 |
|||
| GYYE |
A2 |
|||
| YEWH |
A3 |
|||
| PK |
A4 |
|||
| WHGN |
A5 |
|||
| GN |
A6 |
|||
| BNGN |
A7 |
|||
| WH |
B1 |
|||
| BKYE |
B2 |
|||
| GYBU |
B3 |
|||
| PKBU |
B4 |
|||
| PKWH |
B5 |
|||
| WHYE |
B7 |
|||
| YE |
B8 |
|||
| BKBU |
C1 |
|||
| BKGY |
C2 |
|||
| BU |
C3 |
|||
| VT |
C4 |
|||
| BKVT |
C5 |
|||
| X35/2 | Right door separation point | |||
| BN |
A1 |
|||
| GYYE |
A2 |
|||
| YEBK |
A3 |
|||
| PK |
A4 |
|||
| WHGN |
A5 |
|||
| orange |
A6 |
|||
| BNOG |
A7 |
|||
| WHBK |
B1 |
|||
| GYBU |
B3 |
|||
| VTBU |
B4 |
|||
| VTWH |
B5 |
|||
| YEBK |
B8 |
|||
| BKBU |
C1 |
|||
| BU |
C3 |
|||
| VT |
C4 |
|||
| BKVT |
C5 |
