Arrangement and assignment of cable and plug connections - left footwell - GF00.19-P-1000-32MCU

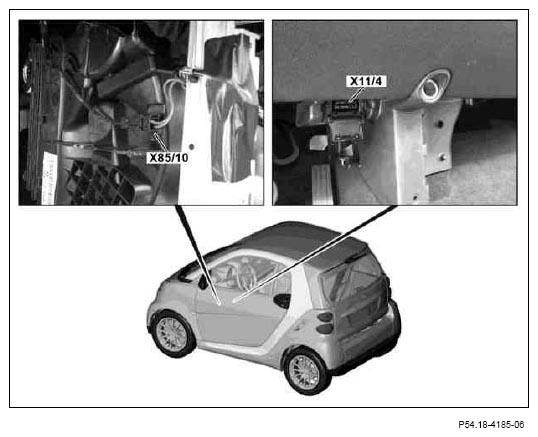

Fig 1: Locating Cable & Plug Connections - Left Footwell

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Code	Designation	Cable colors		Cable colors	Notes
X11/4	Data link connector
			4	BN
			5	BN
			6	GNWH
			8	BKYE
			14	gn
			16	RDWH
X85/10	Heating or air conditioning connector
		BK	1	BN
		RDBK	4	RDGY
