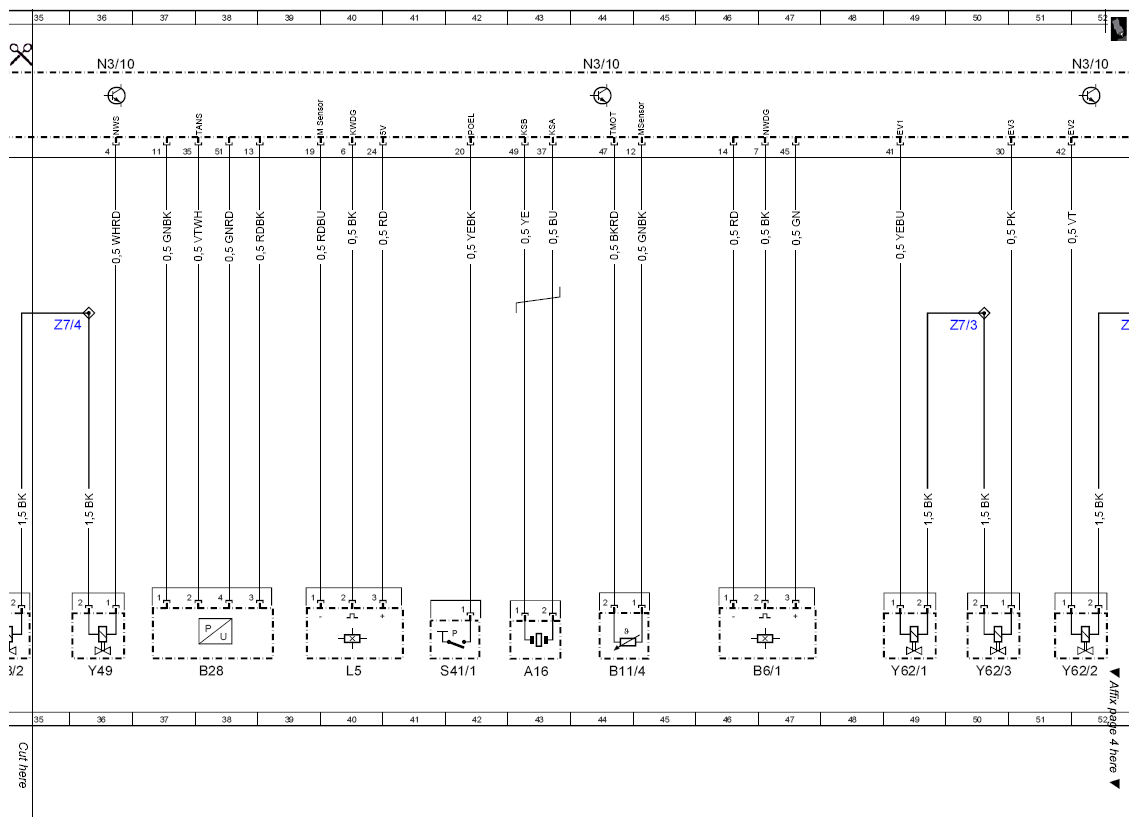

| A16 |
Knock sensor |
43L |
| A45 |
Fanfare horns and airbag clock spring contact |
27L |
| A9 |
Refrigerant compressor |
74L |
| B11/4 |
Coolant temperature sensor |
44L |
| B28 |
Intake manifold pressure sensor |
38L |
| B37 |
Accelerator pedal sensor |
14L |
| B4/3 |
Fuel tank pressure sensor |
17L |
| B6/1 |
Camshaft Hall sensor |
47L |
| F36 |
Secondary air injection pump fuse |
23H |
| G1 |
Battery |
24L |
| G2 |
Alternator |
75L |
| G3/1 |
O2 sensor downstream of TWC [KAT] |
65L |
| G3/1x1 |
O2 sensor downstream of TWC [KAT] connector |
|
| G3/2 |
O2 sensor upstream of TWC [KAT] |
62L |
| G3/2x1 |
O2 sensor upstream of TWC [KAT] connector |
|

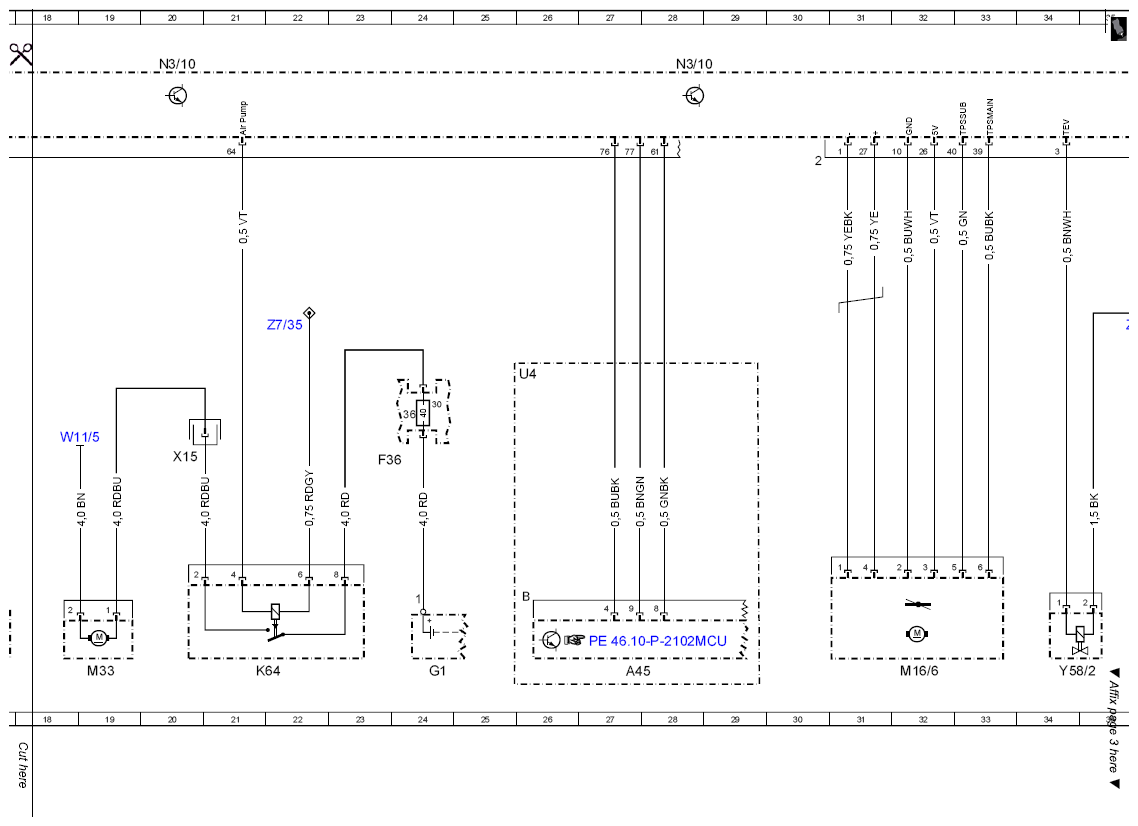

| K64 |
Secondary air injection pump relay |
21L |
| L5 |
Crankshaft position sensor |
40L |
| M1 |
Starter |
77L |
| M16/6 |
Throttle valve actuator |
32L |
| M3/3 |
Fuel pump with fuel level sensor |
10L |
| M3/3b1 |
Fuel level sensor |
12L |
| M33 |
Secondary air injection pump |
19L |

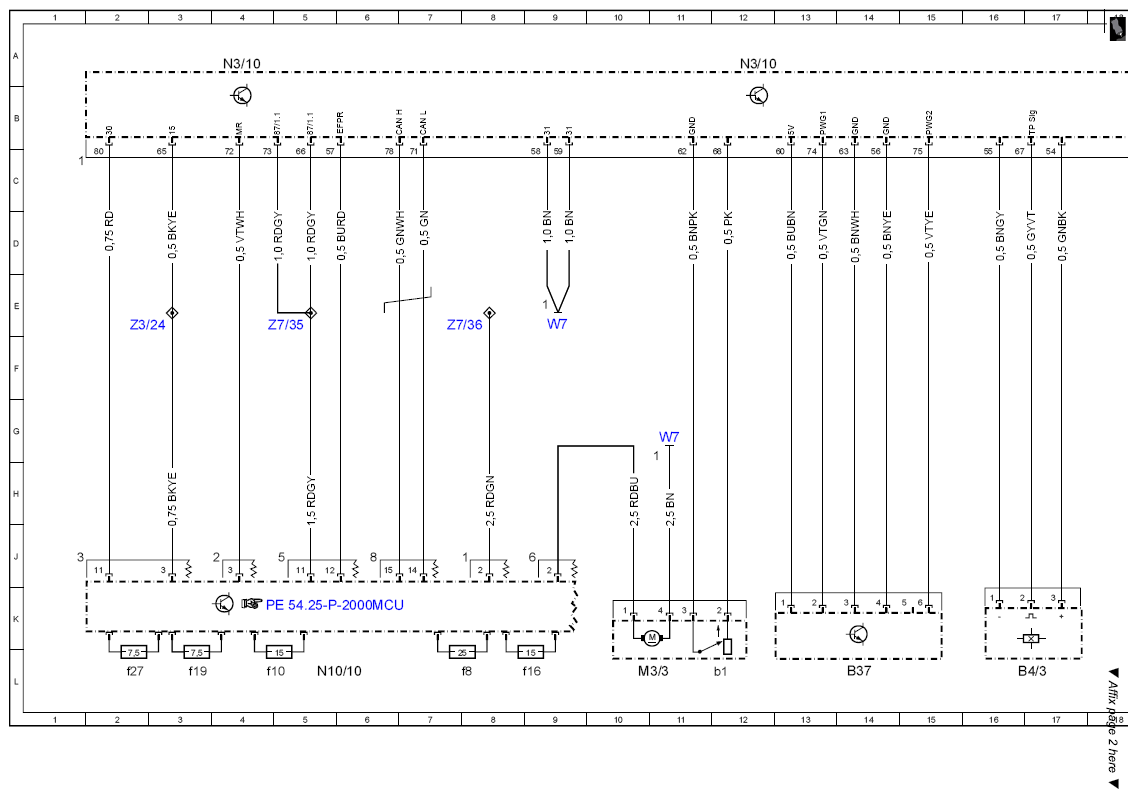

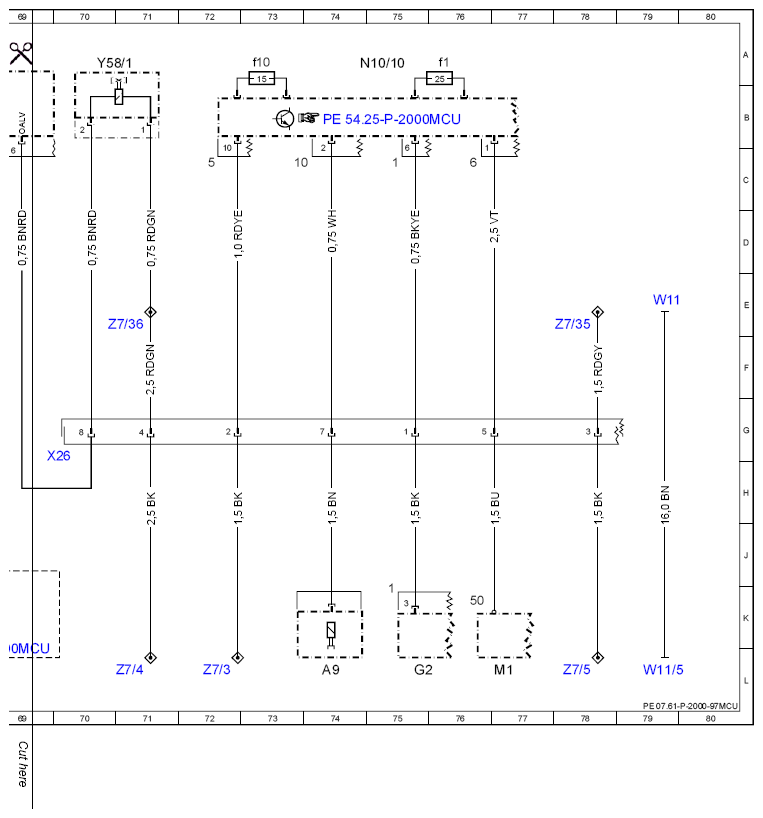

| N10/10 |
SAM control unit |
75A |
| N10/10 |
SAM control unit |
5L |
| N10/10f1 |
Fuse 1 |
76A |
| N10/10f10 |
Fuse 10 |
73A |
| N10/10f10 |
Fuse 10 |
5L |
| N10/10f16 |
Fuse 16 |
9L |
| N10/10f19 |
Fuse 19 |
3L |
| N10/10f27 |
Fuse 27 |
2L |
| N10/10f8 |
Fuse 8 |
8L |

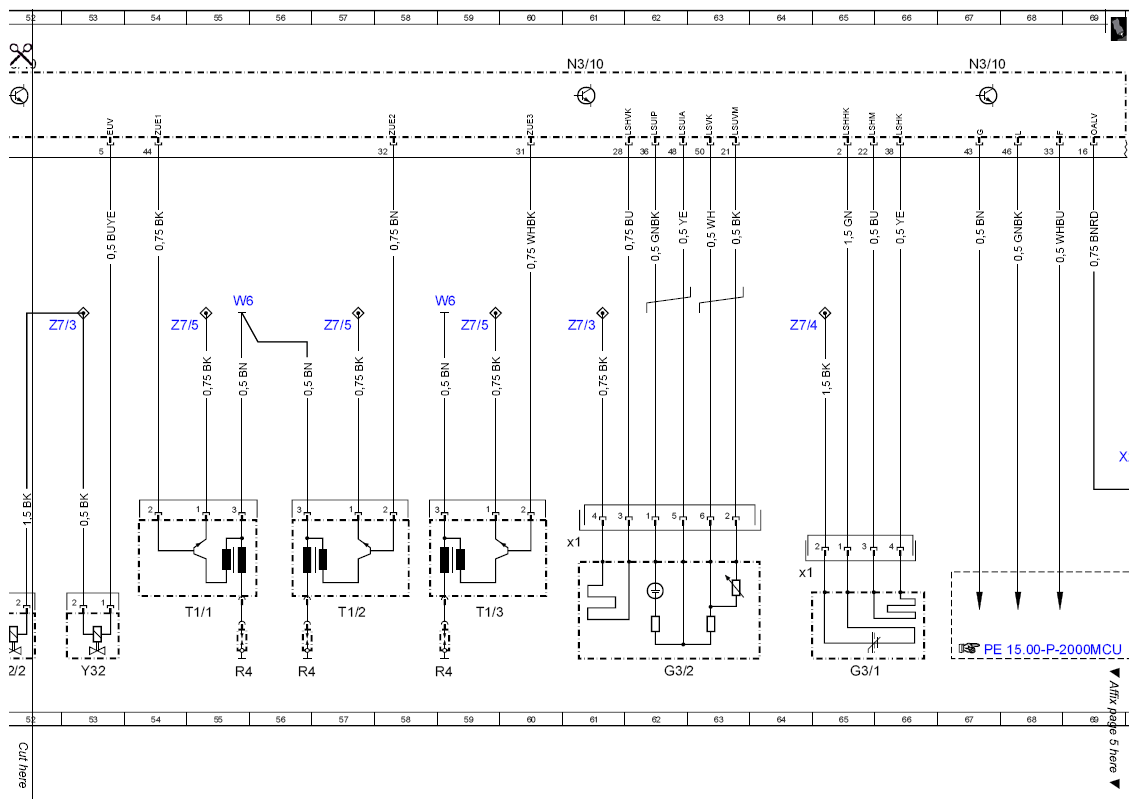

| N3/10 |
ME-SFI [ME] control unit |
61A |
| N3/10 |
ME-SFI [ME] control unit |
52A |
| N3/10 |
ME-SFI [ME] control unit |
44A |
| N3/10 |
ME-SFI [ME] control unit |
36A |
| N3/10 |
ME-SFI [ME] control unit |
28A |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| N3/10 |
ME-SFI [ME] control unit |
12A |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
67A |
| R4 |
Spark plugs |
59L |
| R4 |
Spark plugs |
56L |
| R4 |
Spark plugs |
55L |
| S41/1 |
Oil pressure switch |
42L |
| T1/1 |
Cylinder 1 ignition coil |
55K |
| T1/2 |
Cylinder 2 ignition coil |
57K |
| T1/3 |
Cylinder 3 ignition coil |
59K |
| U4 |
Valid for cruise control |
26F |
| W11 |
Ground (engine) |
79E |
| W11/5 |
Ground (engine/body) |
18G |
| W11/5 |
Ground (engine/body) |
79L |
| W6 |
Ground (left wheelhouse in luggage compartment) |
59E |
| W6 |
Ground (left wheelhouse in luggage compartment) |
55E |
| W7 |
Ground (right wheelhouse in luggage compartment) |
11G |
| W7 |
Ground (right wheelhouse in luggage compartment) |
9E |
| X15 |
Secondary air injection pump connector |
20G |
| X26 |
Interior/engine connector |
70G |
| Y32 |
Secondary air injection pump switchover valve |
53L |
| Y49 |
Adjustable camshaft timing solenoid |
36L |
| Y58/1 |
Fuel tank vent valve |
70A |
| Y58/2 |
Activated charcoal filter shutoff valve |
34L |
| Y62/1 |
Cylinder 1 fuel injection valve |
49L |
| Y62/2 |
Cylinder 2 fuel injection valve |
51L |
| Y62/3 |
Cylinder 3 fuel injection valve |
50L |
| Z3/24 |
Circuit 15 (fused) connector sleeve, function |
2E |
| Z7/3 |
Circuit 87 connector sleeve, injection valve 1 to 3 |
61E |
| Z7/3 |
Circuit 87 connector sleeve, injection valve 1 to 3 |
53E |
| Z7/3 |
Circuit 87 connector sleeve, injection valve 1 to 3 |
72L |
| Z7/3 |
Circuit 87 connector sleeve, injection valve 1 to 3 |
50E |
| Z7/35 |
Circuit 87 M1e connector sleeve |
78E |
| Z7/35 |
Circuit 87 M1e connector sleeve |
22E |
| Z7/35 |
Circuit 87 M1e connector sleeve |
5E |
| Z7/36 |
Circuit 87 M2e connector sleeve |
71E |
| Z7/36 |
Circuit 87 M2e connector sleeve |
8E |
| Z7/4 |
O2 sensor heater, wastegate valve circuit 30 connector sleeve |
64E |
| Z7/4 |
O2 sensor heater, wastegate valve circuit 30 connector sleeve |
71L |
| Z7/4 |
O2 sensor heater, wastegate valve circuit 30 connector sleeve |
35E |
| Z7/5 |
Circuit 87 connector sleeve |
78L |
| Z7/5 |
Circuit 87 connector sleeve |
59E |
| Z7/5 |
Circuit 87 connector sleeve |
54E |
| Z7/5 |
Circuit 87 connector sleeve |
57E |
