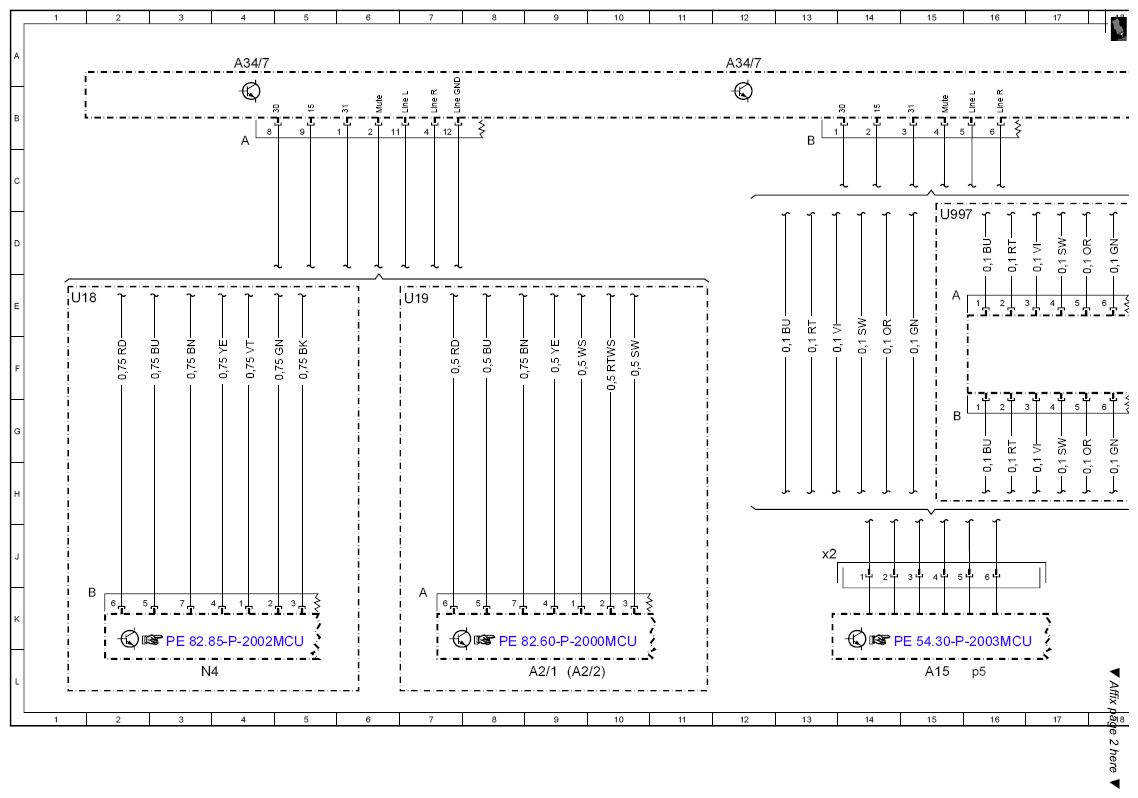

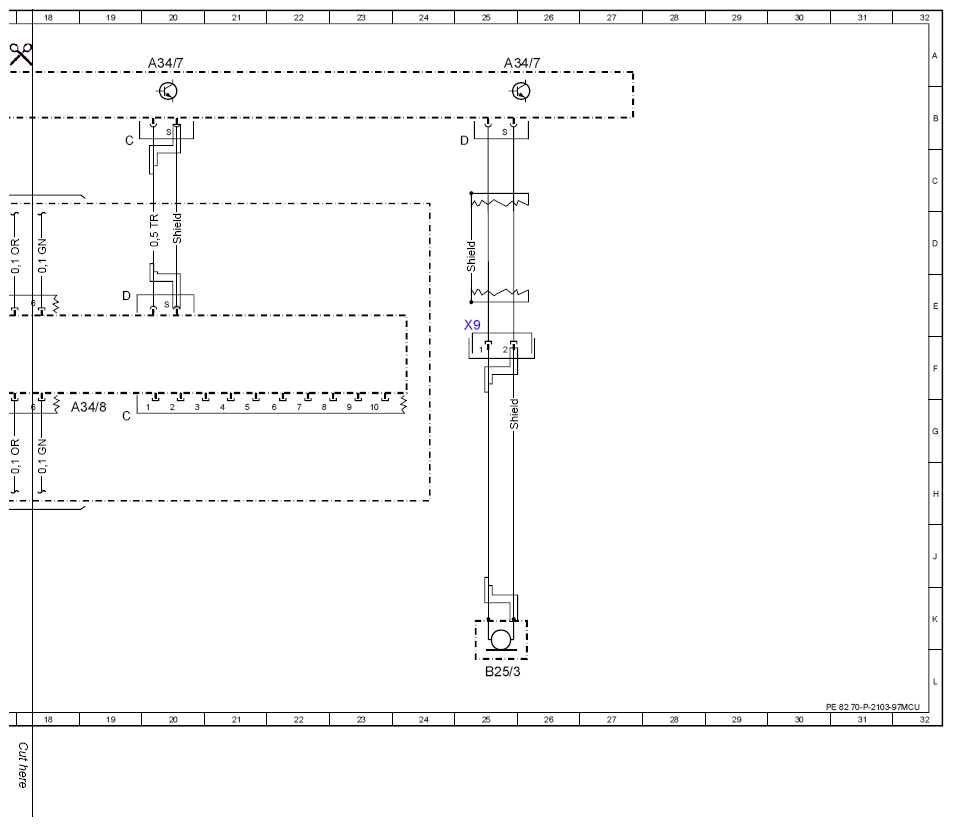

Wiring diagram radio - PE82.60-P-2000MCU
MODEL 451 up to 30.8.10
| Wiring diagram radio | PE82.60-P-2000-97MCU |
| Use of wiring diagrams | OV00.01-P-1901-03MCC |
| Search aid for all wiring diagram groups | OV00.01-P-1901MCU |
| Abbreviations for wiring diagrams | OV00.01-P-1001-27MC |
| Abbreviations of signal and circuit designations for wiring diagrams | OV00.01-P-1001-28MC |
| Location and assignment of line and plug connectors | GF00.19-P-1000MCU |
| Location and assignment of ground points | GF00.19-P-2000MCU |
| Location and assignment of Z connector sleeves (line connectors in wiring harness) | GF00.19-P-3000MCU |
| Further wiring diagrams | PE54.00-P-1100MCU |
| Further wiring diagrams | PE82.00-P-1100MCU |
