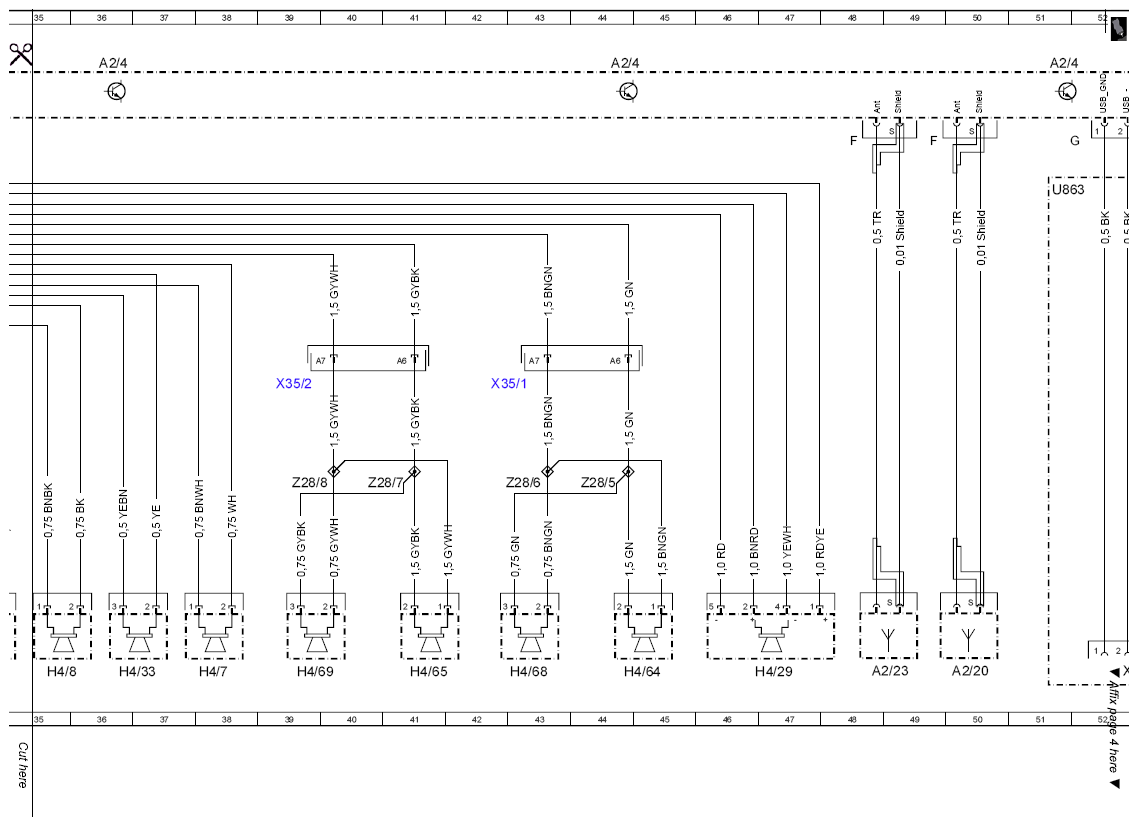

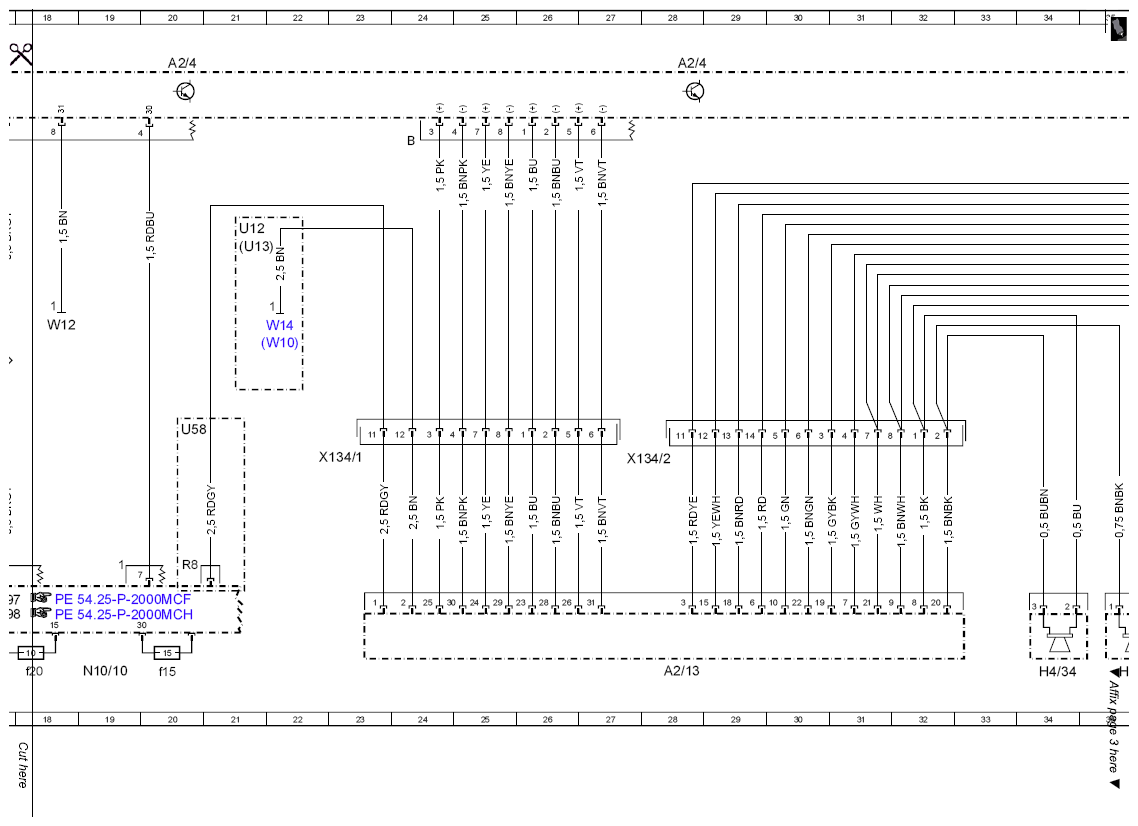

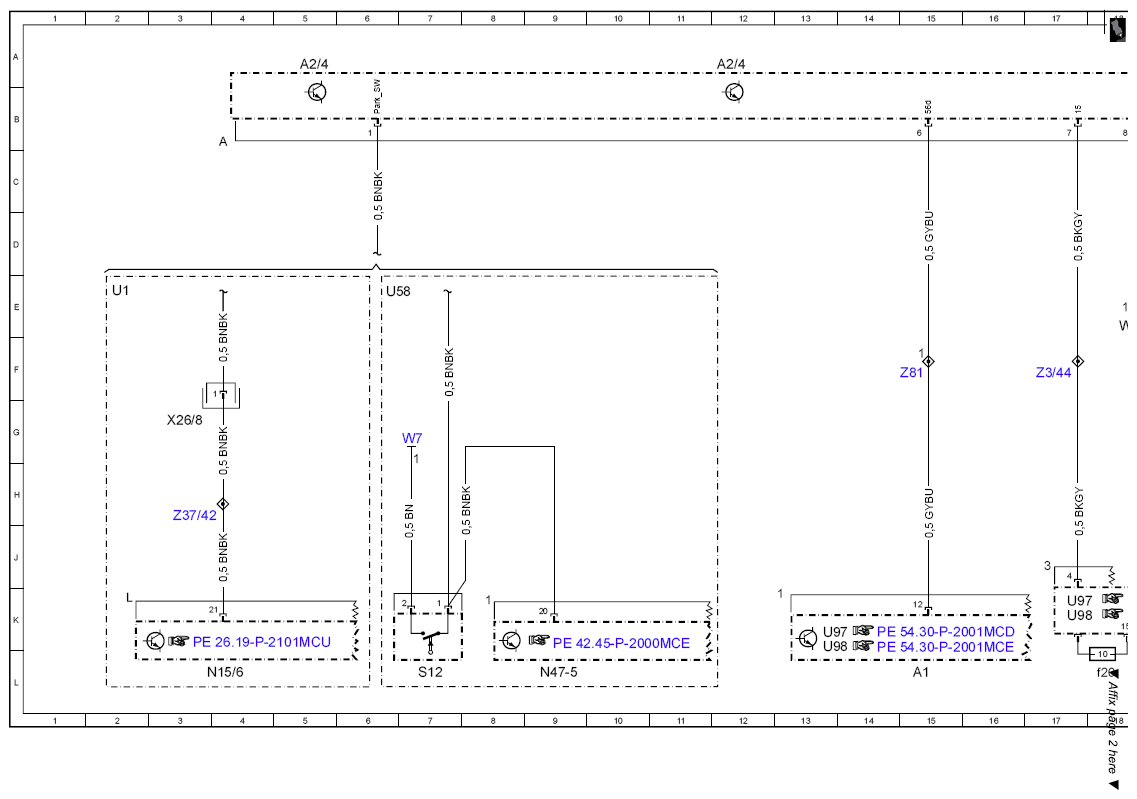

| A1 |
Instrument cluster |
15L |
| A2/13 |
Sound amplifier |
28L |
| A2/20 |
Radio antenna |
50L |
| A2/23 |
GPS antenna |
48L |
| A2/4 |
smart Premium radio |
12A |
| A2/4 |
smart Premium radio |
20A |
| A2/4 |
smart Premium radio |
51A |
| A2/4 |
smart Premium radio |
5A |
| A2/4 |
smart Premium radio |
28A |
| A2/4 |
smart Premium radio |
36A |
| A2/4 |
smart Premium radio |
44A |
| H4/29 |
Subwoofer |
47L |
| H4/33 |
Left tweeter |
36L |
| H4/34 |
Right tweeter |
34L |
| H4/64 |
Left door sound system woofer |
45L |
| H4/65 |
Right door sound system woofer |
41L |
| H4/68 |
Left door sound system tweeter |
43L |
| H4/69 |
Right door sound system tweeter |
39L |
| H4/7 |
Left rear speaker |
38L |
| H4/8 |
Right rear speaker |
35L |
| N10/10 |
SAM control unit |
19L |
| N10/10f15 |
Fuse 15 |
20L |
| N10/10f20 |
Fuse 20 |
18L |
| N15/6 |
Automated manual transmission control unit |
4L |
| N47-5 |
ESP control unit |
9L |
| S12 |
Parking brake indicator switch |
7L |
| U1 |
Valid for {{USA}} |
2E |
| U12 |
Valid for left-hand drive vehicles |
21D |
| U13 |
Valid for right-hand drive vehicles |
21D |
| U58 |
Valid for ECE |
20G |
| U58 |
Valid for ECE |
6E |
| U863 |
Valid for external audio source |
51C |
| U97 |
Not valid for model 451.334/380/480 |
13K |
| U97 |
Not valid for model 451.334/380/480 |
17K |
| U98 |
Valid for model 451.334/380/480 |
13L |
| U98 |
Valid for model 451.334/380/480 |
17K |
| W10 |
Ground (battery) |
22F |
| W12 |
Ground (center console) |
18E |
| W14 |
Left floor interior compartment ground |
22E |
| W7 |
Ground (right wheelhouse in luggage compartment) |
7G |
| X115 |
USB connection connector |
52L |
| X134/1 |
Sound connecting point 1 |
23G |
| X134/2 |
Sound connecting point 2 |
28H |
| X35/1 |
Left door separation point |
43F |
| X35/2 |
Right door separation point |
39F |
| X39/45 |
External audio source separation point |
55L |
| Z28/5 |
Left door speaker group connector sleeve (+) |
44H |
| Z28/6 |
Left door speaker group connector sleeve (-) |
43H |
| Z28/7 |
Right door speaker group connector sleeve (+) |
41H |
| Z28/8 |
Right door speaker group connector sleeve (-) |
39H |
| Z3/44 |
Instrument cluster - radio circuit 15 (fused) connector sleeve |
17F |
| Z37/42 |
CAN bus (low) connector sleeve |
3H |
| Z81 |
Circuit 58d connector sleeve |
15F |
