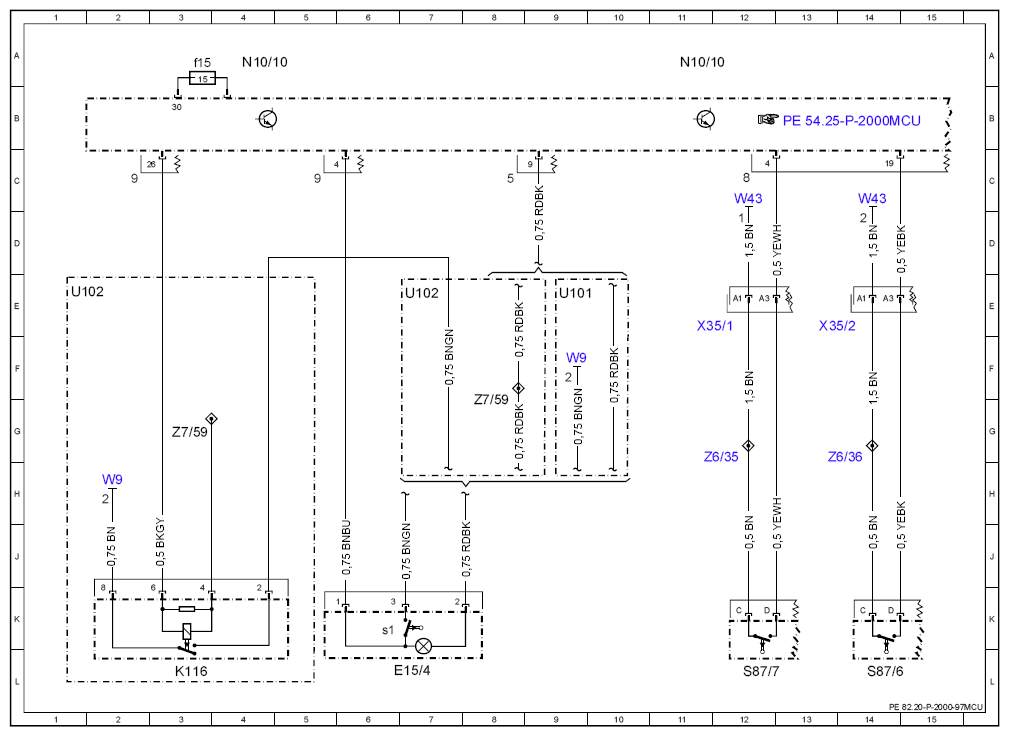

| E15/4 |
Front interior lamp |
7L |
| E15/4s1 |
Interior lamp switch |
|
| K116 |
Relay for shutoff-capable interior lamp |
3L |
| N10/10 |
SAM control unit |
4A |
| N10/10 |
SAM control unit |
11A |
| N10/10f15 |
Fuse 15 |
3A |
| S87/6 |
Right door rotary tumbler microswitch |
14L |
| S87/7 |
Left door rotary tumbler microswitch |
12L |
| U101 |
Valid up to 02/2009 |
9E |
| U102 |
Valid as of 03/2009 |
7E |
| U102 |
Valid as of 03/2009 |
1E |
| W43 |
Ground (outside left fire wall) |
14C |
| W43 |
Ground (outside left fire wall) |
12C |
| W9 |
Ground (left front, at lamp unit) |
2H |
| W9 |
Ground (left front, at lamp unit) |
9F |
| X35/1 |
Left door separation point |
12E |
| X35/2 |
Right door separation point |
14E |
| Z6/35 |
Left door ground connector sleeve |
12G |
| Z6/36 |
Right door ground connector sleeve |
14G |
| Z7/59 |
Tml. 30 connector sleeve |
3G |
| Z7/59 |
Tml. 30 connector sleeve |
8G |
