Wiring diagram for power windows - PE72.29-P-2001-99MCU

Code:	Designation:	Position:
A1	Instrument cluster	7 L
M10/3	Left power window motor	17 L
M10/4	Right power window motor	19 L
N10/10	SAM control unit	3 L
N10/10f3	Fuse 3	2 L
N57/2	Power window convenience feature control unit	4 A
N57/2	Power window convenience feature control unit	12 A
N57/2	Power window convenience feature control unit	20 A
S21/1	Left power window switch	11 L
S21/2	Right power window switch	14 L
S21/2	Right power window switch	21 L
W43	Ground (outside left fire wall)	12 C
W43	Ground (outside left fire wall)	20 C
W9	Ground (at left headlamp unit)	3 H
X35/1	Left door separation point	9 E
X35/2	Right door separation point	18 E
Z51/6	Circuit 58d connector sleeve	9 H
Z51/6	Circuit 58d connector sleeve	15 H
Z6/35	Left door ground connector sleeve	12 H
Z6/36	Right door ground connector sleeve	20 H
Z81	Circuit 58d connector sleeve	7 H
Z81	Circuit 58d connector sleeve	22 C

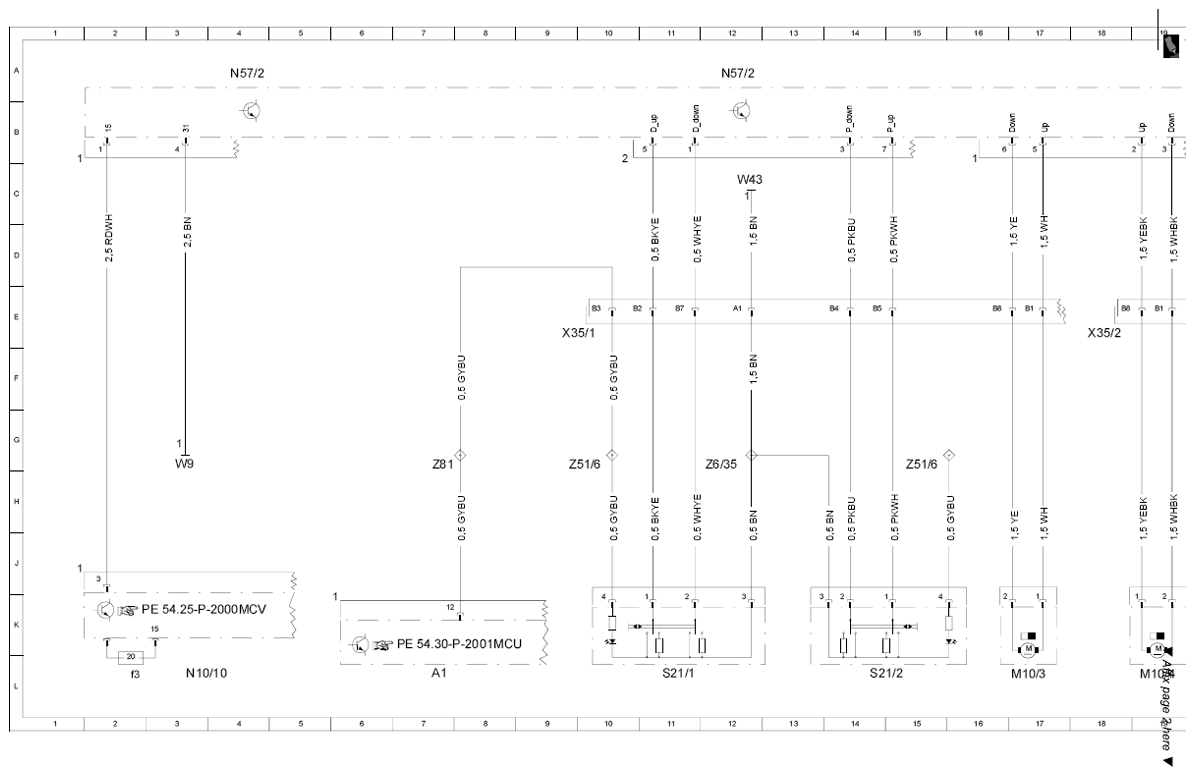

Fig 1: Power Windows - Wiring Diagrams (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

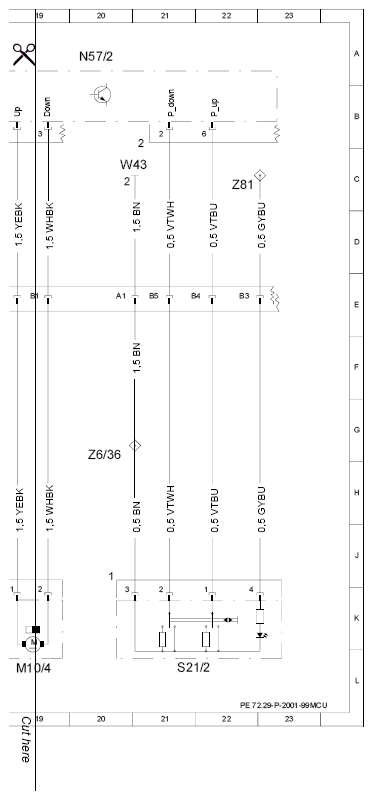

Fig 2: Power Windows - Wiring Diagrams (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
