Remove/install luggage compartment floor covering - AR68.20-P-4810MCU

MODEL 451.3/4

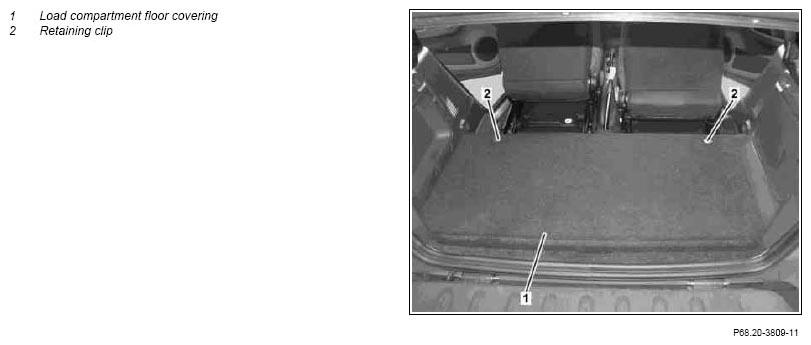

Fig 1: Identifying Load Compartment Floor Covering And Retaining Clips

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove driver seat		AR91.10-P-1010MCU
2	Remove passenger seat		AR91.10-P-1020MCU
3.1	Remove retaining clips (2) from load compartment floor covering (1).	On vehicles without code (I05) Separation protection between luggage compartment and passenger compartment (DFO) or without code (S02) Top Tether (child seat equipment)
3.2	Remove bolts from lashing eyes	On vehicles with code (I05) Separation protection between luggage compartment and passenger compartment (DFO) or with code (S02) Top Tether (child seat equipment) Bolts are installed instead of retaining clips (2) Installation:  Observe installation position of spacer sleeves between body and floor covering.
			*BA68.50-P-1003-03D
			*BA91.20-P-1002-01C
4	Expose load compartment floor covering (1) in area of left and right paneling in trunk.
5	Remove load compartment floor covering (1)	When removing load compartment floor covering (1), ensure that this is not damaged by breaking or cracking.
6	Install in the reverse order

CARGO RETAINER, DIVIDER

Number	Designation		Model 451.3	Model 451.4
BA68.50-P-1003-03D	Bolt, divider bracket to vehicle floor	Nm	22	22

CHILD SEATS

Number	Designation		Model 451.3/4
BA91.20-P-1002-01C	Bolt, child seat anchorage to body	Nm	22
