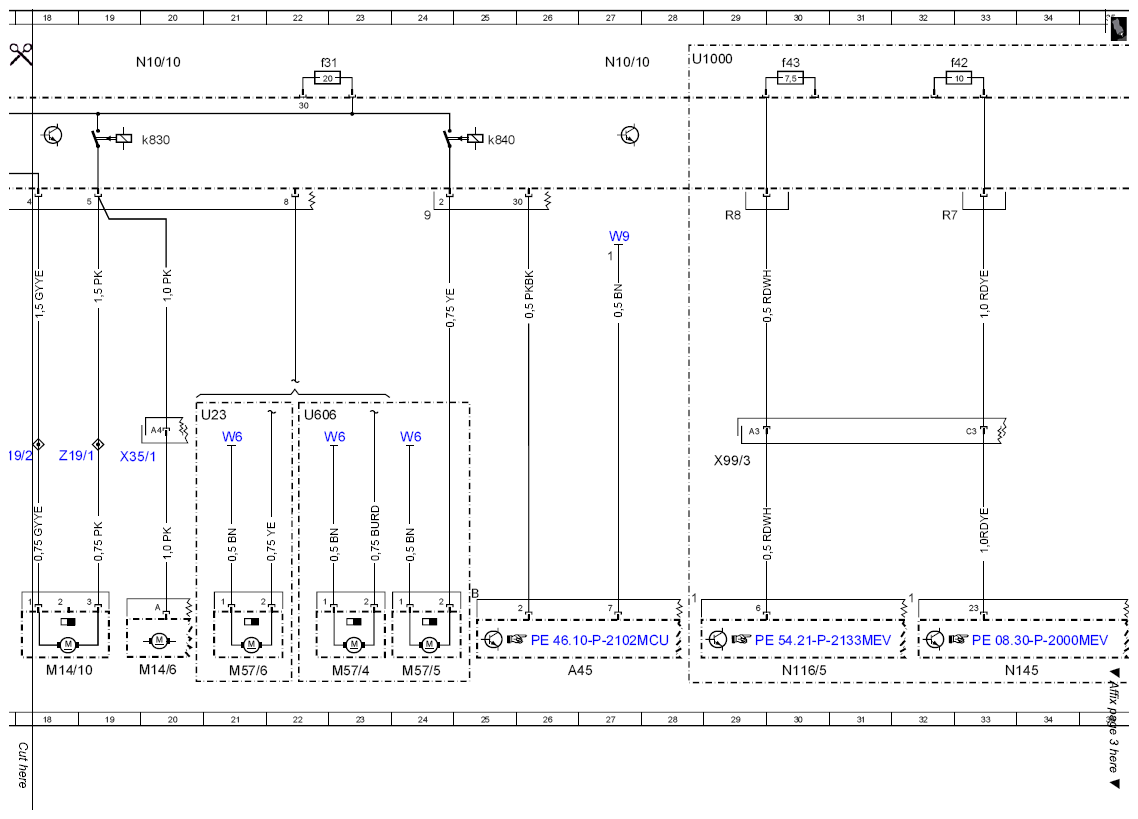

| A45 |
Fanfare horns and airbag clock spring contact |
26L |

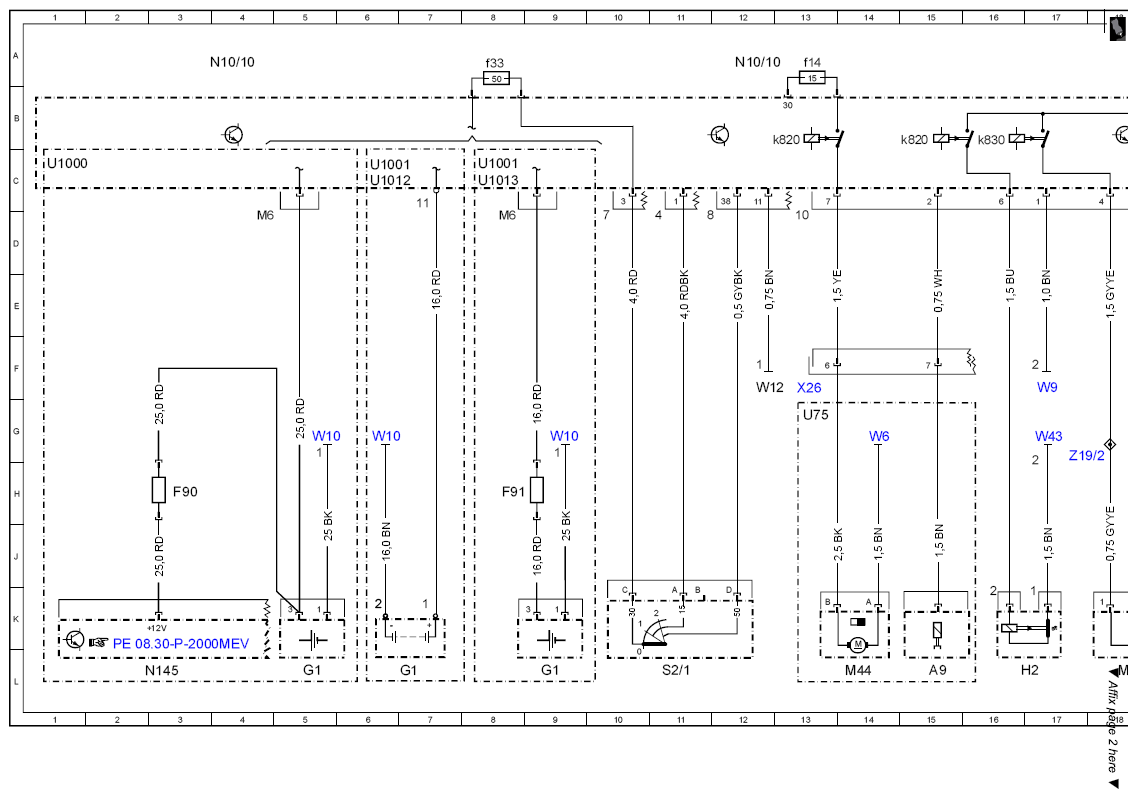

| A9 |
Refrigerant compressor |
15L |

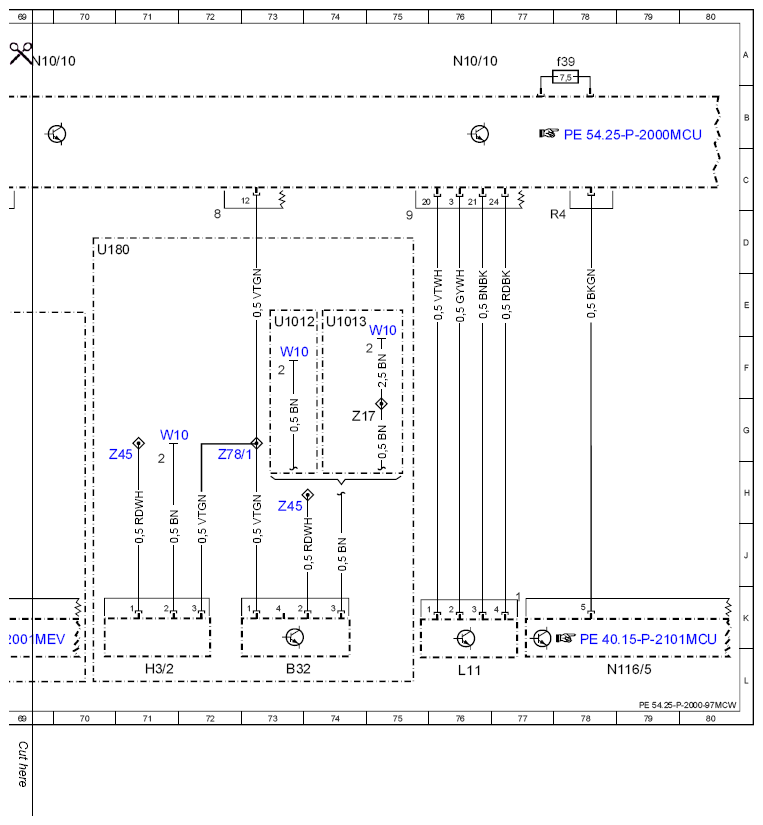

| B32 |
Microwave sensor |
73L |

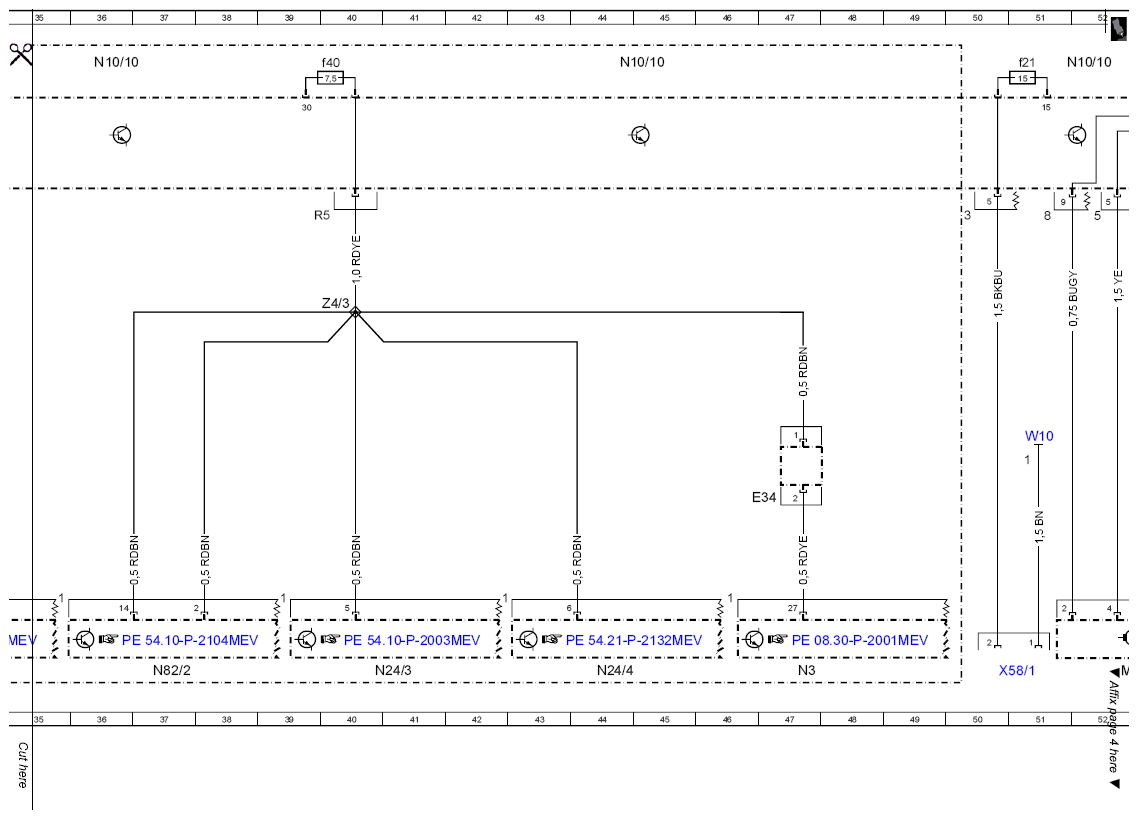

| E34 |
Charger feed socket indicator LED |
47H |

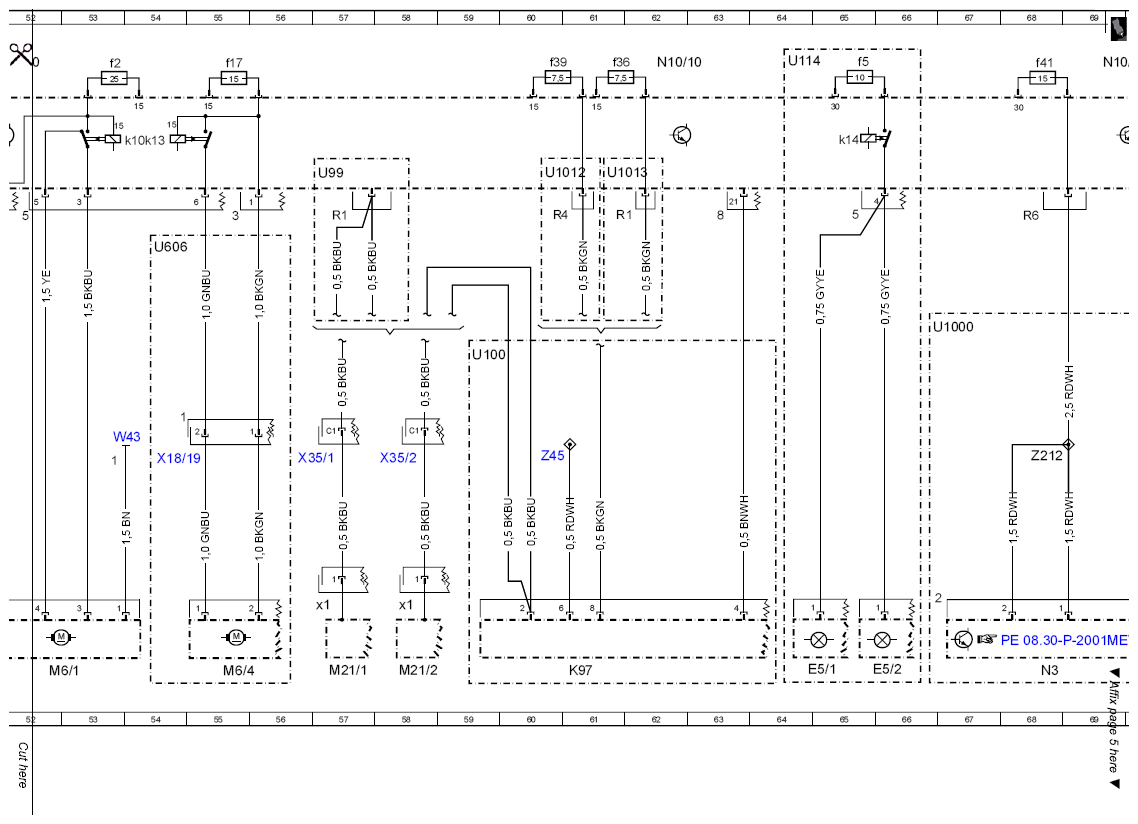

| E5/1 |
Left front fog lamp |
65L |
| E5/2 |
Right fog lamp |
66L |
| F90 |
12 V charge line prefuse |
3H |
| F91 |
SAM prefuse |
8H |
| G1 |
Battery |
7L |
| G1 |
Battery |
5L |
| G1 |
Battery |
9L |
| H2 |
Horn |
17L |
| H3/2 |
Alarm siren with inclination sensor |
71L |
| K97 |
Mirror heater relay |
61L |
| L11 |
Transponder coil |
76L |
| M14/10 |
Fuel filler flap CL [ZV] motor |
18L |
| M14/6 |
Left door CL [ZV] motor |
20L |
| M21/1 |
Left electrically adjustable and heated outside mirror |
57L |
| M21/1x1 |
Left electrically adjustable and heated exterior mirror connector |
|
| M21/2 |
Right electrically adjustable and heated outside mirror |
58L |
| M21/2x1 |
Right electrically adjustable and heated exterior mirror connector |
|
| M44 |
Charge air fan motor |
14L |
| M57/4 |
Trunk lid opening assist motor 1 (cabriolet) |
23L |
| M57/5 |
Trunk lid opening assist motor 2 (cabriolet) |
24L |
| M57/6 |
Trunk lid opening assist motor (cabriolet) |
21L |
| M6/1 |
Wiper motor |
52L |
| M6/4 |
Tailgate wiper motor |
55L |
| N10/10 |
SAM control unit |
20A |
| N10/10 |
SAM control unit |
27A |
| N10/10 |
SAM control unit |
36A |
| N10/10 |
SAM control unit |
44A |
| N10/10 |
SAM control unit |
52A |
| N10/10 |
SAM control unit |
62A |
| N10/10 |
SAM control unit |
69A |
| N10/10 |
SAM control unit |
12A |
| N10/10 |
SAM control unit |
76A |
| N10/10 |
SAM control unit |
4A |
| N10/10f14 |
Fuse 14 |
13A |
| N10/10f17 |
Fuse 17 |
55A |
| N10/10f2 |
Fuse 2 |
53A |
| N10/10f21 |
Fuse 21 |
51A |
| N10/10f31 |
Fuse 31 |
22A |
| N10/10f33 |
Fuse 33 |
8A |
| N10/10f36 |
Fuse 36 (slot R1) |
61A |
| N10/10f39 |
Fuse 39 (slot R4) |
78A |
| N10/10f39 |
Fuse 39 (slot R4) |
60A |
| N10/10f40 |
Fuse 40 (slot R5) |
40A |
| N10/10f41 |
Fuse 41 (slot R6) |
68A |
| N10/10f42 |
Fuse 42 (slot R7) |
33A |
| N10/10f43 |
Fuse 43 (slot R8) |
30A |
| N10/10f5 |
Fuse 5 |
65A |
| N10/10k10 |
Front wiper relay |
|
| N10/10k13 |
Rear wiper relay |
|
| N10/10k14 |
Front fog lamp relay |
|
| N10/10k820 |
Charge air fan motor and horn relay |
|
| N10/10k820 |
Charge air fan motor and horn relay |
|
| N10/10k830 |
CL [ZV] "open" and CL [ZV] "locked" relay |
|
| N10/10k830 |
CL [ZV] "open" and CL [ZV] "locked" relay |
|
| N10/10k840 |
Rear-end door/trunk lid CL [ZV] relay |
|
| N116/5 |
High-voltage distributor control unit |
30L |
| N116/5 |
High-voltage distributor control unit |
79L |
| N145 |
Electric motor control unit |
33L |
| N145 |
Electric motor control unit |
3L |
| N24/3 |
High-voltage AC/DC battery charger control unit |
41L |
| N24/4 |
Smart battery charger control unit |
44L |
| N3 |
EVCM electric vehicle control unit |
47L |
| N3 |
EVCM electric vehicle control unit |
68L |
| N82/2 |
Battery management system control unit |
37L |
| S2/1 |
Ignition/starter switch |
11L |
| U100 |
Valid as of 12/2008 |
59F |
| U1000 |
Valid for model 451.391/491 |
28A |
| U1000 |
Valid for model 451.391/491 |
66E |
| U1000 |
Valid for model 451.391/491 |
1C |
| U1001 |
Not valid for model 451.391/491 |
6C |
| U1001 |
Not valid for model 451.391/491 |
8C |
| U1012 |
Valid up to 30/08/2010 |
73E |
| U1012 |
Valid up to 30/08/2010 |
6C |
| U1012 |
Valid up to 30/08/2010 |
60C |
| U1013 |
Valid as of 31/08/2010 |
74E |
| U1013 |
Valid as of 31/08/2010 |
8C |
| U1013 |
Valid as of 31/08/2010 |
61C |
| U114 |
Valid for front fog lamps |
64A |
| U180 |
Valid for ATA [EDW] with siren |
70D |
| U23 |
Valid for convertibles |
20G |
| U606 |
Valid for all except convertibles |
54D |
| U606 |
Valid for all except convertibles |
22G |
| U75 |
Valid for gasoline engines |
13G |
| U99 |
Valid up to 12/2008 |
57C |
| W10 |
Ground (battery) |
6G |
| W10 |
Ground (battery) |
71G |
| W10 |
Ground (battery) |
51G |
| W10 |
Ground (battery) |
5G |
| W10 |
Ground (battery) |
73F |
| W10 |
Ground (battery) |
75E |
| W10 |
Ground (battery) |
9G |
| W12 |
Ground (center console) |
12F |
| W43 |
Ground (outside left fire wall) |
17G |
| W43 |
Ground (outside left fire wall) |
53G |
| W6 |
Ground (left wheelhouse in luggage compartment) |
14G |
| W6 |
Ground (left wheelhouse in luggage compartment) |
23G |
| W6 |
Ground (left wheelhouse in luggage compartment) |
24G |
| W6 |
Ground (left wheelhouse in luggage compartment) |
21G |
| W9 |
Ground (left front, at lamp unit) |
17F |
| W9 |
Ground (left front, at lamp unit) |
27D |
| X18/19 |
Trunk lid connector |
54H |
| X26 |
Interior/engine connector |
13F |
| X35/1 |
Left door separation point |
57H |
| X35/1 |
Left door separation point |
19G |
| X35/2 |
Right door separation point |
58H |
| X58/1 |
Interior socket |
50L |
| X99/3 |
Vehicle wiring harness connector |
29H |
| Z17 |
Connector sleeve 9 |
74G |
| Z19/1 |
CL [ZV] "open" connector sleeve |
18G |
| Z19/2 |
CL [ZV] "closed" connector sleeve |
17G |
| Z212 |
Circuit 30 supply connector sleeve |
68G |
| Z4/3 |
Tml. 30 connector sleeve |
40E |
| Z45 |
ATA [EDW] sensor supply circuit 30 connector sleeve |
60G |
| Z45 |
ATA [EDW] sensor supply circuit 30 connector sleeve |
73H |
| Z45 |
ATA [EDW] sensor supply circuit 30 connector sleeve |
71G |
| Z78/1 |
ATA [EDW] LIN connector sleeve |
72G |
