Location and assignment of Z-connector sleeves (line connectors in wiring harness)- right footwell - GF00.19-P-3000-18MCU

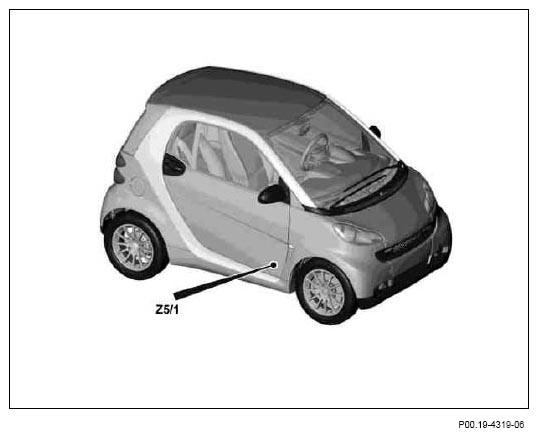

Fig 1: Locating Z Connector Sleeve - Right Footwell
G07276796Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Z connector sleeve Designation Component Designation Connector. Pin
Z5/1  Blower/fan connector sleeve
← S98/1  Blower switch  1
→ M2 Blower motor  2
→ R14 Blower motor series resistor group  4
