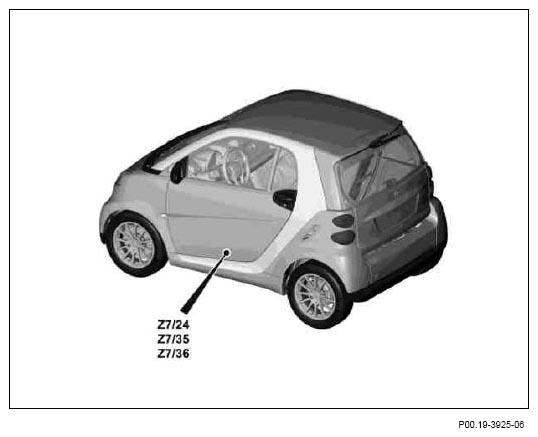

Location and assignment of Z connector sleeves (cable connections in wiring harness) - interior left - GF00.19-P-3000-04MCU
| Z connector sleeve | Designation | Component | Designation | Connector. Pin |
|---|---|---|---|---|
| Z7/24 | Circuit connector sleeve 87/1 | |||
| ← N10/10 | SAM control unit | 4.2 | ||
| → N15/6 | Automated manual transmission control unit | R.1 | ||
| → N15/6 | Automated manual transmission control unit | R.3 | ||
| Z7/35 | Circuit 87 M1e connector sleeve | |||
| ← N10/10 | SAM control unit | 5.11 | ||
| → K64 | Secondary air injection pump relay | 6 | ||
| → N3/10 | ME-SFI [ME] control unit | 1.66 | ||
| → N3/10 | ME-SFI [ME] control unit | 1.73 | ||
| → N15/5 | Electronic selector lever module control unit | 1 | ||
| → N15/6 | Automated manual transmission control unit | R.7 | ||
| → N15/6 | Automated manual transmission control unit | R.8 | ||
| → X26 | Interior/engine connector | 3 | ||
| Z7/36 | Circuit 87 M2e connector sleeve M660 |
|||
| ← N10/10 | SAM control unit | 1.2 | ||
| ← X26 | Interior/engine connector | 4 | ||
| → Y50 | Outside air shutoff valve | 1 |
