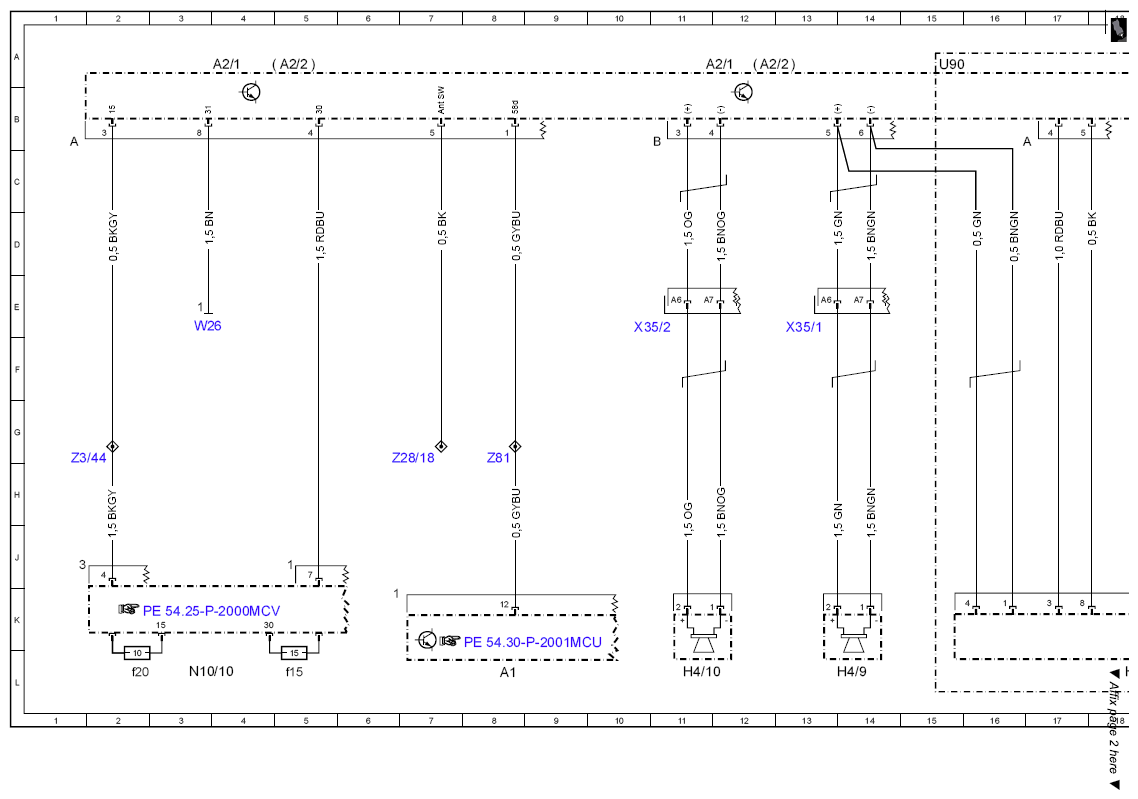

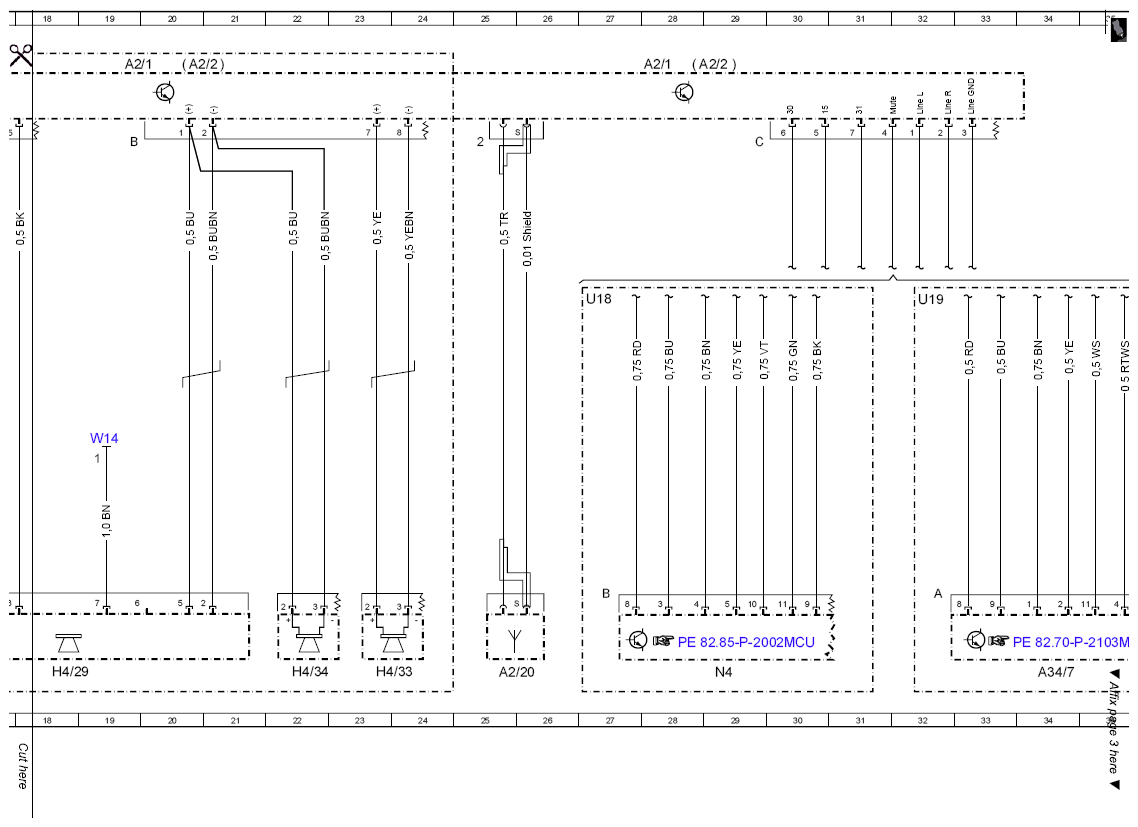

| A1 |
Instrument cluster |
8L |
| A2/1 |
smart radio 9 |
19A |
| A2/1 |
smart radio 9 |
11A |
| A2/1 |
smart radio 9 |
4A |
| A2/1 |
smart radio 9 |
28A |
| A2/2 |
smart radio 10 |
20A |
| A2/2 |
smart radio 10 |
12A |
| A2/2 |
smart radio 10 |
5A |
| A2/2 |
smart radio 10 |
29A |
| A2/20 |
Radio antenna |
25L |
| H4/10 |
Right front speaker |
11L |
| H4/29 |
Subwoofer loudspeaker |
18L |
| H4/33 |
Left tweeter speaker |
23L |
| H4/34 |
Right tweeter speaker |
22L |
| H4/9 |
Left front speaker |
14L |
| N10/10 |
SAM control unit |
3L |
| N10/10f15 |
Fuse 15 |
5L |
| N10/10f20 |
Fuse 20 |
2L |
| N4 |
Communication control unit |
29L |
| U18 |
Valid for communication systems |
27E |
| U90 |
Valid for Sound System |
15A |
| W14 |
Left floor interior compartment ground |
19G |
| W26 |
Ground (transmission tunnel) |
3E |
| X35/1 |
Left door separation point |
13E |
| X35/2 |
Right door separation point |
11E |
| Z28/18 |
Sound system/antenna control connector sleeve |
7G |
| Z3/44 |
Instrument cluster - radio circuit 15 connector sleeve (fused) |
2G |
| Z81 |
Circuit 58d connector sleeve |
8G |
