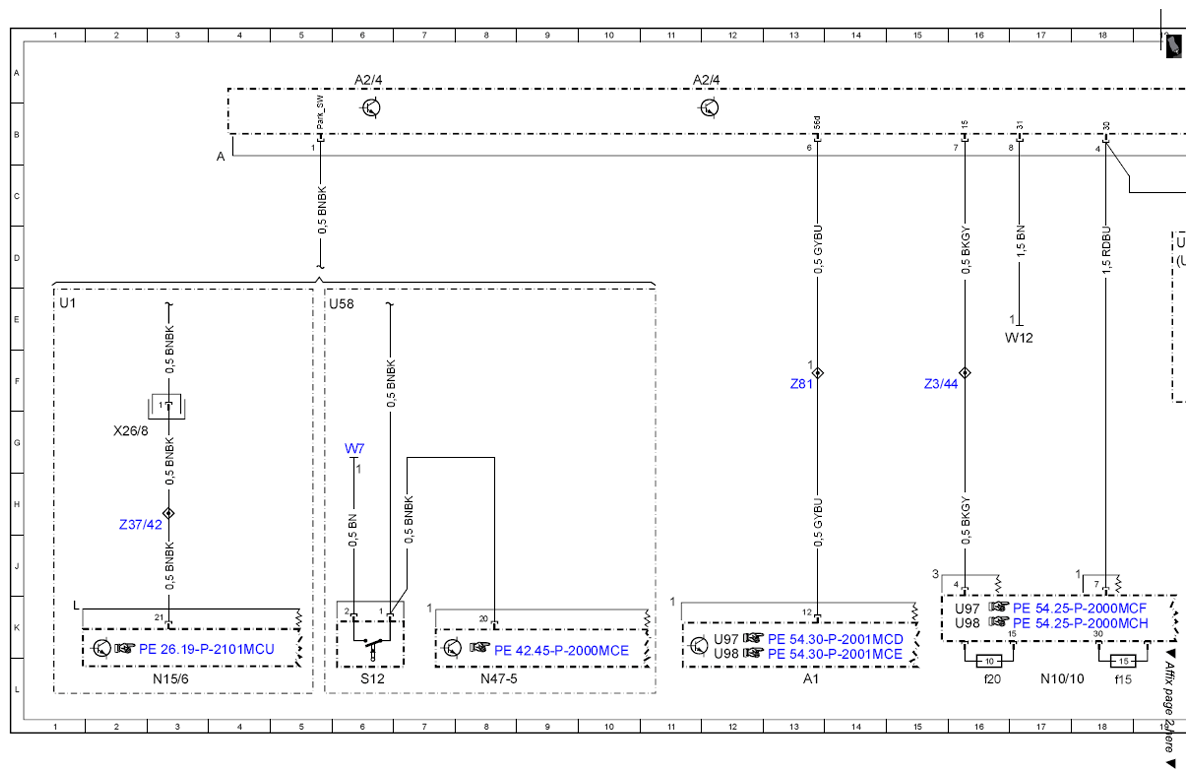

| A1 |
Instrument cluster |
13L |

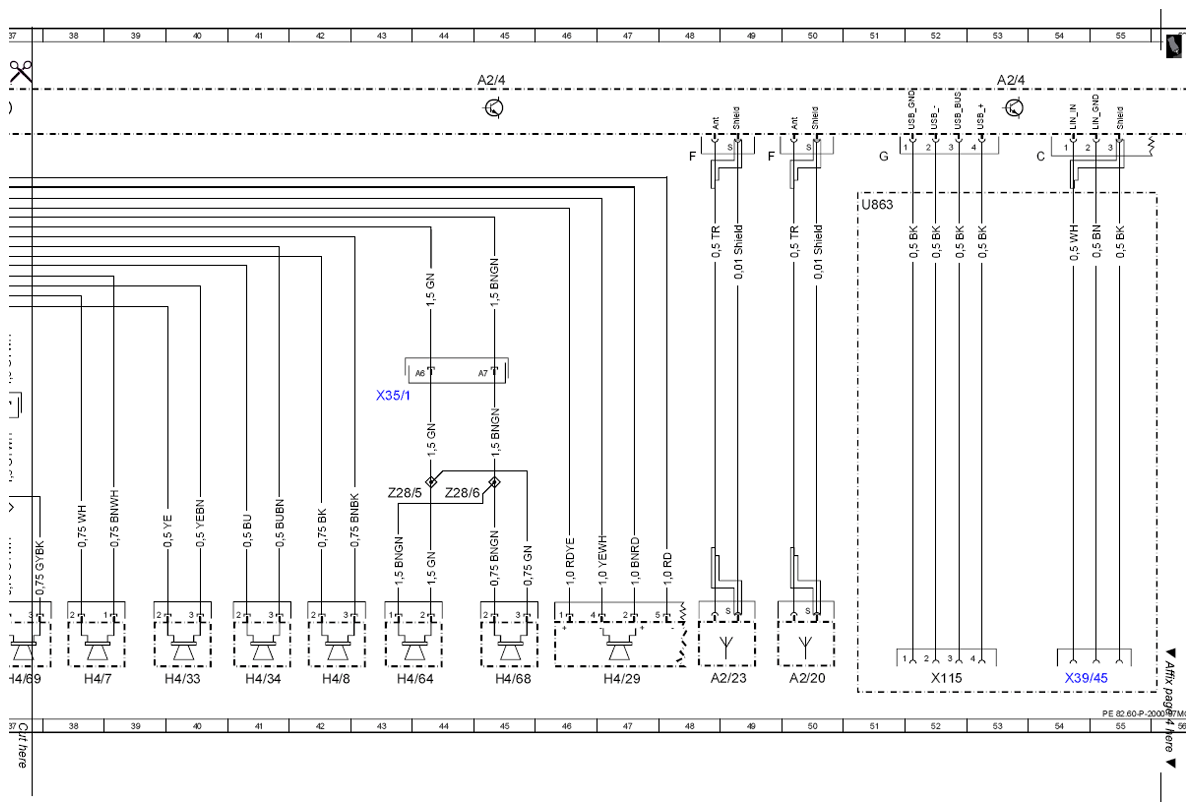

| A2/20 |
Radio antenna |
50L |
| A2/23 |
GPS antenna |
48L |
| A2/4 |
smart Premium radio |
6A |
| A2/4 |
smart Premium radio |
11A |
| A2/4 |
smart Premium radio |
20A |
| A2/4 |
smart Premium radio |
29A |
| A2/4 |
smart Premium radio |
37A |
| A2/4 |
smart Premium radio |
45A |
| A2/4 |
smart Premium radio |
53A |

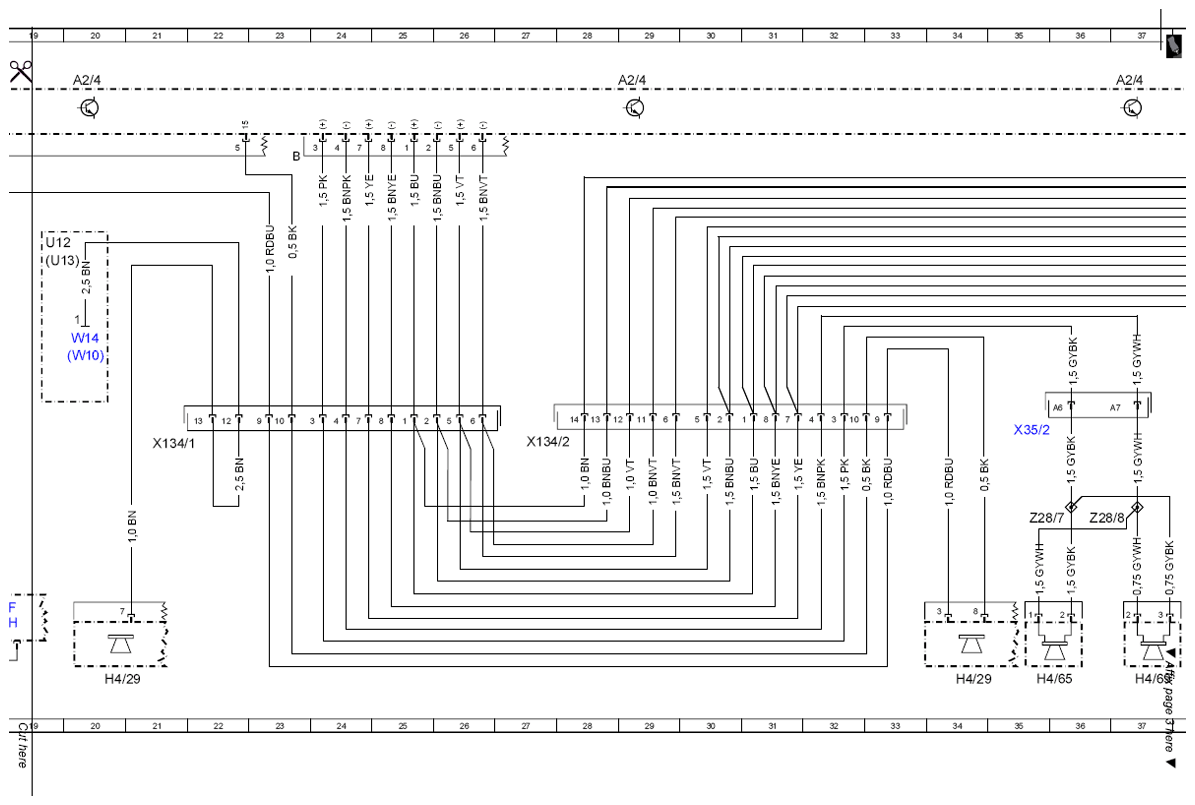

| H4/29 |
Subwoofer |
20L |
| H4/29 |
Subwoofer |
47L |
| H4/29 |
Subwoofer |
34L |
| H4/33 |
Left tweeter |
40L |
| H4/34 |
Right tweeter |
41L |
| H4/64 |
Left door sound system woofer |
43L |
| H4/65 |
Right door sound system woofer |
35L |
| H4/68 |
Left door sound system tweeter |
45L |
| H4/69 |
Right door sound system tweeter |
37L |
| H4/7 |
Left rear speaker |
38L |
| H4/8 |
Right rear speaker |
42L |
| N10/10 |
SAM control unit |
17L |
| N10/10f15 |
Fuse 15 |
18L |
| N10/10f20 |
Fuse 20 |
16L |
| N15/6 |
Automated manual transmission control unit |
3L |
| N47-5 |
ESP control unit |
8L |
| S12 |
Parking brake indicator switch |
6L |
| U1 |
Valid for {{USA}} |
1E |
| U12 |
Valid for left-hand drive vehicles |
19D |
| U13 |
Valid for right-hand drive vehicles |
19D |
| U58 |
Valid for ECE |
6E |
| U863 |
Valid for external audio source |
51C |
| U97 |
Not valid for model 451.334/380/480 |
12K |
| U97 |
Not valid for model 451.334/380/480 |
16K |
| U98 |
Valid for model 451.334/380/480 |
12L |
| U98 |
Valid for model 451.334/380/480 |
16K |
| W10 |
Ground (battery) |
20F |
| W12 |
Ground (center console) |
17E |
| W14 |
Left floor interior compartment ground |
20E |
| W7 |
Ground (right wheelhouse in luggage compartment) |
6G |
| X115 |
USB connection connector |
52L |
| X134/1 |
Sound connecting point 1 |
21G |
| X134/2 |
Sound connecting point 2 |
27G |
| X35/1 |
Left door separation point |
43F |
| X35/2 |
Right door separation point |
35G |
| X39/45 |
External audio source separation point |
54L |
| Z28/5 |
Left door speaker group connector sleeve (+) |
43H |
| Z28/6 |
Left door speaker group connector sleeve (-) |
44H |
| Z28/7 |
Right door speaker group connector sleeve (+) |
35H |
| Z28/8 |
Right door speaker group connector sleeve (-) |
36H |
| Z3/44 |
Instrument cluster - radio circuit 15 (fused) connector sleeve |
15F |
| Z37/42 |
CAN bus (low) connector sleeve |
2H |
| Z81 |
Circuit 58d connector sleeve |
13F |
