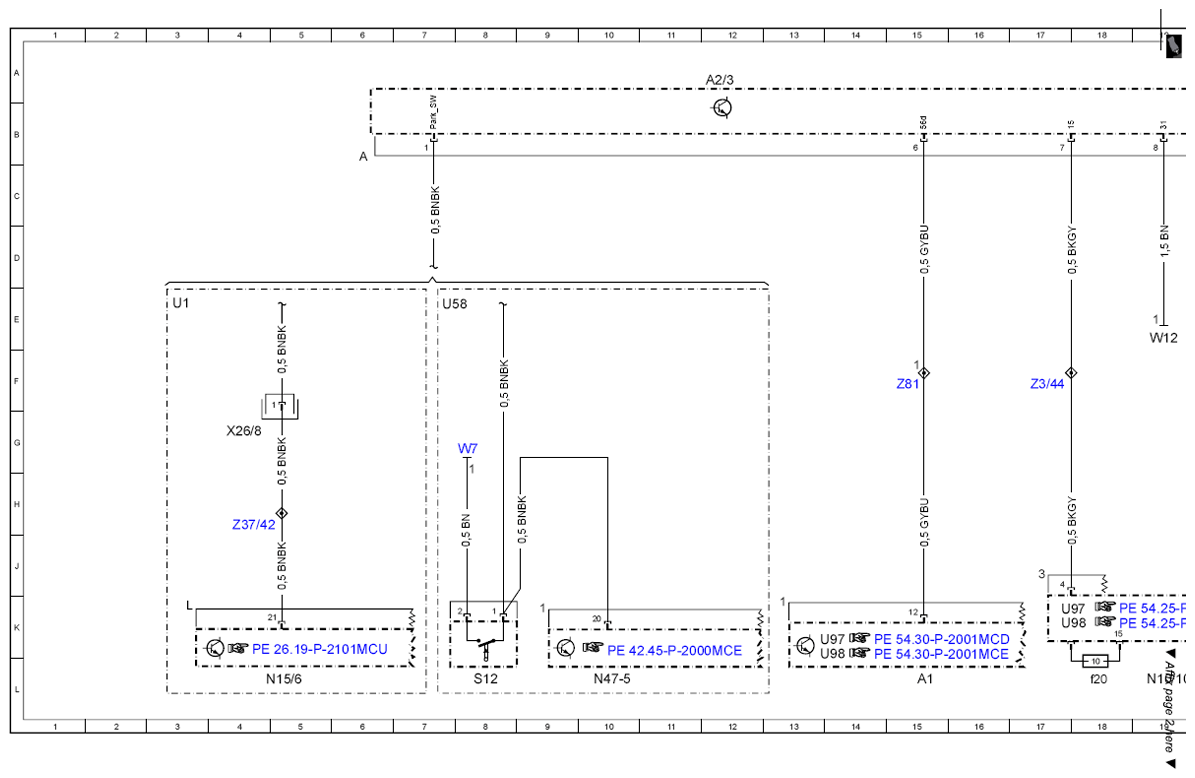

| A1 |
Instrument cluster |
15L |
| A2/20 |
Radio antenna |
39L |
| A2/3 |
smart Entry radio |
12A |
| A2/3 |
smart Entry radio |
20A |
| A2/3 |
smart Entry radio |
28A |
| A2/3 |
smart Entry radio |
36A |
| A2/3 |
smart Entry radio |
43A |

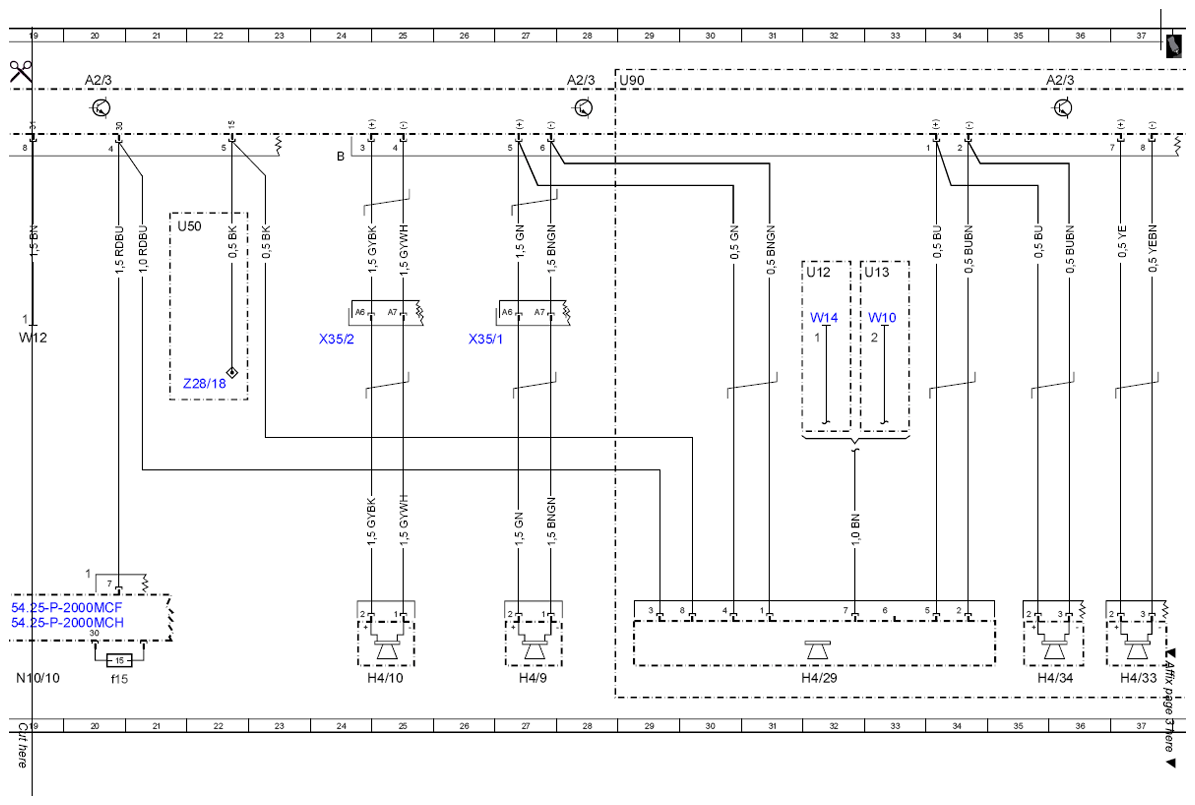

| H4/10 |
Right front speaker |
25L |
| H4/29 |
Subwoofer |
32L |
| H4/33 |
Left tweeter |
37L |
| H4/34 |
Right tweeter |
35L |
| H4/9 |
Left front speaker |
27L |
| N10/10 |
SAM control unit |
19L |
| N10/10f15 |
Fuse 15 |
20L |
| N10/10f20 |
Fuse 20 |
18L |
| N15/6 |
Automated manual transmission control unit |
5L |
| N47-5 |
ESP control unit |
10L |
| S12 |
Parking brake indicator switch |
8L |
| U1 |
Valid for {{USA}} |
3E |
| U12 |
Valid for left-hand drive vehicles |
32D |
| U13 |
Valid for right-hand drive vehicles |
32D |
| U50 |
Valid for {{USA}} {{Japan}} |
21D |
| U58 |
Valid for ECE |
7E |
| U863 |
Valid for external audio source |
40C |
| U90 |
Valid for Sound System |
29A |
| U97 |
Not valid for model 451.334/380/480 |
13K |
| U97 |
Not valid for model 451.334/380/480 |
17K |
| U98 |
Valid for model 451.334/380/480 |
13L |
| U98 |
Valid for model 451.334/380/480 |
17K |
| W10 |
Ground (battery) |
33E |
| W12 |
Ground (center console) |
19E |
| W14 |
Left floor interior compartment ground |
32E |
| W7 |
Ground (right wheelhouse in luggage compartment) |
8G |

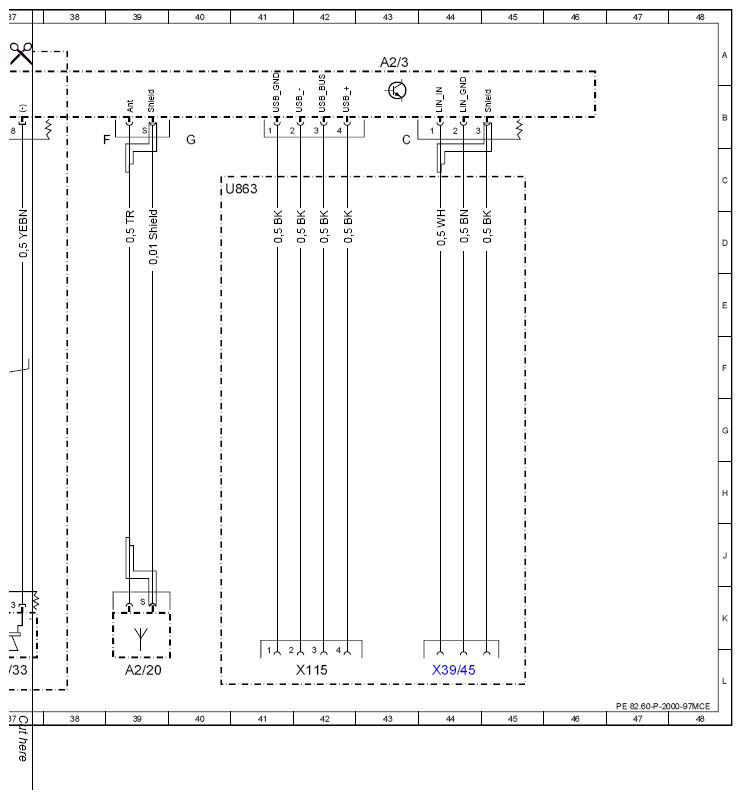

| X115 |
USB connection connector |
42L |
| X35/1 |
Left door separation point |
26E |
| X35/2 |
Right door separation point |
24E |
| X39/45 |
External audio source separation point |
44L |
| Z28/18 |
Sound system antenna actuation connector sleeve |
22F |
| Z3/44 |
Instrument cluster - radio circuit 15 (fused) connector sleeve |
17F |
| Z37/42 |
CAN bus (low) connector sleeve |
4H |
| Z81 |
Circuit 58d connector sleeve |
15F |
