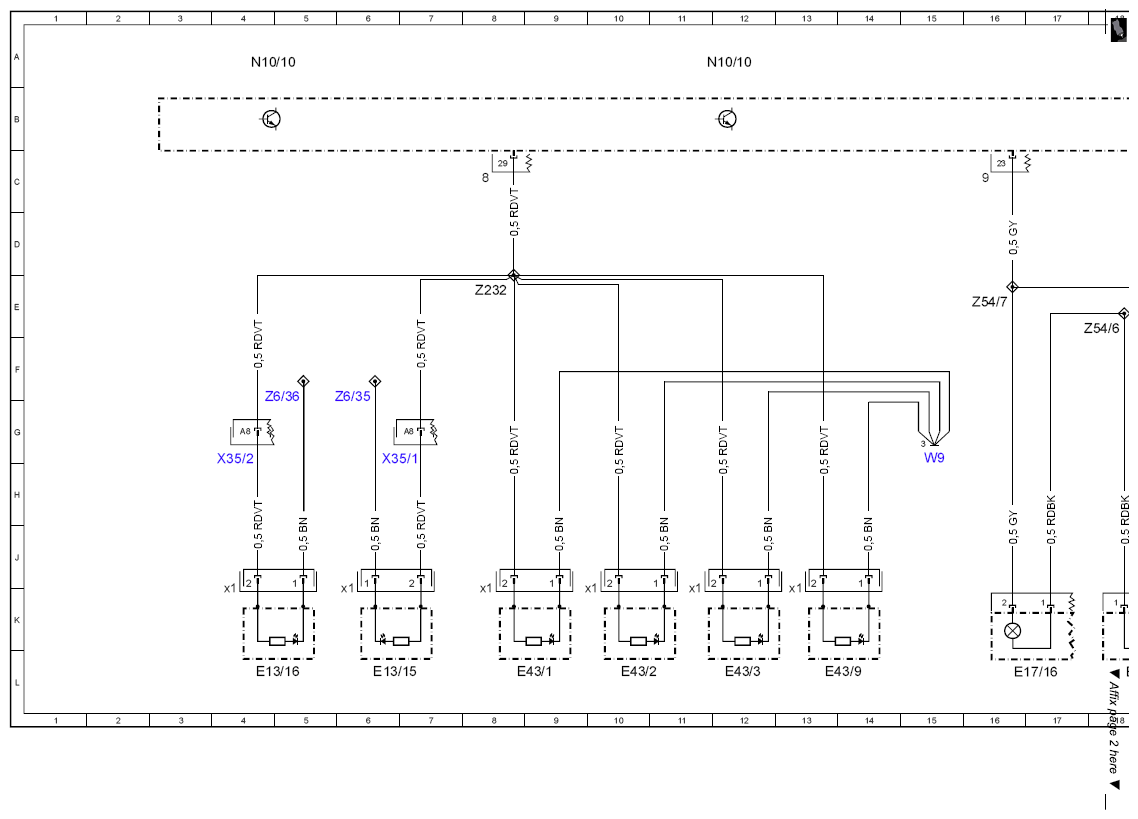

| E13/15 |
Driver door pocket ambiance illumination |
6L |
| E13/15 |
Driver door pocket ambiance illumination |
|
| E13/16 |
Front passenger door pocket ambiance illumination |
4L |
| E13/16x1 |
Front passenger door pocket ambiance illumination connector |
|
| E17/16 |
Left front footwell lamp |
16L |
| E17/16 |
Left front footwell lamp |
18L |
| E43/1 |
Left cockpit ambiance illumination |
9L |
| E43/1x1 |
Left cockpit ambiance illumination connector |
|
| E43/2 |
Center cockpit ambiance illumination |
10L |
| E43/2x1 |
Center cockpit ambiance illumination connector |
|
| E43/3 |
Right cockpit ambiance illumination |
12L |
| E43/3x1 |
Right cockpit ambiance illumination connector |
|
| E43/9 |
Overhead control panel (OCP) ambiance illumination |
13L |
| E43/9x1 |
Overhead control panel (OCP) ambiance illumination connector |
|
| N10/10 |
SAM control unit |
4A |
| N10/10 |
SAM control unit |
12A |
| N10/10 |
SAM control unit |
19A |
| W9 |
Ground (left front, at lamp unit) |
15G |
| X35/1 |
Left door separation point |
6H |
| X35/2 |
Right door separation point |
4H |
| Z232 |
Ambiance illumination supply connector sleeve |
8E |
| Z54/6 |
Circuit 30 footwell lamp connector sleeve |
18E |
| Z54/7 |
Footwell lamps connector sleeve |
16E |
| Z6/35 |
Left door ground connector sleeve |
6G |
| Z6/36 |
Right door ground connector sleeve |
4G |
