Hands-free system control unit wiring diagram - PE82.70-P-2103-97MCU

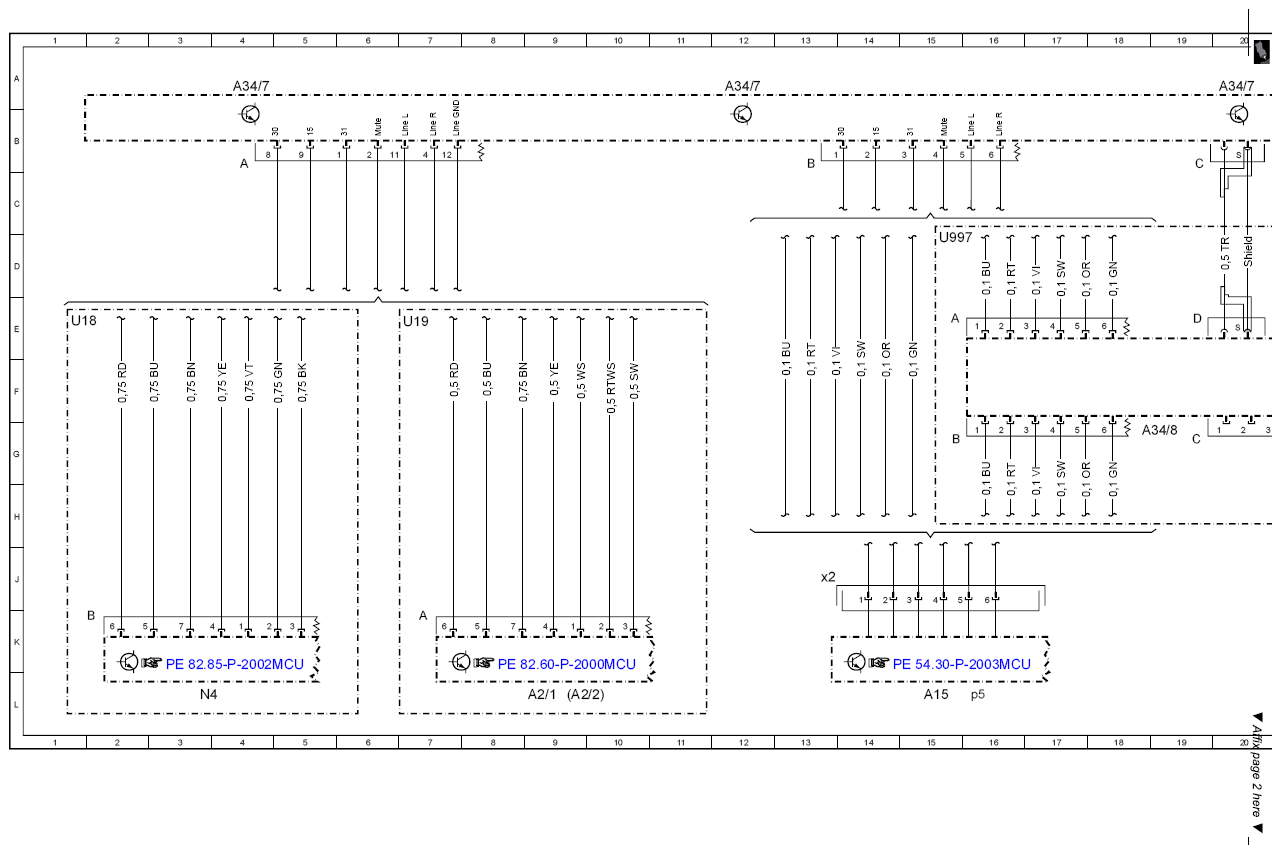

Fig 1: Hands-Free System Control Unit Wiring Diagram (1 Of 2)
G07305091Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

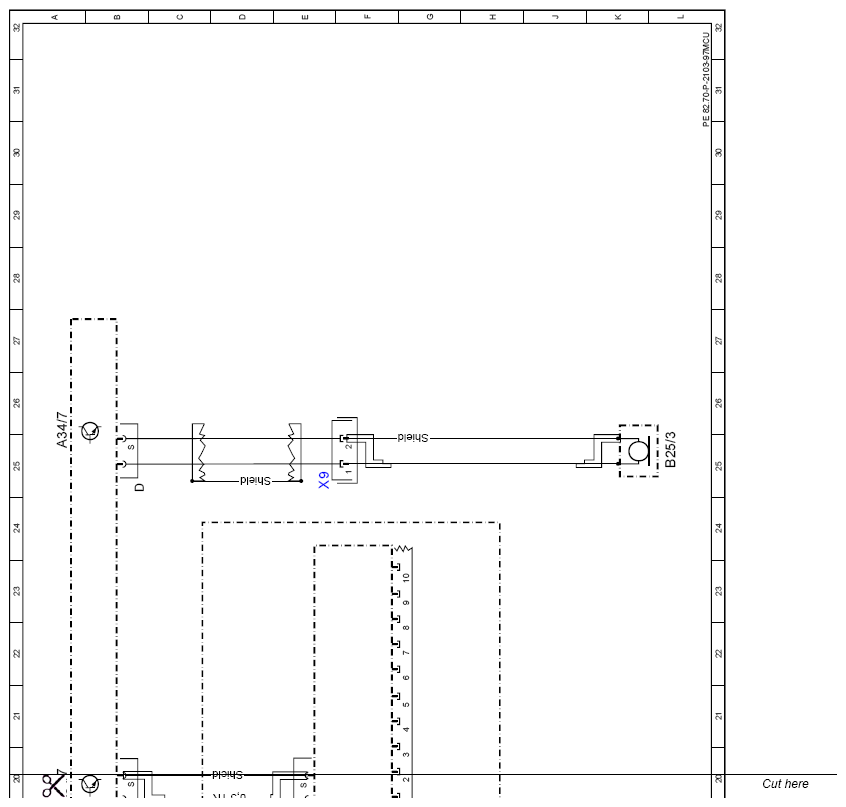

Fig 2: Hands-Free System Control Unit Wiring Diagram (2 Of 2)
G07305092Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
