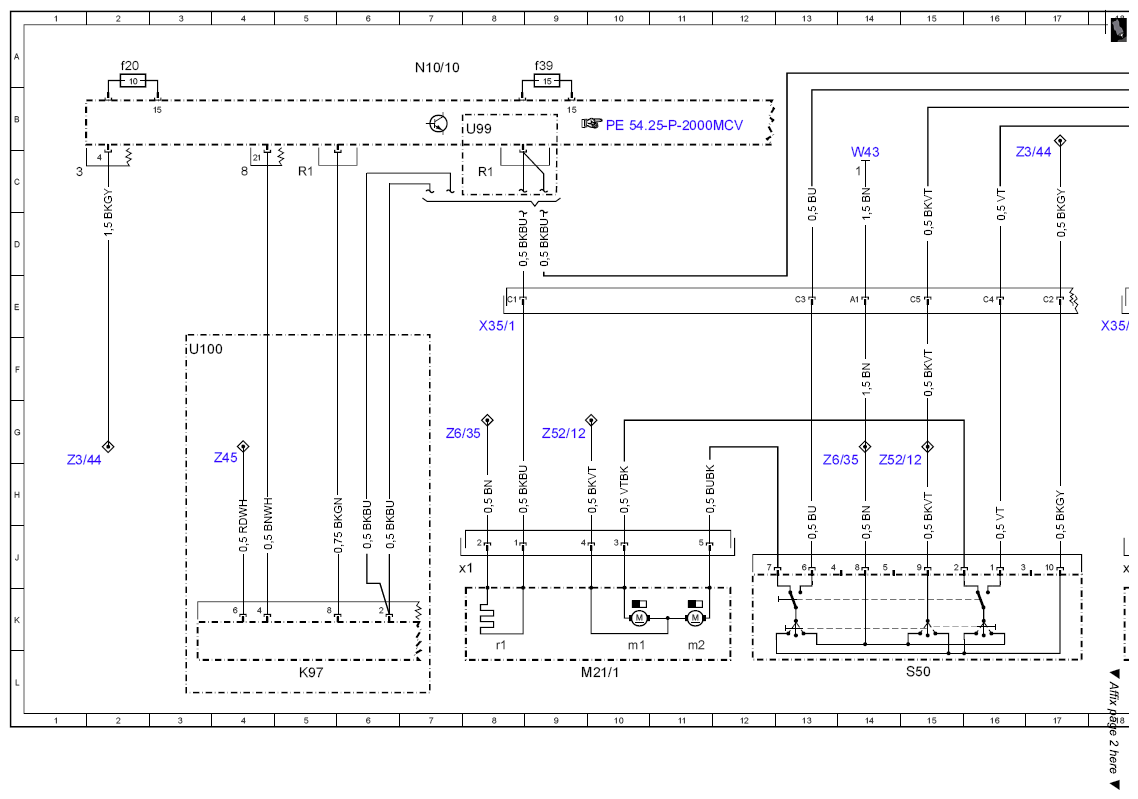

| M21/1 |
Left electrically adjustable and heated exterior mirror |
10L |
| M21/1m1 |
Mirror up/down adjustment motor |
|
| M21/1m2 |
Mirror in/out adjustment motor |
|
| M21/1r1 |
Mirror heater |
|
| M21/1x1 |
Left electrically adjustable and heated exterior mirror connector |
|
| M21/2 |
Right electrically adjustable and heated exterior mirror |
20L |
| M21/2m1 |
Mirror up/down adjustment motor |
|
| M21/2m2 |
Mirror in/out adjustment motor |
|
| M21/2r1 |
Mirror heater |
|
| M21/2x1 |
Right electrically adjustable and heated exterior mirror connector |
|
| N10/10 |
SAM control unit |
7A |
| N10/10f20 |
Fuse 20 |
2A |
| N10/10f37 |
Fuse 37 |
|
| S50 |
Outside rearview mirror adjustment switch |
15L |
| W43 |
Ground (outside left fire wall) |
22C |
| W43 |
Ground (outside left fire wall) |
14C |
| X35/1 |
Left door separation point |
8E |
| X35/2 |
Right door separation point |
18E |
| Z3/44 |
Instrument cluster - radio circuit 15 connector sleeve (fused) |
1H |
| Z3/44 |
Instrument cluster - radio circuit 15 connector sleeve (fused) |
17C |
| Z52/12 |
Mirror adjustment connector sleeve |
15H |
| Z52/12 |
Mirror adjustment connector sleeve |
9G |
| Z6/35 |
Left door ground connector sleeve |
14H |
| Z6/35 |
Left door ground connector sleeve |
8G |
| Z6/36 |
Right door ground connector sleeve |
21G |
