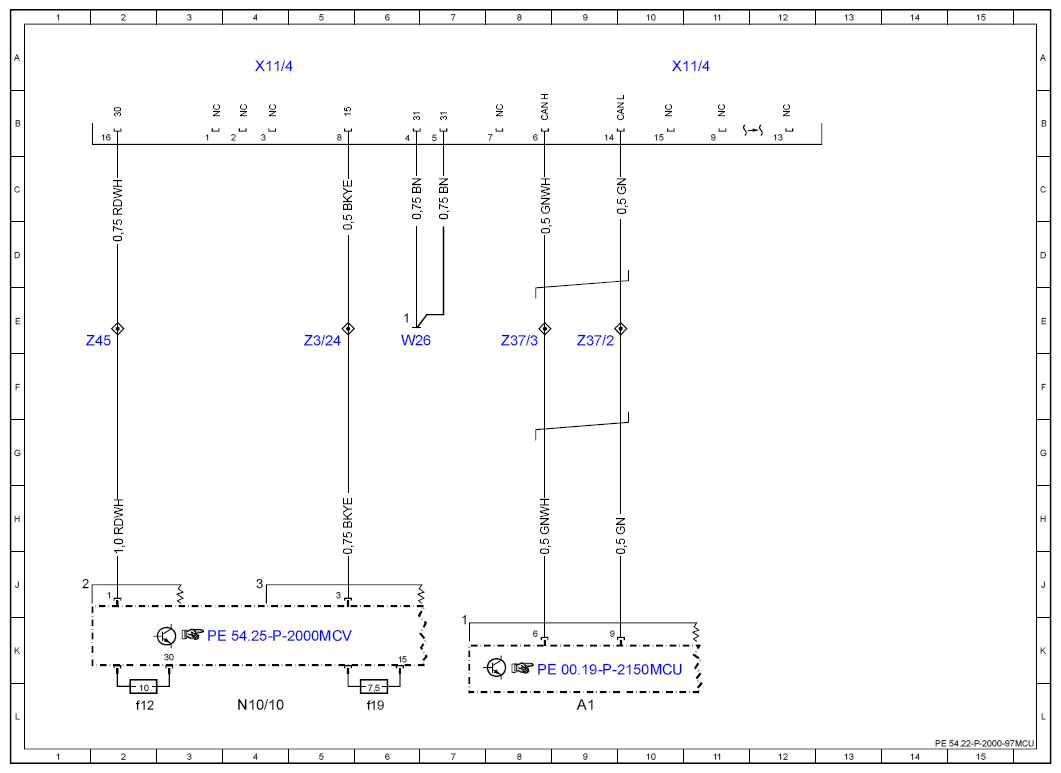

Wiring diagram for data link connector/diagnostic socket - PE54.22-P-2000-97MCU
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 9L |
| N10/10 | SAM control unit | 4L |
| N10/10f12 | Fuse 12 | 2L |
| N10/10f19 | Fuse 19 | 6L |
| W26 | Ground (transmission tunnel) | 6E |
| X11/4 | Data link connector | 11A |
| X11/4 | Data link connector | 4A |
| Z3/24 | Circuit 15 (fused) connector sleeve, function | 5E |
| Z37/2 | CAN engine bus (low) connector sleeve | 9E |
| Z37/3 | CAN engine bus (high) connector sleeve | 8E |
| Z45 | ATA [EDW] sensor supply circuit 30 connector sleeve | 2E |
