| A1 |
Instrument cluster |
21L |
| A2/3 |
smart Entry radio |
36L |
| A2/4 |
smart Premium radio |
37L |
| E3 |
Left taillamp |
16L |
| E3e3 |
Left backup lamp |
16L |
| E4 |
Right taillamp |
18L |
| E4e3 |
Right backup lamp |
18L |
| L2 |
Transmission RPM sensor |
42L |
| M17/3 |
Transmission motor 1 |
25L |
| M17/4 |
Transmission motor 2 |
29L |
| M18 |
Clutch motor |
33L |
| N10/10 |
SAM control unit |
5L |
| N10/10f10 |
Fuse 10 |
4L |
| N10/10f12 |
Fuse 12 |
6L |
| N10/10f19 |
Fuse 19 |
|
| N10/10f24 |
Fuse 24 |
9L |
| N10/10f30 |
Fuse 30 |
3L |

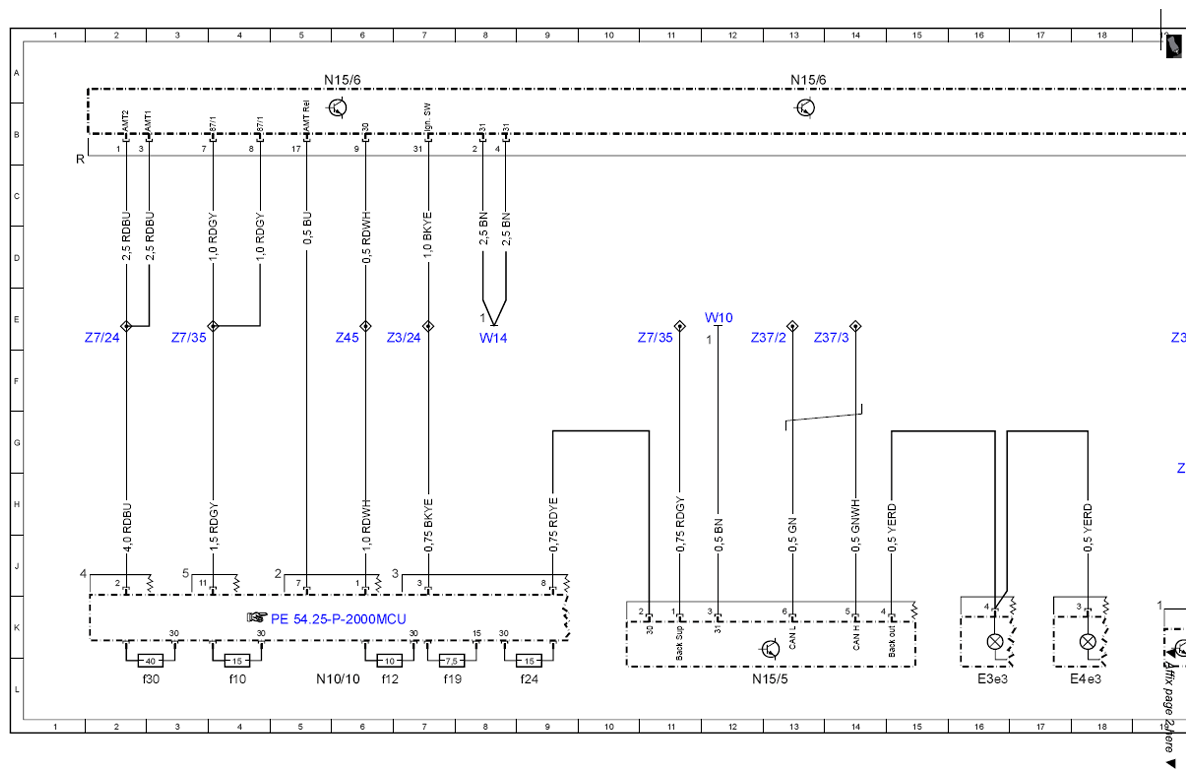

| N15/5 |
Electronic selector lever module control unit |
12L |

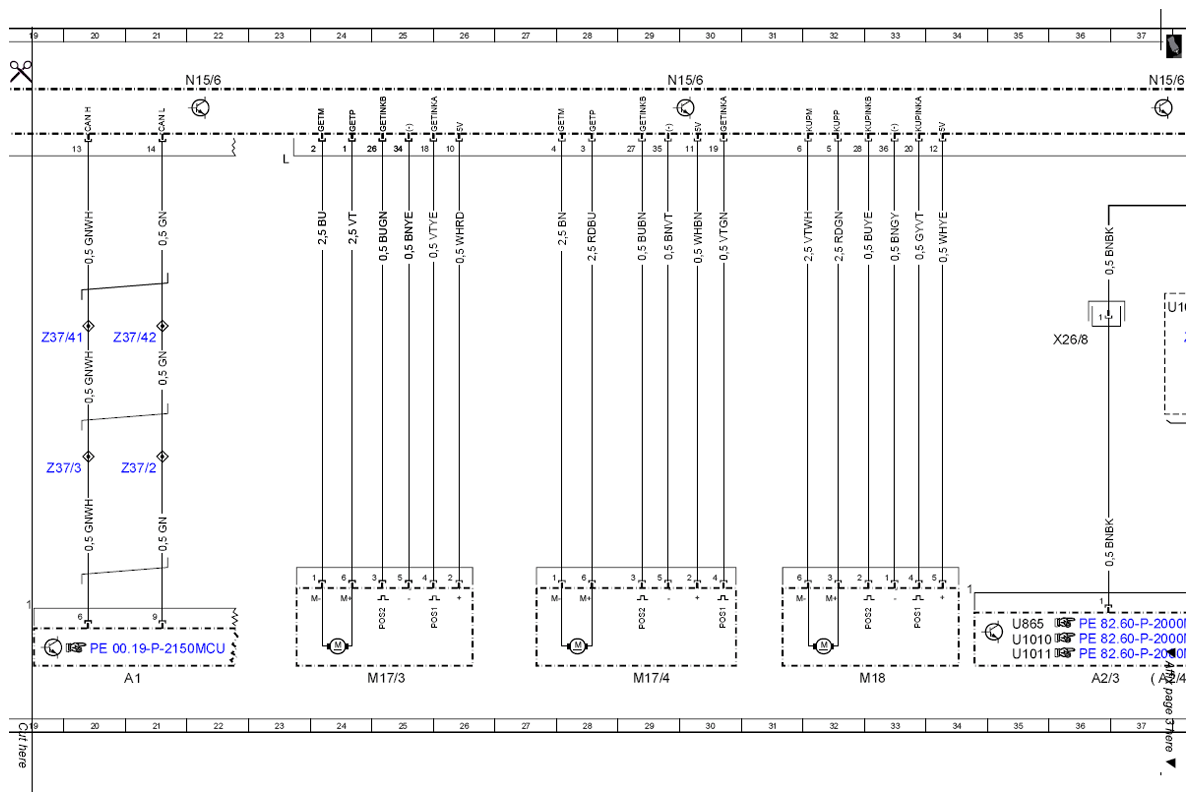

| N15/6 |
Automated manual transmission control unit |
22A |
| N15/6 |
Automated manual transmission control unit |
29A |
| N15/6 |
Automated manual transmission control unit |
6A |
| N15/6 |
Automated manual transmission control unit |
13A |
| N15/6 |
Automated manual transmission control unit |
37A |

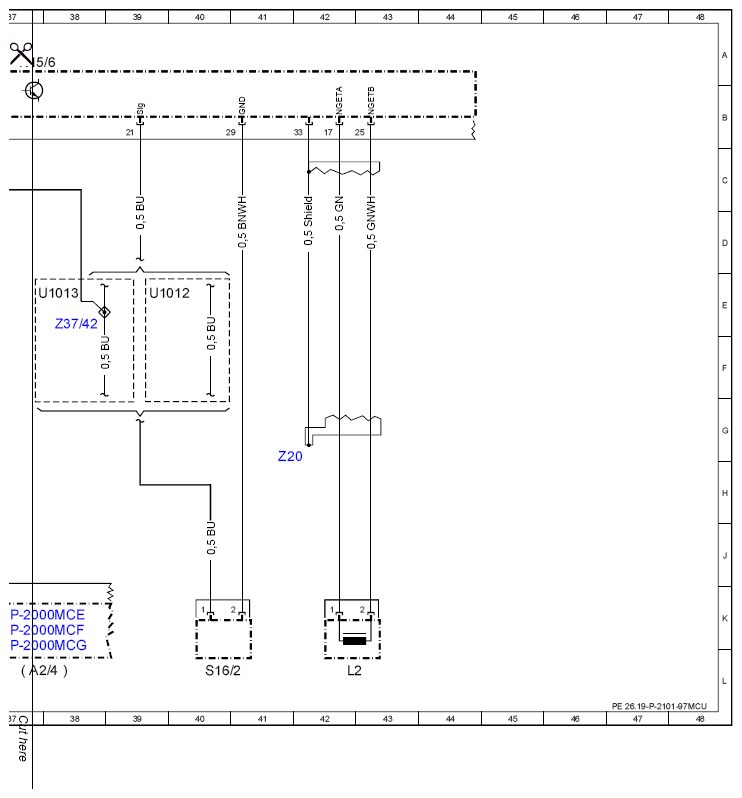

| S16/2 |
Park pawl switch |
40L |
| U1010 |
Valid for radio with Premium sound system |
35K |
| U1011 |
Valid for radio without Premium sound system |
35L |
| U1012 |
Valid up to 30/08/2010 |
39E |
| U1013 |
Valid as of 31/08/2010 |
38E |
| U865 |
Valid for Entry radio |
35K |
| W10 |
Ground (battery) |
12E |
| W14 |
Left floor interior compartment ground |
8E |
| Z20 |
Connector sleeve cable end insulation not stripped, placed inside insulated tubing |
41G |
| Z3/24 |
Circuit 15 (fused) connector sleeve, function |
7E |
| Z37/2 |
CAN engine bus (low) connector sleeve |
13E |
| Z37/2 |
CAN engine bus (low) connector sleeve |
21G |
| Z37/3 |
CAN engine bus (high) connector sleeve |
14E |
| Z37/3 |
CAN engine bus (high) connector sleeve |
20G |
| Z37/41 |
CAN databus (high) connector sleeve |
19E |
| Z37/42 |
CAN bus (low) connector sleeve |
21E |
| Z37/42 |
CAN bus (low) connector sleeve |
38E |
| Z45 |
ATA [EDW] sensor supply circuit 30 connector sleeve |
6E |
| Z7/24 |
Circuit 87/1 connector sleeve |
2E |
| Z7/35 |
Circuit 87 M1e connector sleeve |
11E |
| Z7/35 |
Circuit 87 M1e connector sleeve |
3E |
