Wiring diagram of CAN bus - PE00.19-P-2150-97MCU

Code:	Designation:	Position:
A1	Instrument cluster	44A
A1	Instrument cluster	28A
A1	Instrument cluster	52A
A1	Instrument cluster	37A
A1	Instrument cluster	4A
A1	Instrument cluster	20A
A1	Instrument cluster	12A
B24/15	Yaw rate, lateral and longitudinal acceleration sensor	30L
N10/10	SAM control unit	8L
N110	Weight Sensing System (WSS) control unit	47L
N15/5	Electronic selector lever module control unit	23L
N15/6	Automated manual transmission control unit	19L
N2/7	Restraint systems control unit	43L
N23	Heater/AC operating unit	38L
N3/10	ME-SFI [ME] control unit	3L
N47-5	ESP control unit	34L
N49	Steering angle sensor	26L
N68	Steering assist control unit	14L
N88	TPM [RDK] control unit	54L
U1012	Valid up to 30/08/2010	41K
U1012	Valid up to 30/08/2010	46K
U1013	Valid as of 31/08/2010	41L
U1013	Valid as of 31/08/2010	46L
U492	Valid for power steering	10D
U493	Not valid for power steering	8D
U87	Valid for air conditioning	37D
X11/4	Data link connector	51L
X55/4	Front passenger seat connector block	46G
Z37/2	CAN engine bus (low) connector sleeve	55E
Z37/2	CAN engine bus (low) connector sleeve	23E
Z37/2	CAN engine bus (low) connector sleeve	51E
Z37/2	CAN engine bus (low) connector sleeve	43E
Z37/2	CAN engine bus (low) connector sleeve	40E
Z37/2	CAN engine bus (low) connector sleeve	27E
Z37/2	CAN engine bus (low) connector sleeve	34E
Z37/3	CAN engine bus (high) connector sleeve	54E
Z37/3	CAN engine bus (high) connector sleeve	22E
Z37/3	CAN engine bus (high) connector sleeve	50E
Z37/3	CAN engine bus (high) connector sleeve	42E
Z37/3	CAN engine bus (high) connector sleeve	38E
Z37/3	CAN engine bus (high) connector sleeve	26E
Z37/3	CAN engine bus (high) connector sleeve	33E
Z37/4	Power steering CAN bus connector sleeve (low)	11F
Z37/41	CAN databus (high) connector sleeve	18E
Z37/41	CAN databus (high) connector sleeve	33G
Z37/41	CAN databus (high) connector sleeve	30E
Z37/42	CAN bus (low) connector sleeve	19E
Z37/42	CAN bus (low) connector sleeve	34G
Z37/42	CAN bus (low) connector sleeve	31E
Z37/5	Power steering CAN bus connector sleeve (high)	10F

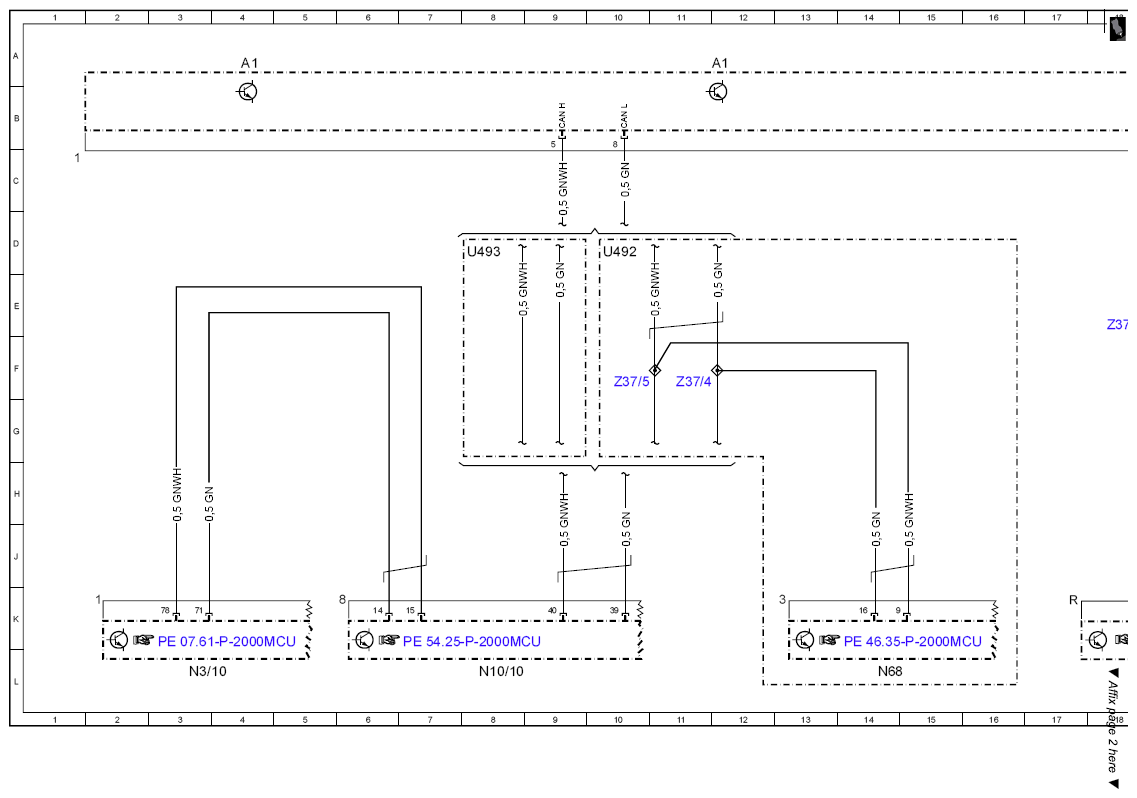

Fig 1: CAN Bus - Wiring Diagram (1 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

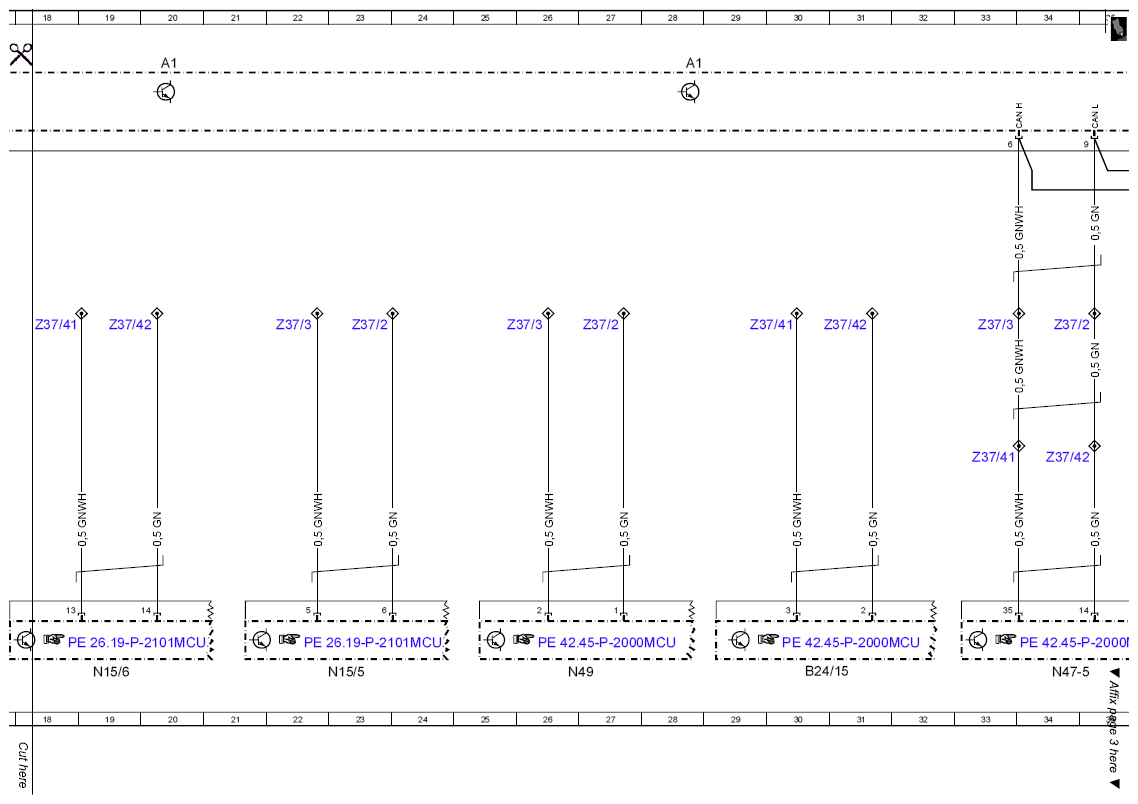

Fig 2: CAN Bus - Wiring Diagram (2 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

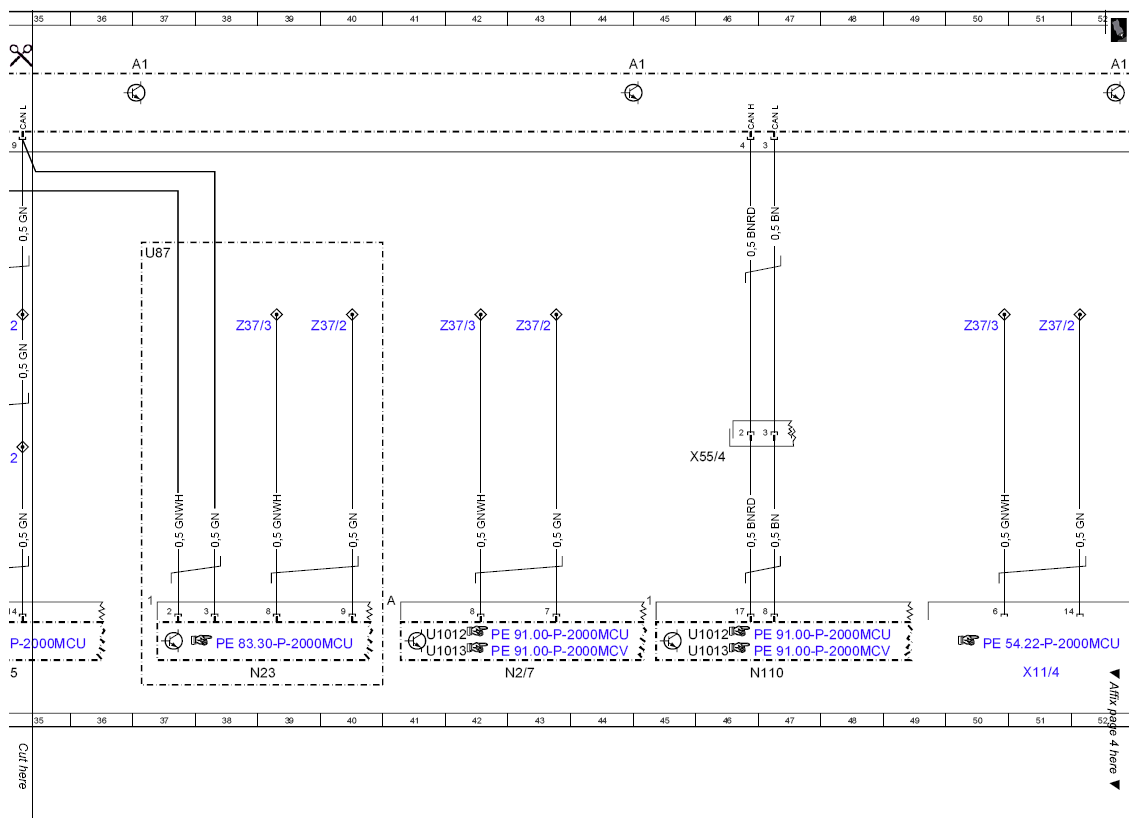

Fig 3: CAN Bus - Wiring Diagram (3 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

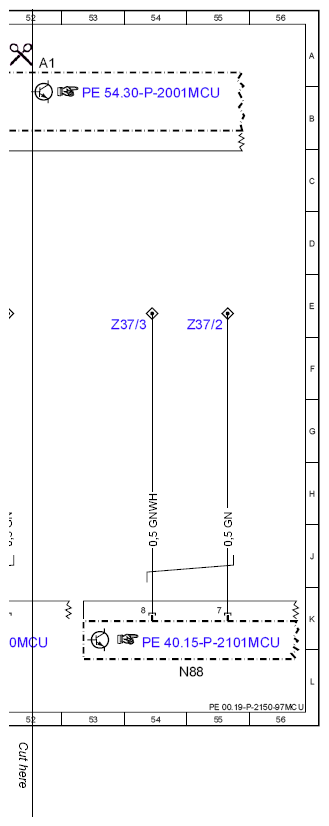

Fig 4: CAN Bus - Wiring Diagram (4 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
