Location and assignment of Z-connector sleeves (line connectors in wiring harness)- rear - GF00.19-P-3000-19MCU

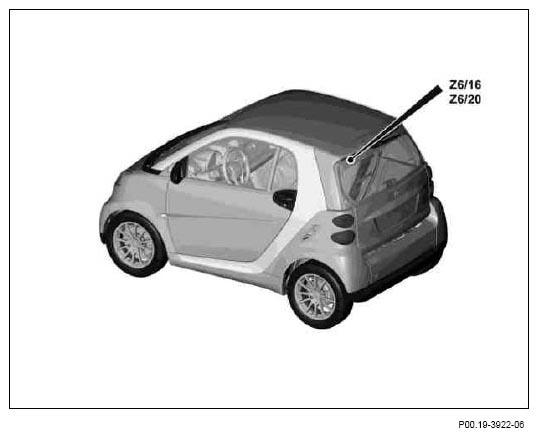

Fig 1: Locating Z Connector Sleeves - Rear

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Z connector sleeve	Designation	Component	Designation	Connector. Pin
Z6/16	Soft top ground connector sleeve Convertible
		→ E21	Center high-mounted stop lamp	2
		→ R1	Rear window defroster	2
		→ S84/37	Soft top microswitch	1
		→ S84/40	Right roof cassette microswitch	1
		→ S84/41	Left rear soft top microswitch	1
	Plug 1	→ X23/7	Soft top connector	4
Z6/20	Trunk lid ground connector sleeve Not convertible
		→ E21	Center high-mounted stop lamp	2
		→ M6/4	Tailgate wiper motor	3
		→ R1	Rear window defroster	2
	Connector 2	→ X18/19	Trunk lid connector	2
