Location and assignment of Z connector sleeves (line connectors in wiring harness) - left footwell - GF00.19-P-3000-17MCU

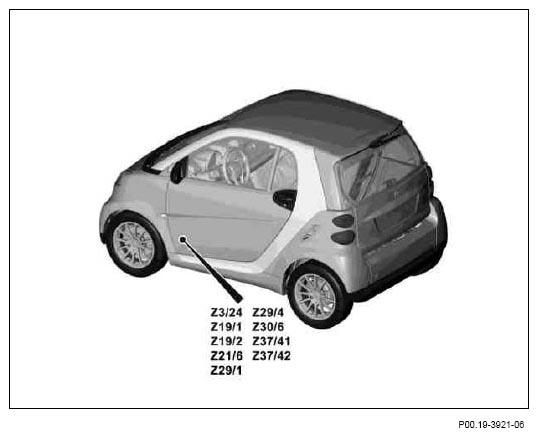

Fig 1: Locating Z Connector Sleeves - Left Footwell

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Z connector sleeve	Designation	Component	Designation	Connector. Pin
Z3/24	Circuit 15 (fused) connector sleeve, function
		← N10/10	SAM control unit	3.3
		→ N3/10	ME-SFI [ME] control unit	1.65
		→ N15/6	Automated manual transmission control unit	R.31
		→ N88	TPM [RDK] control unit	5
		→ X11/4	Data link connector	8
Z19/2	CL [ZV] "closed" connector sleeve
		← N10/10	SAM control unit	10.4
		→ M14/10	Fuel filler flap CL [ZV] motor	1
		→ X35/1	Left door separation point	A2
		→ X35/2	Right door separation point	A2
Z21/6	CL [ZV] status "open" connector sleeve
		← N10/10	SAM control unit	8.18
		→ X35/1	Left door separation point	A5
		→ X35/2	Right door separation point	A5
Z29/4	Circuit 58R (fused) connector sleeve
		← N10/10	SAM control unit	5.7
		→ E4	Right taillamp	5
		→ E6/14	Right standing light	1
		→ E19/1	Left license plate lamp	2
Z37/41	CAN databus (high) connector sleeve CAN
		→ B24/15	Turn rate and lateral acceleration sensor	3
		→ N15/6	Automated manual transmission control unit	R.13
		→ N47-5	ESP control unit	35
		→ Z37/3	CAN engine bus (high) connector sleeve
Z37/42	CAN bus (low) connector sleeve CAN
		→ B24/15	Turn rate and lateral acceleration sensor	2
		→ N15/6	Automated manual transmission control unit	R.14
		→ N47-5	ESP control unit	14
		→ Z37/2	CAN engine bus (low) connector sleeve
