Location and assignment of Z connector sleeves (connectors and wiring harness) - trunk left - GF00.19-P-3000-06MCU

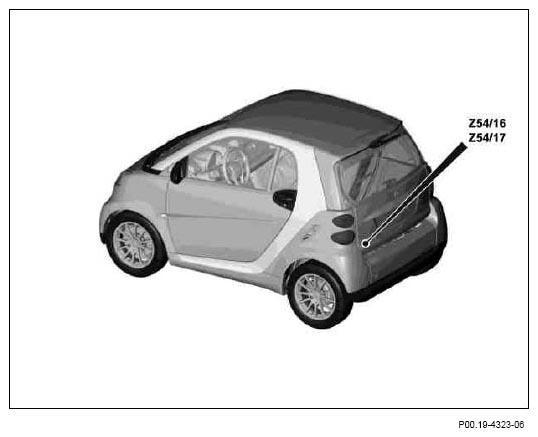

Fig 1: Locating Z Connector Sleeves - Trunk Left

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Z connector sleeve	Designation	Component	Designation	Connector. Pin
Z54/16	Soft top control "open" connector sleeve Convertible
		← K66/1	Open soft top relay	2
	Plug 1	→ X23/7	Soft top connector	11
	Connector 2	→ X23/7	Soft top connector	1
Z54/17	Soft top control "closed" connector sleeve Convertible
		← K66/2	Close soft top relay	2
	Plug 1	→ X23/7	Soft top connector	12
	Connector 2	→ X23/7	Soft top connector	2
