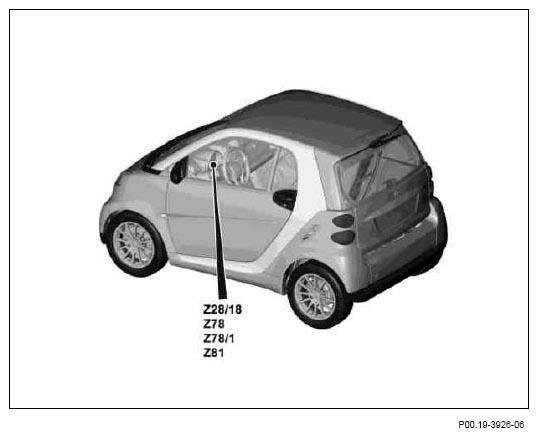

Location and assignment of Z connector sleeves (cable connections in wiring harness) - cockpit - GF00.19-P-3000-03MCU
| Z connector sleeve | Designation | Component | Designation | Connector. Pin |
|---|---|---|---|---|
| Z28/18 | Sound system/antenna control connector sleeve | |||
| → A2/1 | smart radio 9 | A.5 | ||
| → A2/2 | smart radio 10 | A.5 | ||
| Z78 | Cockpit LIN connector sleeve LIN B | |||
| ← N10/10 | SAM control unit | 9.14 | ||
| → A15x1 | Additional instruments connector | 2 | ||
| → B38 | Rain sensor/light sensor | 2 | ||
| Z78/1 | ATA [EDW] LIN connector sleeve ATA [EDW] with siren, LIN C |
|||
| ← N10/10 | SAM control unit | 8.12 | ||
| → B32 | Microwave sensor | 1 | ||
| → N10/10 | SAM control unit | 8.12 | ||
| → H3/2 | Alarm siren with inclination sensor | 3 | ||
| Z81 | Circuit 58d connector sleeve | |||
| ← A1 | Instrument cluster | 1.12 | ||
| → A2/1 | smart radio 9 | A.1 | ||
| → A2/2 | smart radio 10 | A.1 | ||
| → N23 | Heater/AC operating unit | 1.11 | ||
| → S6/1 | Cockpit switch group | 1 | ||
| → X35/1 | Left door separation point | B3 | ||
| → X35/2 | Right door separation point | B3 |
