Remove/install electric power soft top relay - AR54.15-P-1000MCO

30.11.06

MODEL 451.4

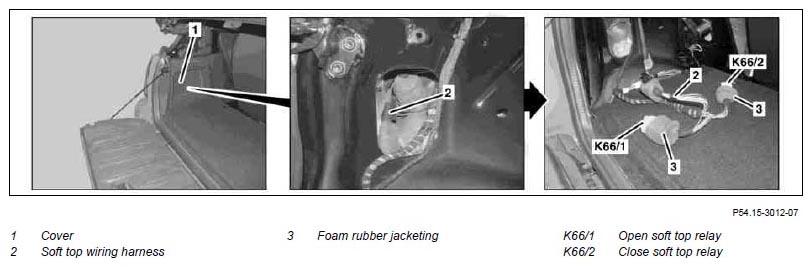

Fig 1: Identifying Electric Power Soft Top Relay Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove cover (1) on the left luggage compartment trim
2	Guide the wiring harness of the soft top (2) out of the body opening and expose
3	Push back the foam casing (3) on the open soft top relay (K66/1) or on the close soft top relay (K66/2)
4	Detach open soft top relay (K66/1) or close soft top relay (K66/2)
5	Install in the reverse order
