Instrument cluster (IC [K]), display instrument and warning systems - GF54.30-P-0002-08MCU

Shown on code (K07) Speedometer (miles)

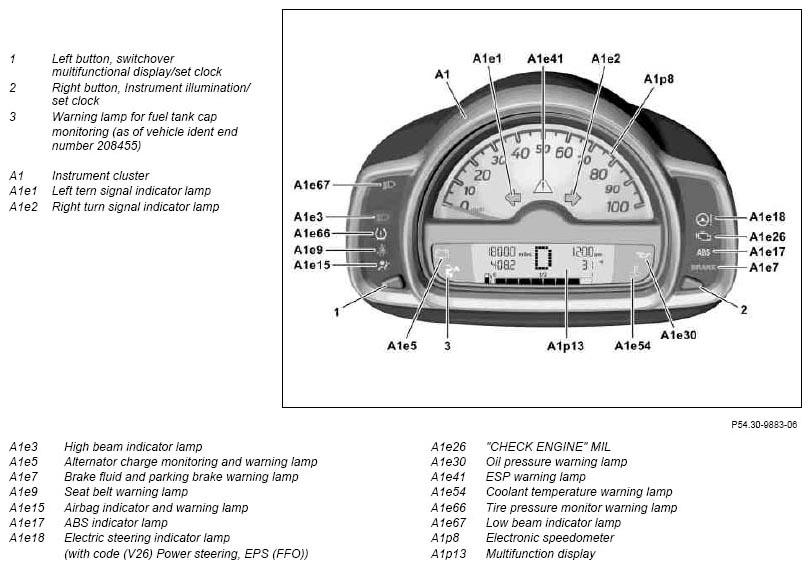

Fig 1: Identifying Instrument Cluster And Warning Switch Systems Displays
G07276134Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
