Fuse assignment of fuses in the interior on passenger side - GF54.15-P-1256-24MCU

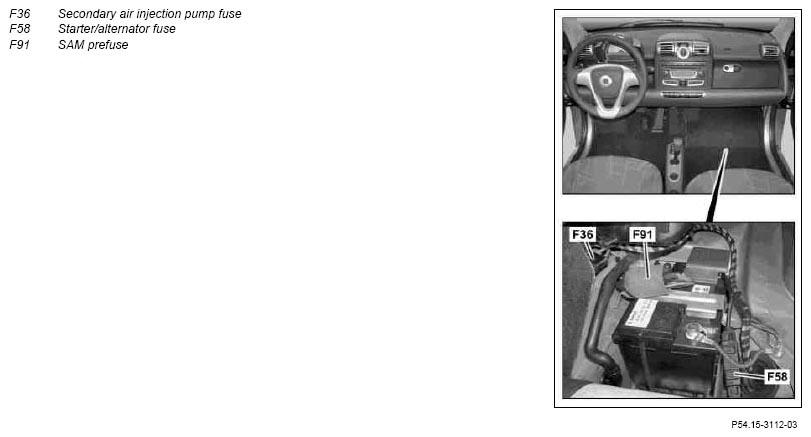

Fig 1: Locating Secondary Air Injection Pump Fuse, Starter/Alternator Fuse And SAM Pre-Fuse

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fuse	Clamping device	Wire Identification	Fused function	Rating in amperes (A)
F36	30	4.0 RD	Secondary air injection pump (M33)	50
F58	30	16.0 RD	Starter (M1), alternator (G2)	200
F91	30	16.0 RD	SAM control unit (N10/10)	100
