Remove/install additional turn signal lamp - AR82.25-P-4726MCC

MODEL 451.3/4

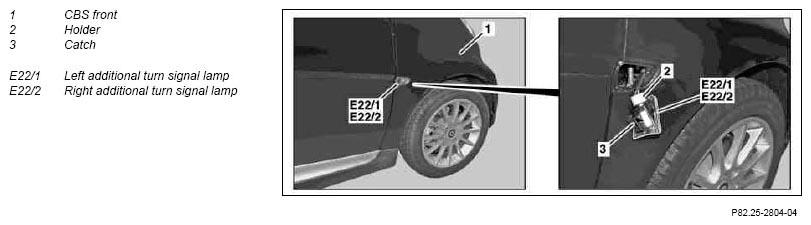

Fig 1: Identifying Additional Turn Signal Lamps, CBS Front, Holder And Catch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Release catch (3) using snap-release tool and remove left additional turn signal lamp (E22/1) or right additional turn signal lamp (22/2) from CBS front (1) until holder (2) is accessible		*452589016300
2	Rotate holder (2) counterclockwise by 90° and take out of left additional turn signal lamp (E22/1) or right additional turn signal lamp (E22/2)	Installation:  Ensure that the holder (2) is snapped into the left additional turn signal lamp (E22/1) or right additional turn signal lamp (E22/2).
3	Install in the reverse order
4	Perform function test on left additional turn signal lamp (E22/1) or right additional turn signal lamp (E22/2)

Fig 2: Identifying Snap-Release Tool (452 589 01 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
