| E21 |
Center high-mounted stop lamp |
14L |

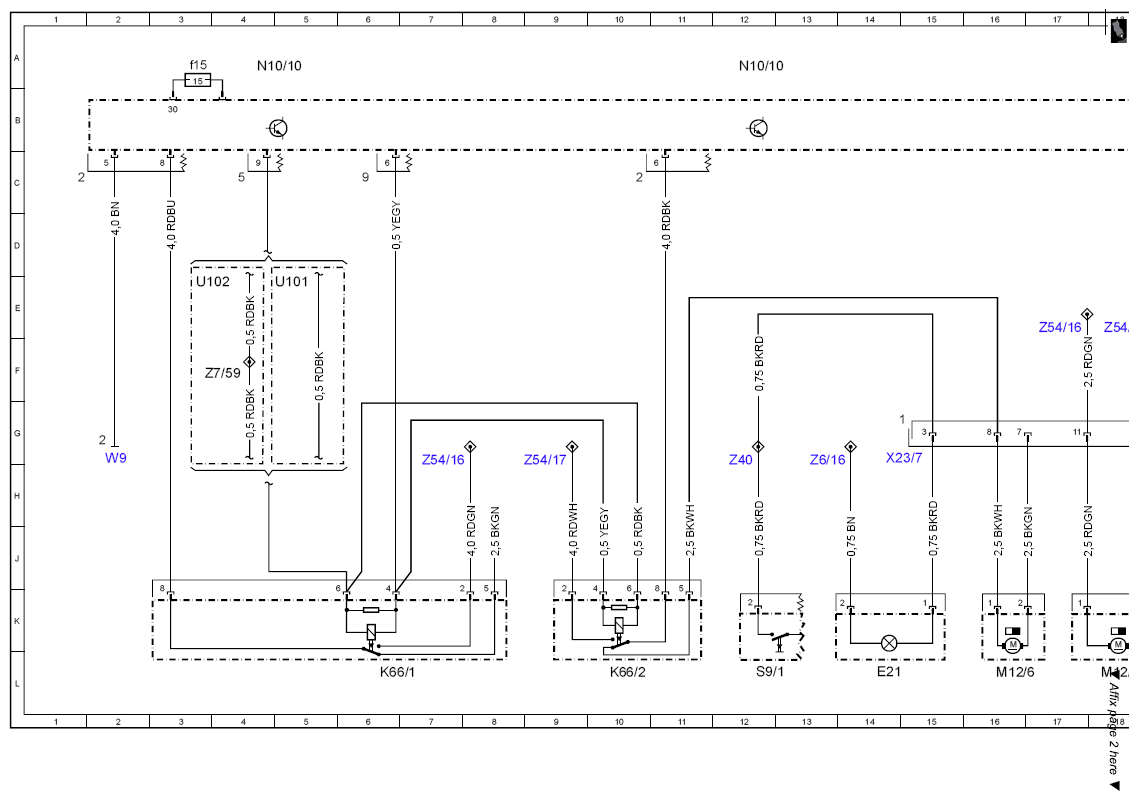

| K66/1 |
Open soft top relay |
6L |
| K66/2 |
Close soft top relay |
10L |
| M12/6 |
Electric soft top motor |
16L |
| M12/7 |
Left soft top drive |
18L |
| M12/8 |
Right soft top drive |
33L |
| N10/10 |
SAM control unit |
39A |
| N10/10 |
SAM control unit |
20A |
| N10/10 |
SAM control unit |
12A |
| N10/10 |
SAM control unit |
4A |
| N10/10 |
SAM control unit |
28A |
| N10/10f15 |
Fuse 15 |
3A |
| N10/10f20 |
Fuse 20 |
37A |
| N10/10f28 |
Fuse 28 |
34A |
| R1 |
Heated rear window |
35L |

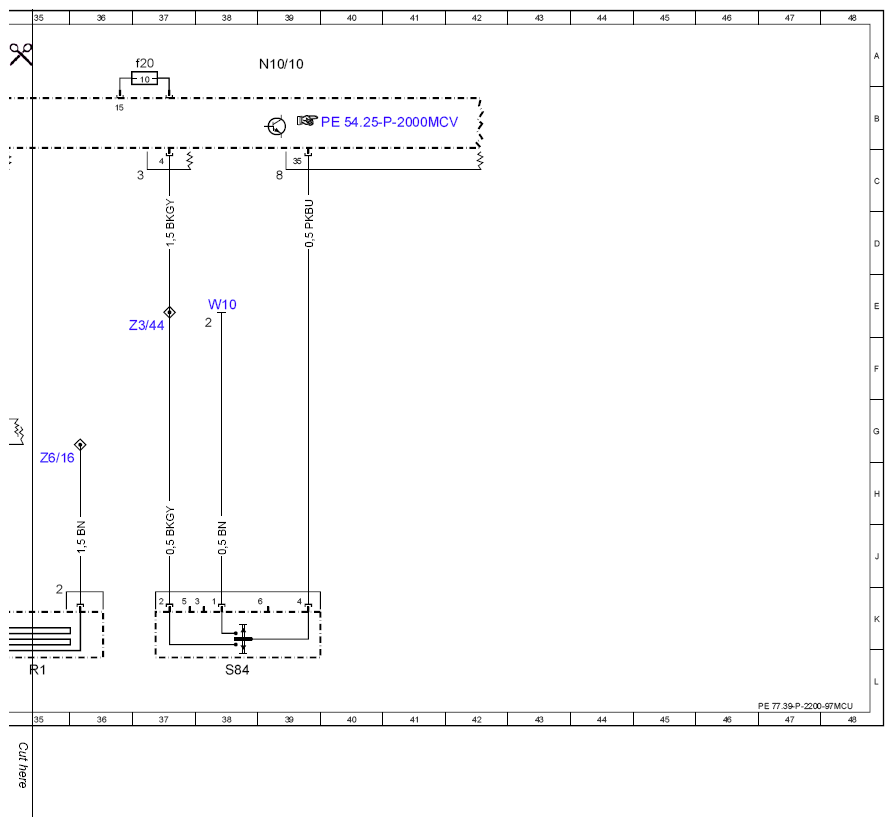

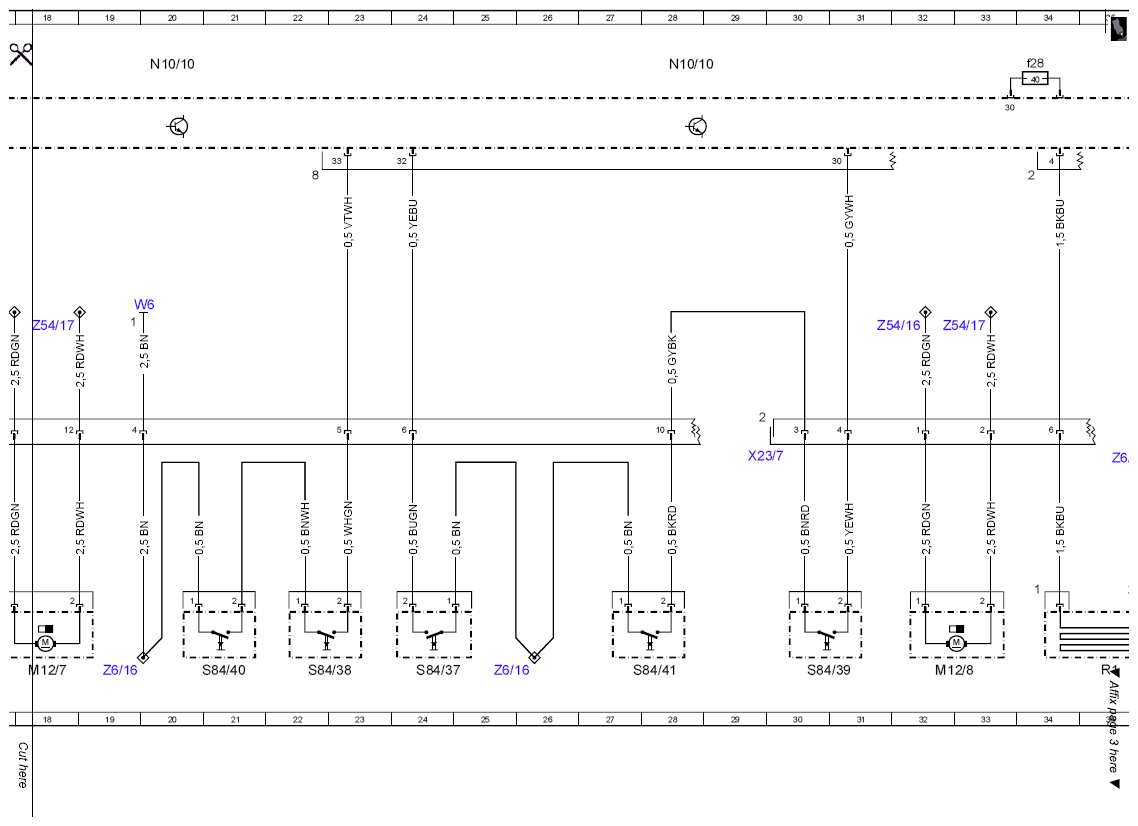

| S84 |
Power soft top switch |
38L |
| S84/37 |
Soft top microswitch |
24L |
| S84/38 |
Left roof cassette microswitch |
23L |
| S84/39 |
Right rear soft top microswitch |
31L |
| S84/40 |
Right roof cassette microswitch |
21L |
| S84/41 |
Left rear soft top microswitch |
28L |
| S9/1 |
Stop lamp switch |
12L |
| U101 |
Valid up to 02/2009 |
5E |
| U102 |
Valid as of 03/2009 |
3E |
| W10 |
Ground (battery) |
38E |
| W6 |
Ground (left wheelhouse in luggage compartment) |
19E |
| W9 |
Ground (left front, at lamp unit) |
2G |
| X23/7 |
Soft top connector |
30G |
| X23/7 |
Soft top connector |
15G |
| Z3/44 |
Instrument cluster - radio circuit 15 (fused) connector sleeve |
37E |
| Z40 |
Stop lamp signal connector sleeve |
12H |
| Z54/16 |
Soft top control "open" connector sleeve |
32E |
| Z54/16 |
Soft top control "open" connector sleeve |
17E |
| Z54/16 |
Soft top control "open" connector sleeve |
7H |
| Z54/17 |
Soft top control "closed" connector sleeve |
33E |
| Z54/17 |
Soft top control "closed" connector sleeve |
18E |
| Z54/17 |
Soft top control "closed" connector sleeve |
9H |
| Z6/16 |
Soft top ground connector sleeve |
25L |
| Z6/16 |
Soft top ground connector sleeve |
35H |
| Z6/16 |
Soft top ground connector sleeve |
19L |
| Z6/16 |
Soft top ground connector sleeve |
13H |
| Z7/59 |
Tml. 30 connector sleeve |
4F |
