Remove/install battery - AR54.10-P-0005MCC

MODEL 451.3## /4## 1# with CODE (LHD) Left-hand drive vehicle

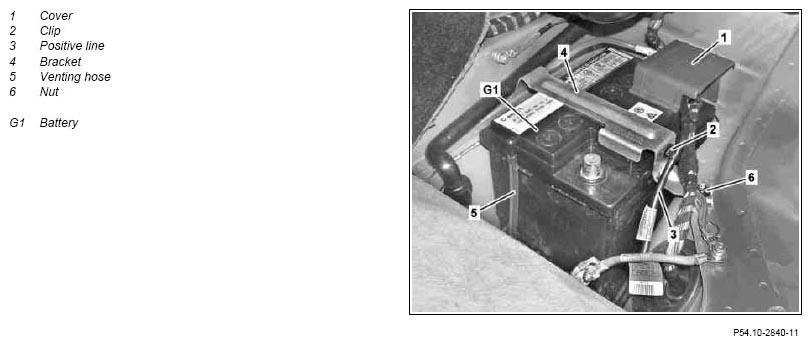

Fig 1: Identifying Battery Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Disconnect battery ground line		AR54.10-P-0003MCC
2	Take off cover (1)
3	Disconnect positive line (3) from battery (G1)
4	Remove clip (2) of the positive line (3) on the bracket (4)	Installation:  Replace clip (2).
5	Remove nut (6) and take off bracket (4)	Installation:  Replace self-locking nut (6)
6	Detach vent hose (5) from battery (G1)
7	Remove battery (G1)	If the battery (G1) is replaced, the defective battery (G1) must be disposed of correctly. See: ↓
		Dispose of battery	OS54.10-P-0001-01Z
8	Install in the reverse order
