Fuse and relay box relay assignment - GF54.15-P-1255-21MCU

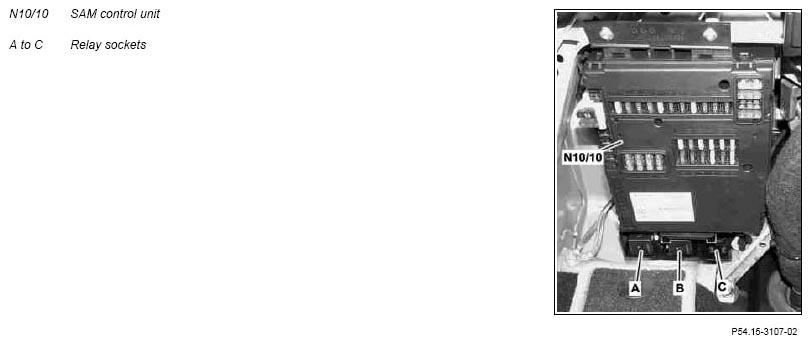

Fig 1: Identifying SAM Control Unit And Relay Sockets
G07276127Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Position Relay Switched function
A K52/11 Left turn signal/stop lamp relay
B K52/12 Right turn signal/stop lamp relay
C K97 Mirror heater relay (with code (V21) Electrically adjustable and heated outside mirrors (FFO))
