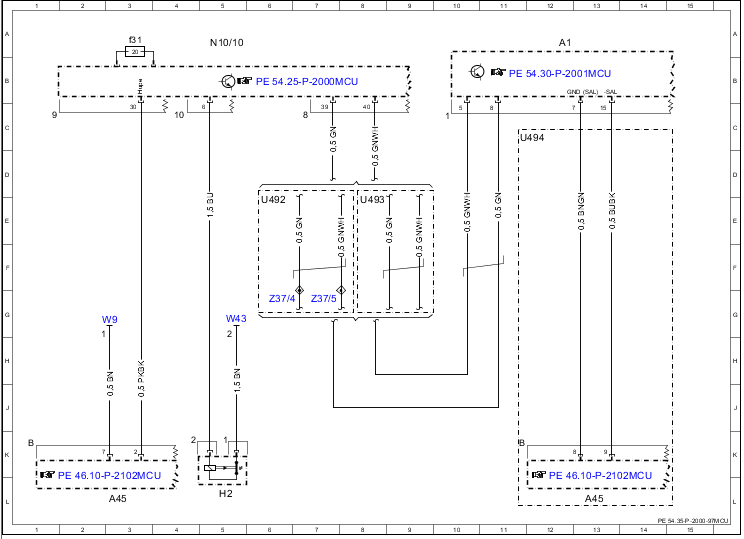

Wiring diagram for signaling system - PE54.35-P-2000-97MCU
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 12A |
| A45 | Fanfare horns and airbag clock spring contact | 3L |
| A45 | Fanfare horns and airbag clock spring contact | 13L |
| H2 | Horn | 5L |
| N10/10 | SAM control unit | 5A |
| N10/10f31 | Fuse 31 | 3A |
| U492 | Valid for power steering | 6E |
| U493 | Not valid for power steering | 8E |
| U494 | Valid for SAL | 11C |
| W43 | Ground (outside left fire wall) | 5G |
| W9 | Ground (left front, at lamp unit) | 3G |
| Z37/4 | Power steering CAN bus connector sleeve (low) | 6G |
| Z37/5 | Power steering CAN bus connector sleeve (high) | 7G |
