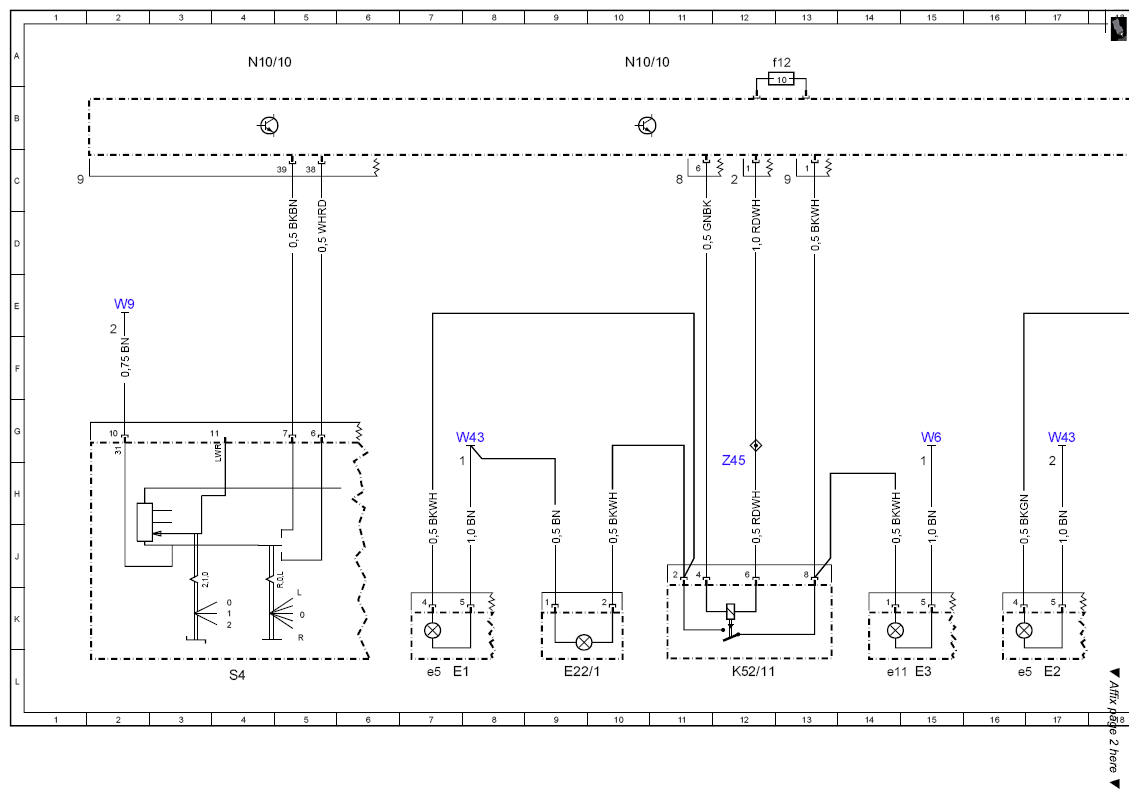

| E1 |
Left front headlamp unit |
7L |
| E1e5 |
Left turn signal lamp |
|
| E2 |
Right front headlamp unit |
17L |

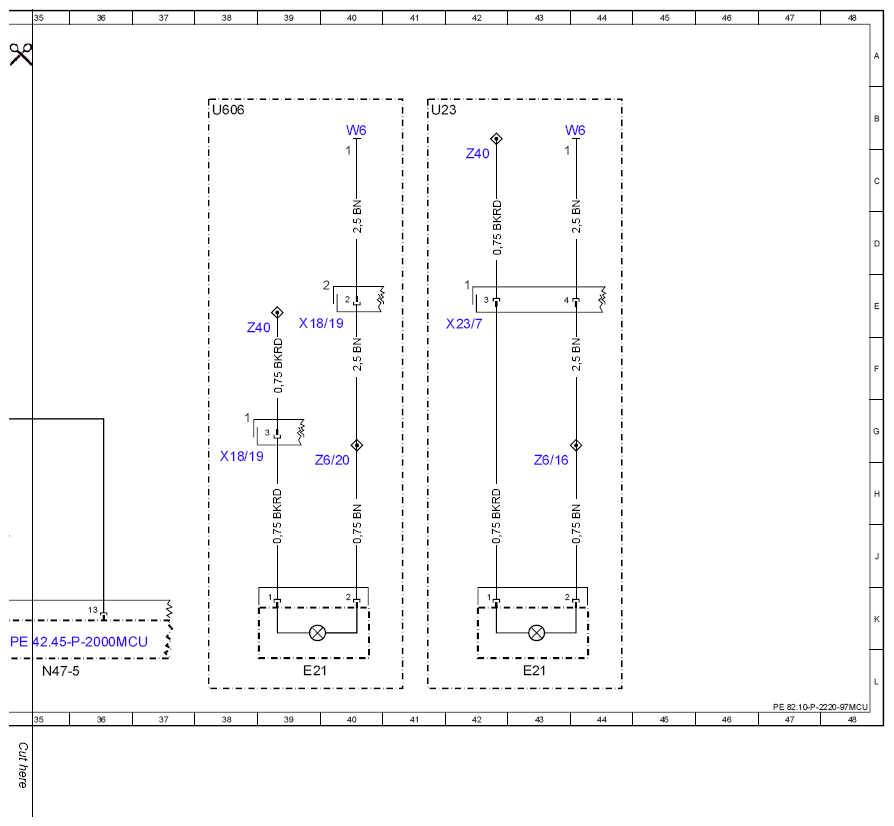

| E21 |
Center high-mounted stop lamp |
43L |
| E21 |
Center high-mounted stop lamp |
39L |
| E22/1 |
Left auxiliary turn signal lamp |
9L |

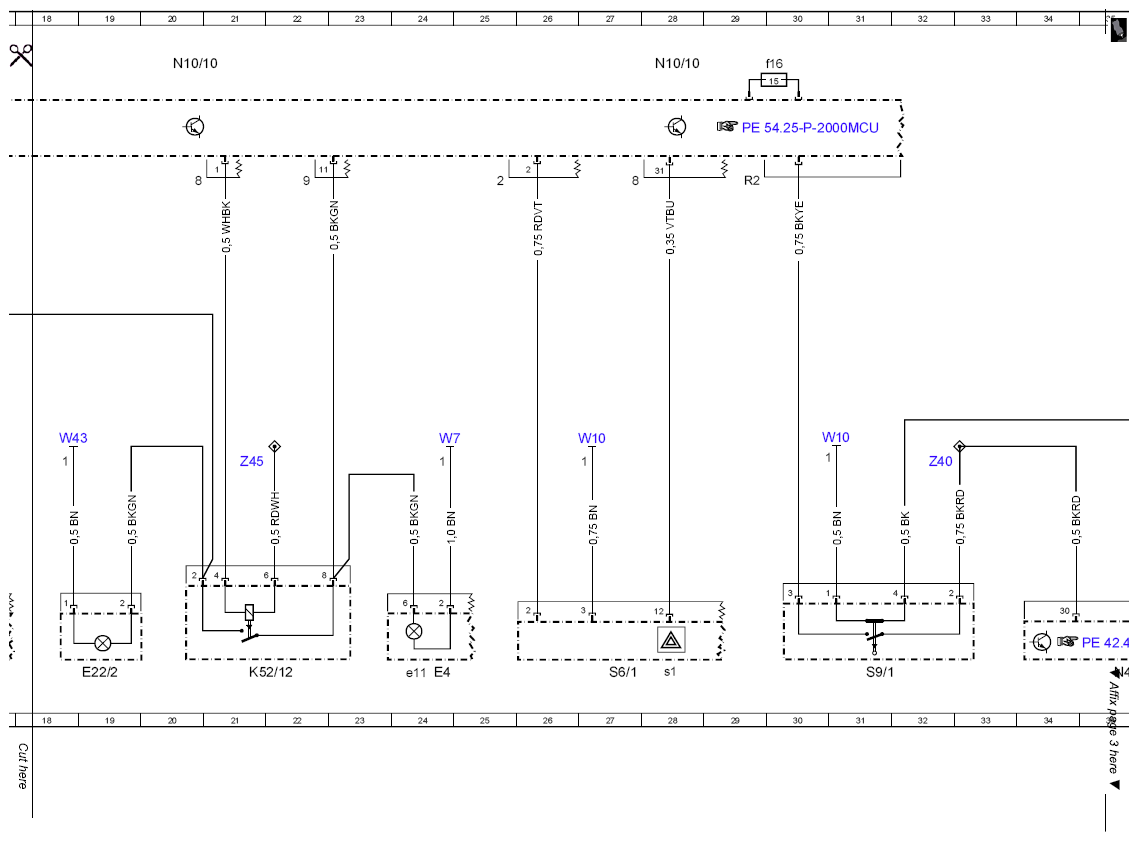

| E22/2 |
Right auxiliary turn signal lamp |
19L |
| E2e5 |
Right turn signal lamp |
|
| E3 |
Left taillamp |
15L |
| E3e11 |
Left brake/turn signal light |
|
| E4 |
Right taillamp |
24L |
| E4e11 |
Right brake/turn signal light |
|
| K52/11 |
Left turn signal/stop lamp relay |
12L |
| K52/12 |
Right turn signal/stop lamp relay |
21L |
| N10/10 |
SAM control unit |
20A |
| N10/10 |
SAM control unit |
10A |
| N10/10 |
SAM control unit |
28A |
| N10/10 |
SAM control unit |
4A |
| N10/10f12 |
Fuse 12 |
13A |
| N10/10f38 |
Fuse 38 |
|
| N47-5 |
ESP control module |
35L |
| S4 |
Combination switch |
4L |
| S6/1 |
Cockpit switch group |
27L |
| S6/1s1 |
Hazard flasher switch |
|
| S9/1 |
Stop lamp switch (4-pin) |
31L |
| U23 |
Valid for cabriolet |
41B |
| U606 |
Valid for all except convertibles |
38B |
| W10 |
Ground (battery) |
31G |
| W10 |
Ground (battery) |
27G |
| W43 |
Ground (outside left fire wall) |
18G |
| W43 |
Ground (outside left fire wall) |
17G |
| W43 |
Ground (outside left fire wall) |
8G |
| W6 |
Ground (left wheelhousing in trunk) |
44B |
| W6 |
Ground (left wheelhousing in trunk) |
40B |
| W6 |
Ground (left wheelhousing in trunk) |
15G |
| W7 |
Ground (right wheelhousing in trunk) |
24G |
| W9 |
Ground (at left headlamp unit) |
2E |
| X18/19 |
Trunk lid connector |
40E |
| X18/19 |
Trunk lid connector |
38G |
| X23/7 |
Soft top connector |
42E |
| Z40 |
Stop lamp signal connector sleeve |
39E |
| Z40 |
Stop lamp signal connector sleeve |
42C |
| Z40 |
Stop lamp signal connector sleeve |
32H |
| Z45 |
ATA [EDW] sensor circuit 30 voltage supply connector sleeve |
21H |
| Z45 |
ATA [EDW] sensor circuit 30 voltage supply connector sleeve |
12H |
| Z6/16 |
Soft top ground connector sleeve |
43H |
| Z6/20 |
Trunk lid ground connector sleeve |
40H |
