Reassembly [06/2015 - ]: Procedure

  1. INSTALL COMBINATION METER GLASS

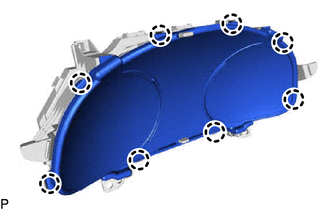

    1. Engage the 8 claws to install the combination meter glass.
      GTY492690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
