Installation [06/2015 - ]: Procedure

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Connect each connector.

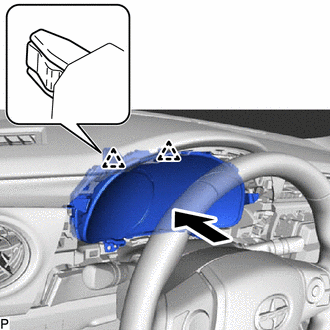

    2. Engage the 2 clips as shown in the illustration.
      GTY492688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the combination meter assembly with the 2 screws.
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 14

  3. INSTALL NO. 1 METER HOOD CLUSTER

    Refer to PROCEDURE - Step 15

  4. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  5. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 17

  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [06/2015 - ]
