Components [06/2015 - ]: Illustration

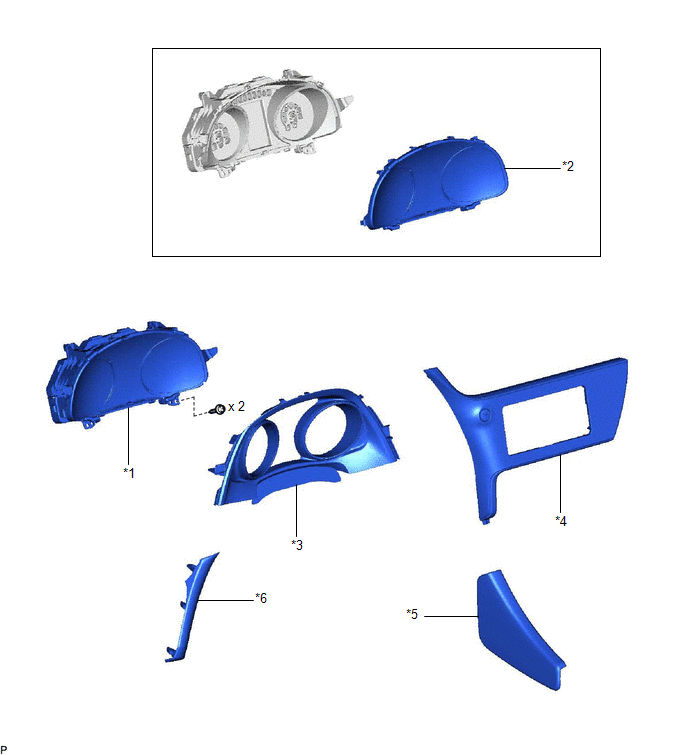

Fig 1: Combination Meter Replacement Components
GTY487649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER ASSEMBLY *2 COMBINATION METER GLASS
*3 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY *4 LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
*5 LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL *6 NO. 1 METER HOOD CLUSTER
