Removal [06/2015 - ]: Procedure

  1. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

    Refer to REMOVAL [06/2015 - ]

  2. REMOVE CLOCK ASSEMBLY
    1. Disconnect the connector.

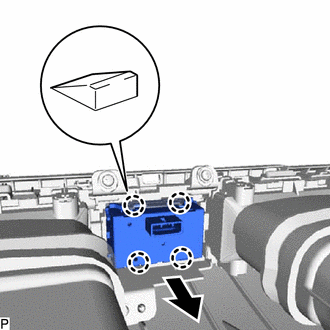

    2. Using a screwdriver, disengage the 4 claws and remove the clock assembly as shown in the illustration.
      GTY492665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
