Installation [06/2015 - ]: Procedure

  1. INSTALL CLOCK ASSEMBLY

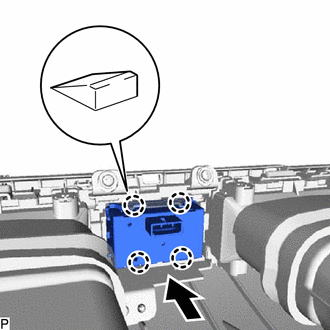

    1. Engage the 4 claws to install the clock assembly as shown in the illustration.
      GTY492663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL UPPER INSTRUMENT PANEL ASSEMBLY

    Refer to INSTALLATION [06/2015 - ]
