Meter / Gauge / Display - Service Information
>>
Clock
>>
Components [06/2015 - ]
>>
Illustration
Components [06/2015 - ]: Illustration

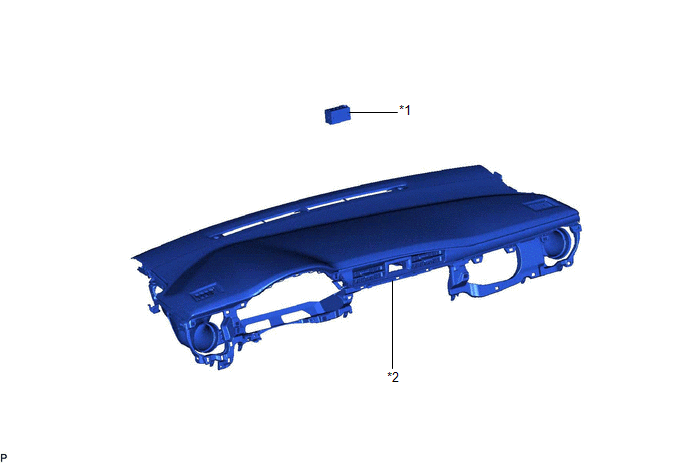

Fig 1: Clock Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CLOCK ASSEMBLY
*2
UPPER INSTRUMENT PANEL ASSEMBLY
