Components Location [06/2015 - ]: Illustration

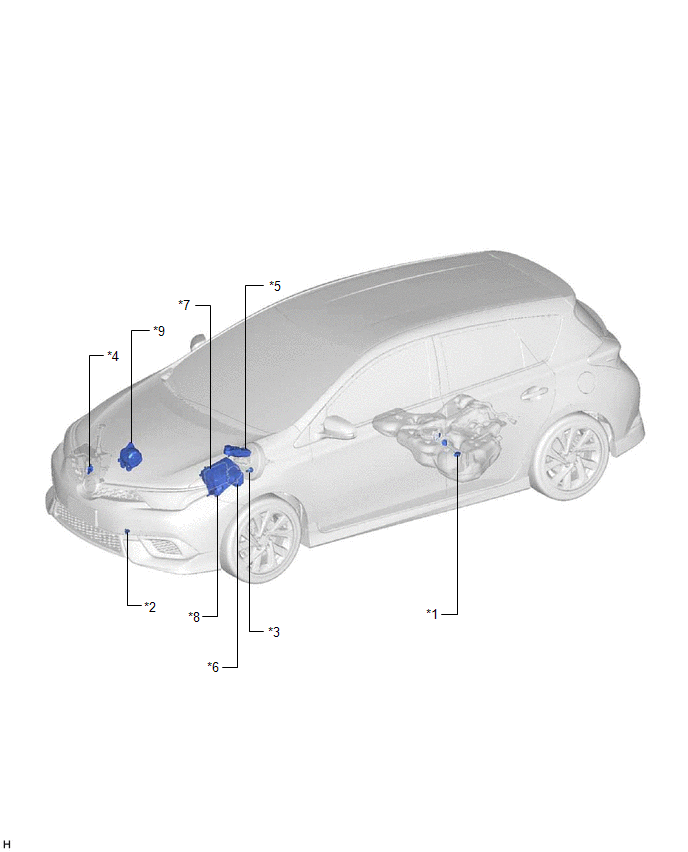

Fig 1: Meter / Gauge System Components Location (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL SENDER GAUGE ASSEMBLY	*2	THERMISTOR ASSEMBLY
*3	VACUUM SWITCH	*4	LEVEL WARNING SWITCH ASSEMBLY
*5	BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH	*6	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU
*7	ECM	*8	ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - TURN&HAZ FUSE - H-LP LH-HI FUSE
*9	GENERATOR ASSEMBLY	-	-

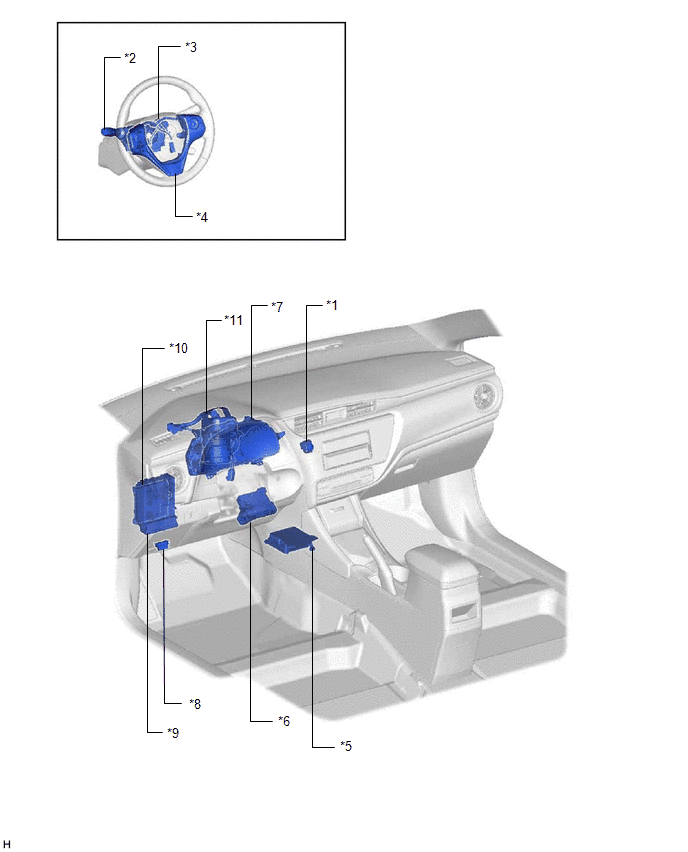

Fig 1: Meter / Gauge System Components Location (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HAZARD WARNING SIGNAL SWITCH ASSEMBLY	*2	HEADLIGHT DIMMER SWITCH ASSEMBLY
*3	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY	*4	STEERING PAD SWITCH ASSEMBLY
*5	AIRBAG SENSOR ASSEMBLY	*6	AIR CONDITIONING AMPLIFIER ASSEMBLY
*7	COMBINATION METER ASSEMBLY	*8	DLC3
*9	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE	*10	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*11	POWER STEERING ECU ASSEMBLY	-	-

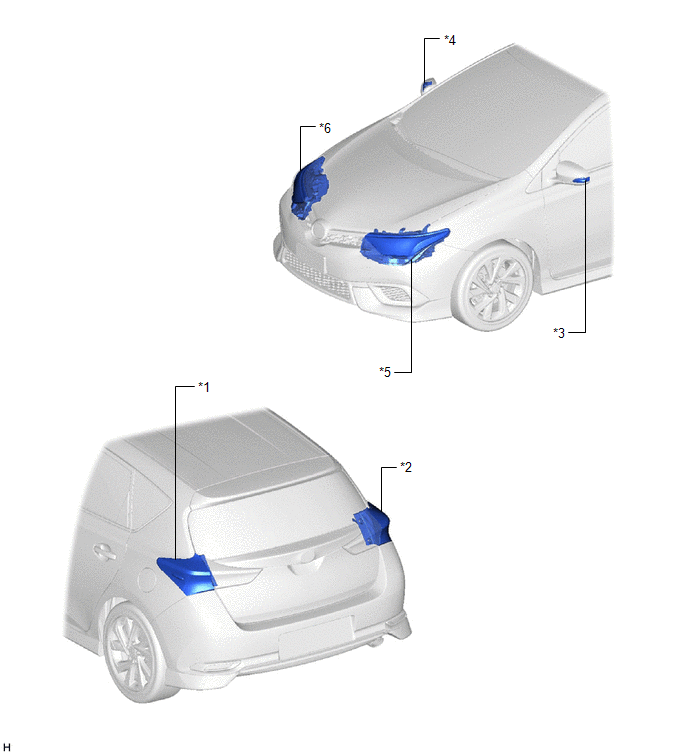

Fig 1: Meter / Gauge System Components Location (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR COMBINATION LIGHT ASSEMBLY LH	*2	REAR COMBINATION LIGHT ASSEMBLY RH
*3	SIDE TURN SIGNAL LIGHT ASSEMBLY LH	*4	SIDE TURN SIGNAL LIGHT ASSEMBLY RH
*5	HEADLIGHT ASSEMBLY LH	*6	HEADLIGHT ASSEMBLY RH

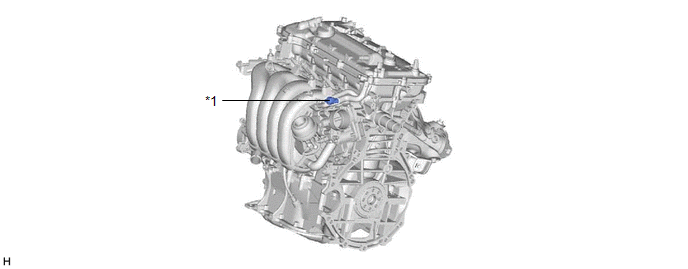

Fig 1: Meter / Gauge System Components Location (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

ENGINE OIL PRESSURE SWITCH ASSEMBLY

-

-
