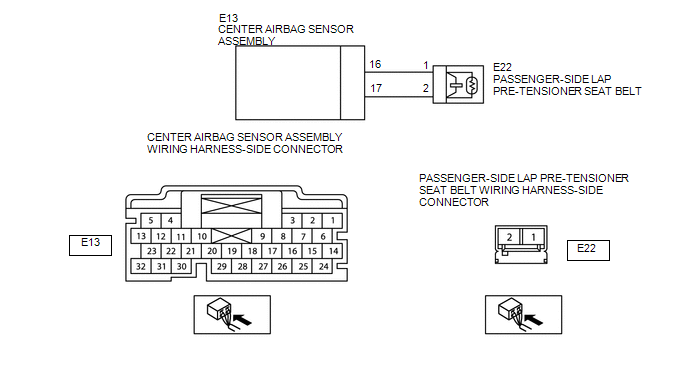

DTC B0072-11: Passenger Seatbelt Pretensioner "A" Deployment Control Circuit Short To Ground; DTC B0072-12: Passenger Seatbelt Pretensioner "A" Deployment Control Circuit Short To Battery; DTC B0072-13: Passenger Seatbelt Pretensioner "A" Deployment Control: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
