Removal [07/2015 - ]: Procedure

  1. REMOVE SHIFT BEZEL

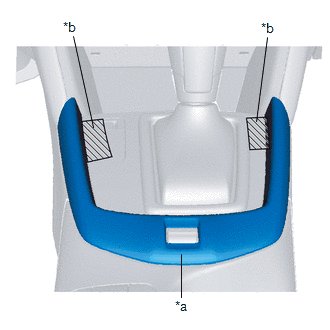

    1. To prevent scratches or damage, affix protective tape to the position shown in the figure.
      GTY485422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a SHIFT BEZEL
      *b PROTECTIVE TAPE

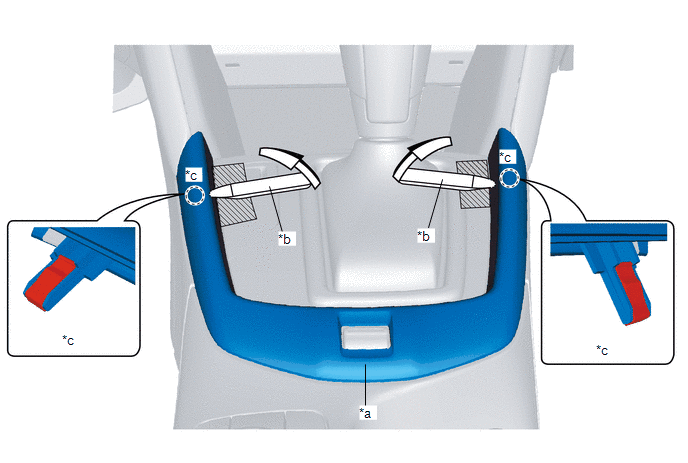

    2. Insert a remover tool into the position shown in the figure, move it in the directions of the arrows and detach the shift panel from the clips.
      GTY485652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a SHIFT BEZEL *b REMOVER TOOL
      *c CLIP - -

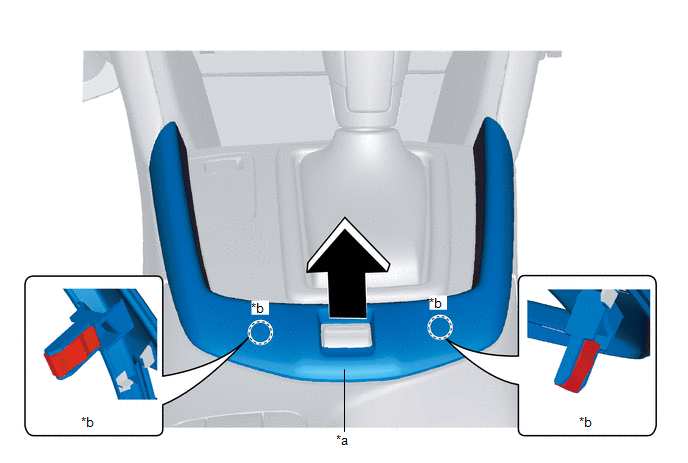

    3. Pull the shift bezel in the direction of the arrow shown in the figure, detach the shift panel from the clips and remove the shift bezel.
      GTY494259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a SHIFT BEZEL *b CLIP
