Removal [07/2015 - ]: Procedure

  1. REMOVE FRONT SCUFF PLATE

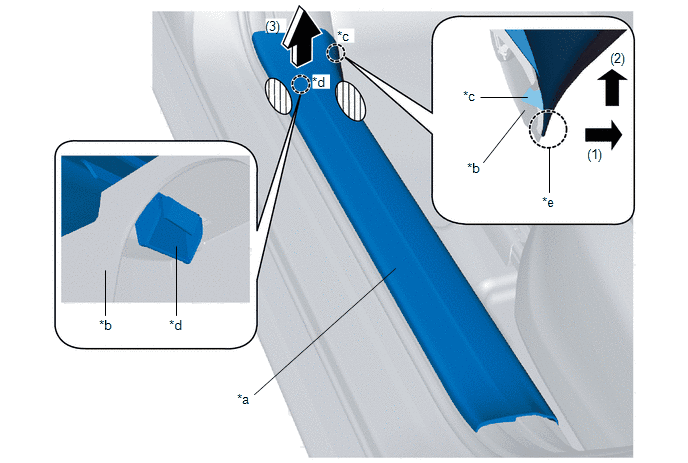

    1. Hold part A shown in the figure, open the front scuff plate in the direction of arrow (1), move it in the direction of arrow (2), and detach tab A of the front scuff plate from the front side trim.
      GTY494160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a FRONT SCUFF PLATE *b FRONT SIDE TRIM
      *c TAB A *d TAB B
      *e AREA A - -
    2. Hold the shaded area shown in the figure, move the front scuff plate in the direction of arrow (3), and detach tab B of the front scuff plate from the front side trim.

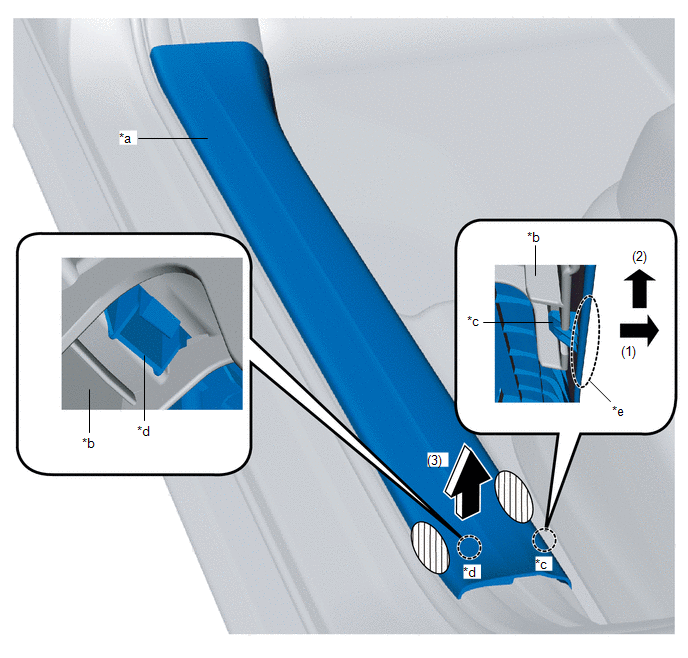

    3. Hold part A shown in the figure, open the front scuff plate in the direction of arrow (1), move it in the direction of arrow (2), and detach tab A of the front scuff plate from the B-pillar lower trim.
      GTY487501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a FRONT SCUFF PLATE *b B-PILLAR LOWER TRIM
      *c TAB A *d TAB B
      *e AREA A - -
    4. Hold the shaded area shown in the figure, move the front scuff plate in the direction of arrow (3), and detach tab B of the front scuff plate from the B-pillar lower trim.

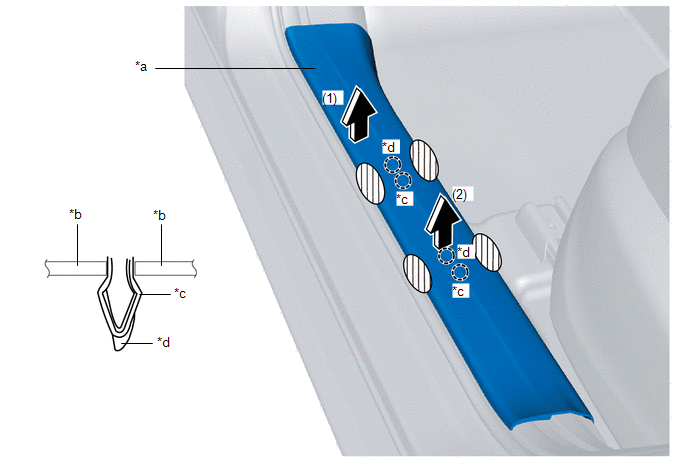

    5. Hold the shaded area shown in the figure, move the front scuff plate in the direction of arrow (1), and detach the clips from the inner panel.
      GTY489654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a FRONT SCUFF PLATE *b INNER PANEL
      *c CLIP *d PIN
    6. Hold the shaded area shown in the figure, move the front scuff plate in the direction of arrow (2), and detach the clips from the inner panel.
    7. Pull out the pins and remove the front scuff plate.
