Removal [07/2015 - ]: Procedure

  1. REMOVE FRONT CONSOLE BOX
    1. Disconnect the negative battery cable.

      Refer to PROCEDURE - Step 1

    2. Remove the following parts:
      1. Center console tray

        See step  1

      2. Shift lever knob (MTX)

        Refer to PROCEDURE - Step 1

      3. Selector lever knob (ATX)

        Refer to REMOVAL [07/2015 - ]

      4. Shift bezel

        See step  1

      5. Upper panel

        See step  1

      6. Shift panel

        See step  1

      7. Console side panel

        See step  1

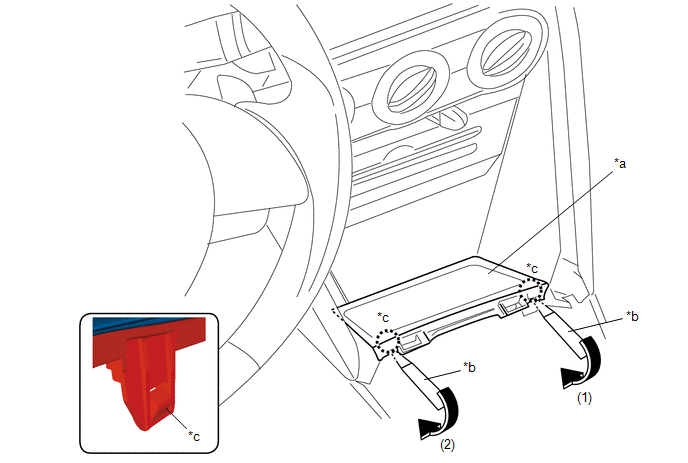

    3. Insert a remover tool in the position indicated by the arrow (1) in the figure and detach clip.
      GTY485860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a FRONT CONSOLE BOX *b REMOVER TOOL
      *c CLIP - -
    4. Insert a remover tool in the position indicated by the arrow (2) in the figure and detach clip.

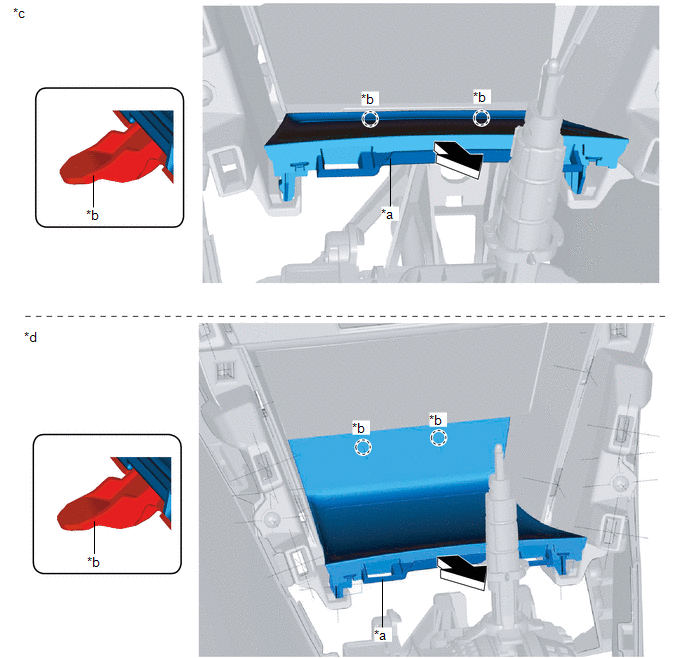

    5. Remove the front console box in the direction of the arrow shown in the figure while detaching guide.
      GTY488939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a FRONT CONSOLE BOX *b GUIDE
      *c WITH DISC PLAYER *d WITHOUT DISC PLAYER
