Removal [07/2015 - ]: Procedure

  1. REMOVE CENTER PANEL
    1. Open the glove compartment.
    2. Affix protective tape to the shaded position shown in the figure.
      NOTE:

      If the remover tool is inserted without affixing protective tape, the passenger-side lower panel may be damaged. Always affix protective tape before inserting the remover tool to prevent damage.

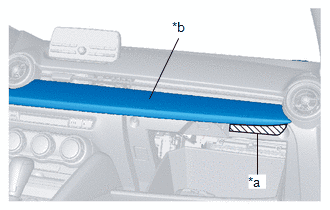

      GTY491198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a PROTECTIVE TAPE
      *b CENTER PANEL
    3. Insert the remover tool into the position shown in the figure and move it in the direction of arrow (1) shown in the figure.

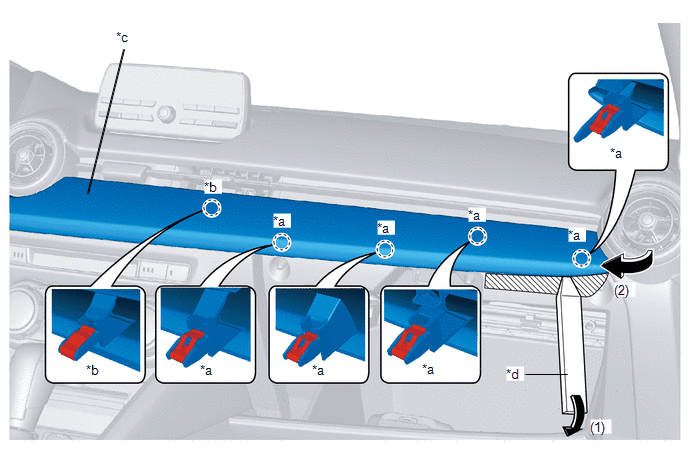

      GTY484486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a CLIP A *b CLIP B
      *c CENTER PANEL *d REMOVER TOOL
    4. Move the center panel in the direction of arrow (2) shown in the figure and detach clips A and B.
    5. Hold the shaded areas shown in the figure with your hands, pull the center panel in the direction of the arrow and detach the clips.

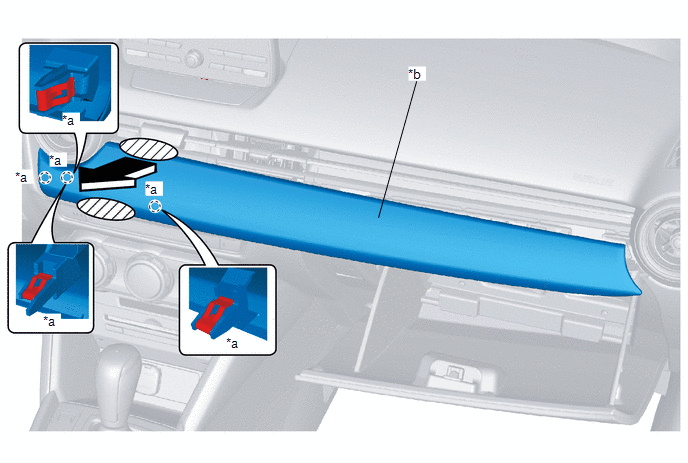

      GTY487262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a CLIP *b CENTER PANEL
    6. Remove the center panel.
