Parts Location [07/2015 - ]: Illustration

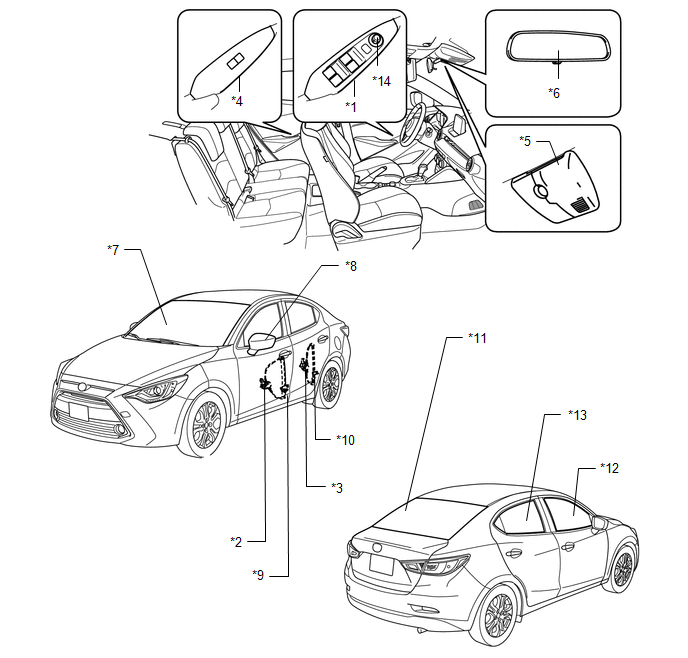

| *1 | POWER WINDOW MASTER SWITCH | *2 | POWER WINDOW REGULATOR MOTOR (for Front Door) |
| *3 | POWER WINDOW REGULATOR MOTOR (for Rear Door) | *4 | REAR POWER WINDOW SWITCH |
| *5 | SENSOR COVER | *6 | INNER REAR VIEW MIRROR |
| *7 | WINDSHIELD GLASS | *8 | OUTER REAR VIEW MIRROR |
| *9 | POWER WINDOW REGULATOR (for Front) | *10 | POWER WINDOW REGULATOR (for Rear) |
| *11 | REAR WINDOW GLASS | *12 | FRONT DOOR GLASS |
| *13 | REAR DOOR GLASS | *14 | OUTER MIRROR SWITCH |

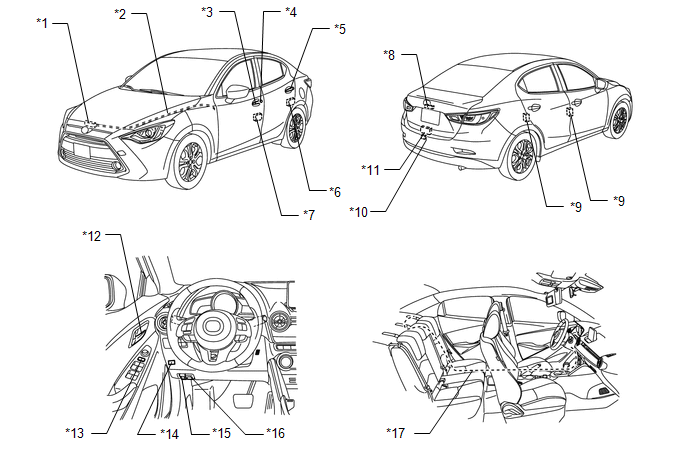

| *1 | HOOD LACTH | *2 | HOOD LOCK CONTROL CABLE |
| *3 | FRONT OUTER HANDLE | *4 | FRONT DOOR KEY CYLINDER |
| *5 | REAR OUTER HANDLE | *6 | REAR DOOR LOCK |
| *7 | FRONT DOOR LOCK | *8 | TRUNK LID OPENER SWITCH (VEHICLE INTERIOR) |
| *9 | DOOR LOCK STRIKER | *10 | TRUNK LID LOCK STRIKER |
| *11 | LUGGAGE COMPARTMENT DOOR LOCK | *12 | INNER HANDLE |
| *13 | DOOR LOCK CONTROL SWITCH | *14 | TRUNK LID OPENER SWITCH (VEHICLE EXTERIOR) |
| *15 | FUEL-FILLER LID OPENER AND LEVER | *16 | HOOD LOCK CONTROL CABLE ASSEMBLY |
| *17 | FUEL LID LOCK CONTROL CABLE ASSEMBLY | - | - |
| *1 | SIDE TURN SIGNAL LIGHT ASSEMBLY | *2 | HEADLIGHT ASSEMBLY |
| *3 | BACK-UP LIGHT SWITCH | *4 | REAR COMBINATION LIGHT ASSEMBLY |
| *5 | LICENSE PLATE LIGHT ASSEMBLY | *6 | HIGH MOUNT STOP LIGHT ASSEMBLY |
| *7 | REAR LIGHT ASSEMBLY | - | - |
| *1 | HAZARD WARNING SWITCH | *2 | HEADLIGHT DIMMER SWITCH |
| *3 | PERSONAL LIGHT | *4 | STEERING ANGLE SENSOR |
| *5 | LUGGAGE COMPARTMENT LIGHT BULB |
| *1 | COMBINATION METER | *2 | HAZARD FLASHER |
| *3 | HORN | *4 | FUEL SENDER GAUGE ASSEMBLY |

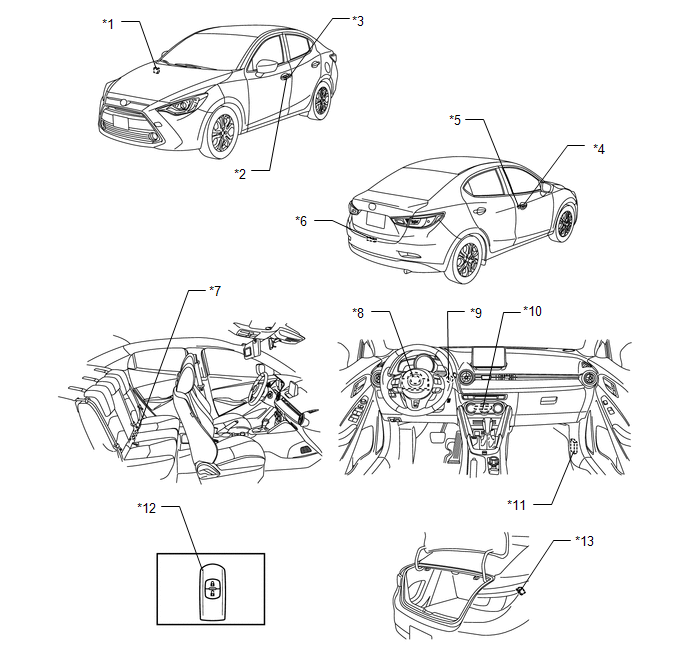

| *1 | WIRELESS DOOR LOCK BUZZER | *2 | ELECTRICAL KEY OSCILLATOR (EXTERIOR, LF) |
| *3 | ENTRY LOCK AND UNLOCK SWITCH (LF) | *4 | ELECTRICAL KEY OSCILLATOR (EXTERIOR, RF) |
| *5 | ENTRY LOCK AND UNLOCK SWITCH (RF) | *6 | ELECTRICAL KEY OSCILLATOR (EXTERIOR, REAR) |
| *7 | ELECTRICAL KEY OSCILLATOR (INTERIOR, REAR) | *8 | ENGINE STOP AND START ECU |
| *9 | ENGINE SWITCH | *10 | ELECTRICAL KEY OSCILLATOR (INTERIOR, FRONT) |
| *11 | CERTIFICATION ECU | *12 | DOOR CONTROL TRANSMITTER |
| *13 | DOOR LOCK RECEIVER | - | - |
