DTC B11EA-11: Right Rear Door Ajar Switch circuit short to ground [07/2015 - ]: Wiring Diagram

w/o Smart Key System

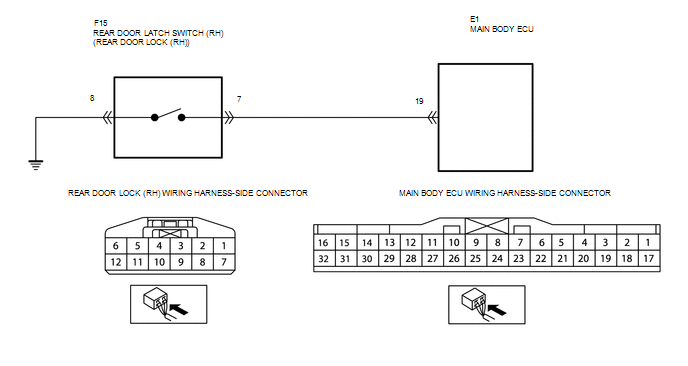

Fig 1: Right Rear Door Ajar Switch Circuit With Connector End View
GTY487674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Smart Key System

Fig 2: Right Rear Door Ajar Switch Circuit With Connector End View
GTY487672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
