DTC B1172-11: Drivers Door Interior Unlock Switch circuit short to ground [07/2015 - ]: Wiring Diagram

w/o Smart Key System

Fig 1: Drivers Door Interior Unlock Switch Circuit Wiring Diagram With Connector End View
GTY489792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Smart Key System

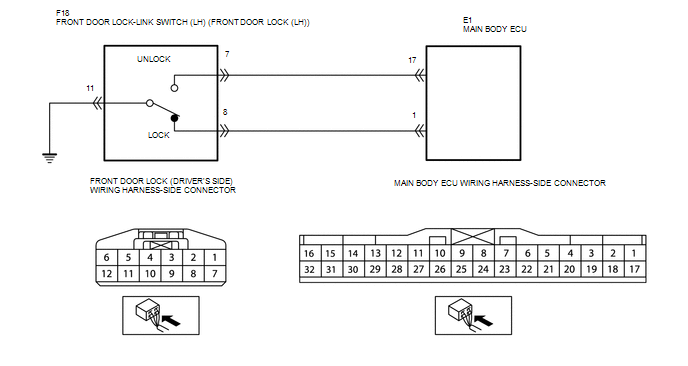

Fig 2: Drivers Door Interior Unlock Switch Circuit Wiring Diagram With Connector End View
GTY489791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
