Driver-Side Door Glass Reverse Opens During Auto-Close (Manual-Close) Operation (Mis Reverse Open) [07/2015 - ]: Procedure

INSPECT MALFUNCTION SYMPTOM.

Does the malfunction symptom occur only under the following special conditions?:

Driving over railroad tracks.
Driving on bumpy roads.
Opening/closing the door.

Result

Result
Yes
No

Result: 2

Yes

THE SYSTEM IS NORMAL.

(Explain to the customer that this does not indicate a malfunction because the system is designed to reverse the door glass while it is closing if it receives vibration when the vehicle is crossing railroad tracks, driving on a bumpy road, or when the door is opened/closed.)

Result: 1

See step 2

INSPECT ACRYLIC DOOR VISOR INSTALLATION CONDITION.

Is the acrylic door visor normal?

Result

Result
Yes
No

Result: 2

See step 15

Result: 1

Yes

See step 3

INSPECT DOOR GLASS CLOSING SPEED.

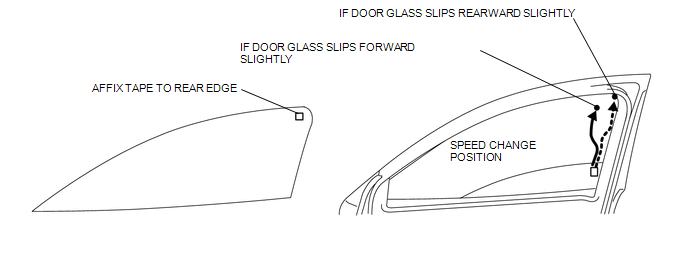

Affix tape to the rear edge of the door glass as shown in the figure for placing marks. (to facilitate seeing the door glass movement)
Start the engine and idle it (to ensure a stabilized operational voltage).

Does the door glass hesitate only once while its closing?

Result

Result
Yes
No

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Result: 2

Yes

See step 14

Result: 1

See step 4

REINSPECT DOOR GLASS CLOSING SPEED.

Does the door glass hesitate periodically while it is closing?

Result

Result
Yes
No

Result: 1

Yes

See step 13

Result: 2

See step 8

INSPECT GLASS RUN CHANNEL AND DOOR GLASS SLIDING SURFACE.

Visually inspect the sliding surface of the glass run channel and door glass.

Is there dirt, foreign matter, or roughness on the sliding surface of the glass run channel and door glass?

Result

Result
Yes
No

Result: 2

Yes

See step 12

Result: 1

See step 6

INSPECT TIGHTENING OF DOOR GLASS TO CARRIER PLATE.

Is it normal?

Result

Result
Yes
No

Result: 2

See step 11

Result: 1

Yes

See step 7

INSPECT CONDITION OF GLASS RUN CHANNEL AND DOOR GLASS.

Is it normal?

Result

Result
Yes
No

Result: 2

See step 10

Result: 1

Yes

See step 8

INSPECT DOOR GLASS CLOSING SPEED.

Does the door glass hesitate at any location?

Result

Result
Yes
No

Result: 2

TROUBLESHOOTING COMPLETED.

Result: 1

Yes

See step 9

REPEAT THE INSPECTION FROM STEP 3.
Result

Proceed to

NEXT

Result: 2

NEXT

See step 3

ASSEMBLE THE GLASS RUN CHANNEL AND DOOR GLASS SECURELY, AND REINSPECT

If the malfunction has not been resolved, repeat the inspection from Step 3.

Result

Proceed to
NEXT

Result: 1

See step 3

AFTER TIGHTENING CORRECTLY, REINSPECT.

If the malfunction has not been resolved, repeat the inspection from Step 3.

Result

Proceed to
NEXT

Result: 1

See step 3

DIRT ON THE SLIDING SURFACE OF THE GLASS RUN CHANNEL AND DOOR GLASS:
- Clean the glass run channel and door glass.
Object is caught between glass run channel and door glass:
- Remove the object.
Roughness on the sliding surface (rubber surface):
- Replace the glass run channel.
After performing one of the above actions, reinspect. If the malfunction has not been resolved, repeat the inspection from Step 3.

Result

Proceed to

NEXT

Result: 1

NEXT

See step 3

REPLACE THE POWER WINDOW MOTOR, THEN GO TO STEP 8.

Refer to REMOVAL [07/2015 - ]

Refer to REMOVAL [07/2015 - ]

Result

Proceed to
NEXT

Result: 1

See step 8

MARK THE POINT WHERE THE DOOR GLASS CLOSING SPEED CHANGED, THEN GO TO STEP 5.
Result

Proceed to

NEXT

Result: 1

NEXT

See step 5
INSTALL THE SIDE VISOR PROPERLY, THEN GO TO STEP 8.
Result

Proceed to

NEXT

Result: 1

NEXT

See step 8
