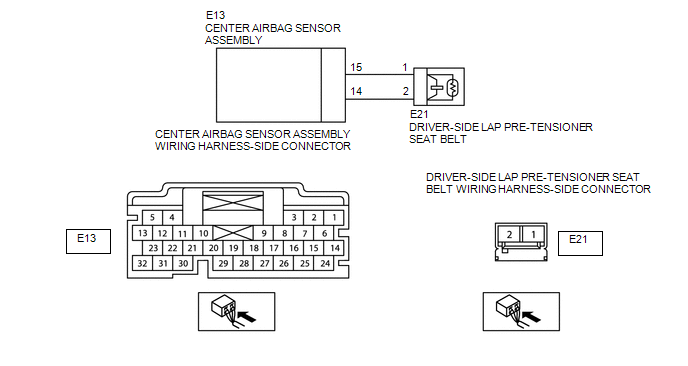

DTC B1228-11: Driver Seatbelt Lap Pretensioner Deployment Control Circuit Short To Ground; DTC B1228-12: Driver Seatbelt Lap Pretensioner Deployment Control Circuit Short To Battery; DTC B1228-13: Driver Seatbelt Lap Pretensioner Deployment Control circuit o: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
